OIL PUMP
DR125SE 1995 (S) FRANCE GERMANY (E04 E22)

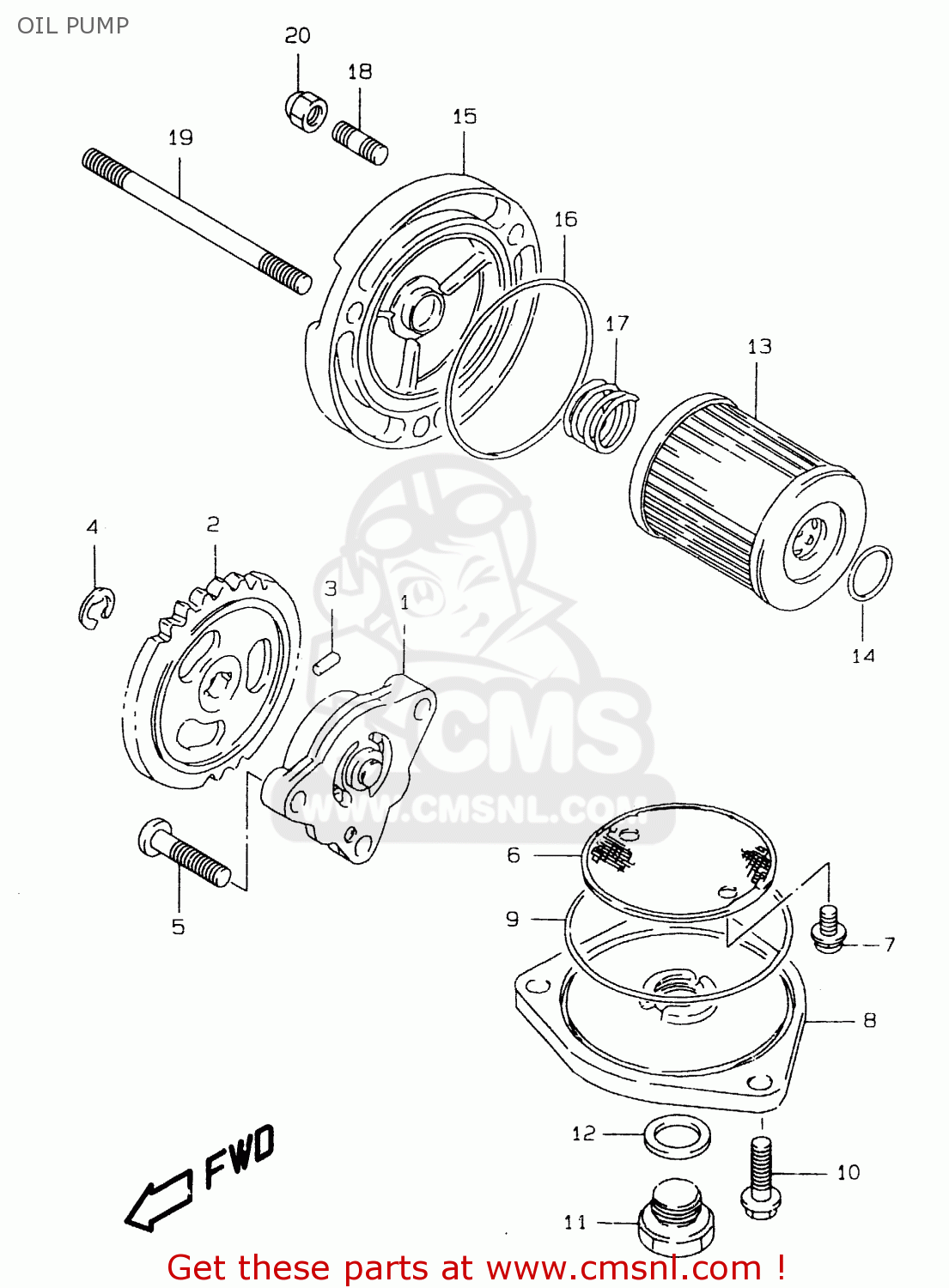

Oil pump diagram DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
OIL PUMP DR125SE 1995 (S) FRANCE GERMANY (E04 E22)
×
prices are in EUR
ref
part #
description
quantity
1
1640042A01
ref: 1
PUMP ASSY,ENGINE OIL
€ 100.50
2
1633142A00
ref: 2
GEAR,OIL PUMP DRIVEN (N
€ 24.00
3
0926102008
ref: 3
PIN(2.5X11.8)
€ 1.50
4
0833211063
ref: 4
E.RING
€ 2.00
5
0211206253
ref: 5
SCREW
€ 1.50
6
1652005202
ref: 6
STRAINER,ENGINE OIL
€ 4.50
7
0211275123
ref: 7
SCREW
€ 2.50
8
1652305200
ref: 8
CAP,OIL STRAINER
€ 9.00
9
0928060005
ref: 9
O RING(D:2.4,ID:60.5)
€ 3.00
10
0154706203
ref: 10
SCREW
€ 2.50
11
0924714001
ref: 11
~E.NO.115601
PLUG
€ 5.00
11
0924714026
ref: 11
E.NO.115602~
PLUG(14X12)
€ 3.50
12
0916814004
ref: 12
MODEL R
GASKET(14X19.2X2) (NAS)
€ 2.50
12
0916814002
ref: 12
MODEL S/T/V/W/X
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
13
1651025C00
ref: 13
<-16510-24501
FILTER ASSY,ENGINE OIL
€ 8.50
14
0928013004
ref: 14
O RING(D:1.9,ID:13)
€ 2.50
15
1651242A20
ref: 15
CAP,OIL FILTER
€ 21.50
16
0928054001
ref: 16
O RING(D:2.4,ID:52.6)
€ 4.00
17
0944018002
ref: 17
SPRING
€ 1.50
18
0142106128
ref: 18
STUD 6X12
€ 1.50
19
0910806108
ref: 19
BOLT,STUD
€ 4.50
20
0831310063
ref: 20
NUT
€ 2.00
