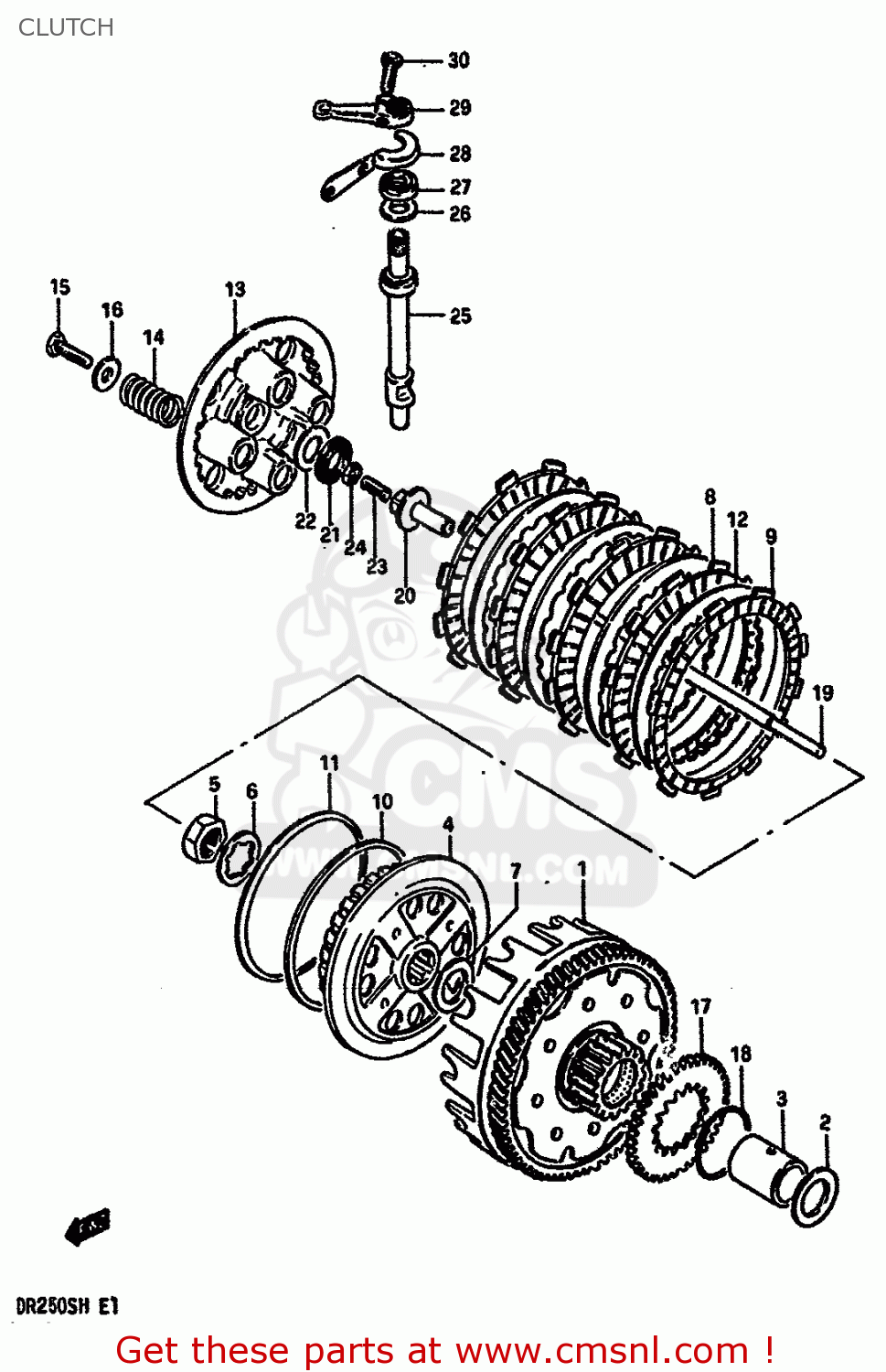

CLUTCH

ref

part #

description

quantity

1

2120038200
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 263.00

2

0821122363
ref: 2

WASHER

€ 2.50

3

0918022024
ref: 3

SPACER(22X28X37.5)

€ 16.50

4

2141138200
ref: 4

HUB,CLUTCH SLEEVE

€ 97.50

5

0914022005
ref: 5

NUT

€ 4.00

6

0916722010
ref: 6

WASHER,LOCK

€ 4.00

7

0821122363
ref: 7

WASHER

€ 2.50

8

2144137400
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

9

2144237400
ref: 9

PLATE,CLUTCH DRIVE

€ 11.50

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0916400004
ref: 11

WASHER

€ 9.00

12

2145137400
ref: 12

PLATE,CLUTCH DRIVEN

€ 6.50

13

2146238200
ref: 13

DISC,CLUTCH PRESSURE

€ 37.00

14

0944020010
ref: 14

SPRING

€ 5.00

15

0110706166
ref: 15

BOLT

€ 2.00

16

0916006020
ref: 16

WASHER

€ 2.00

17

1632138200
ref: 17

GEAR,OIL PUMP DRIVE

€ 16.00

18

0938050001
ref: 18

CIRCLIP

€ 2.50

19

2311038201
ref: 19

ROD,CLUTCH PUSH

€ 14.50

20

2312138200
ref: 20

PIECE,CLUTCH PUSH

€ 17.00

21

0926315003
ref: 21

BEARING(15X28X2)

€ 7.00

22

0916015015
ref: 22

WASHER

€ 4.00

23

0913406010
ref: 23

SCREW(6X25)

€ 3.00

24

0831022067
ref: 24

NUT 6MM

€ 2.50

25

2312238200
ref: 25

CAMSHAFT,CLUTCH RELEASE

€ 60.50

26

0916014003
ref: 26

WASHER (14.2X22X1)

€ 1.00

27

0928512002
ref: 27

OIL SEAL

€ 7.00

28

2311738300
ref: 28

PLATE,RELEASE CAM SHAFT

€ 0.00

29

2327145400
ref: 29

ARM,CLUTCH RELEASE

€ 31.50

30

0110706207
ref: 30

BOLT

€ 2.00
