WIRING HARNESS

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

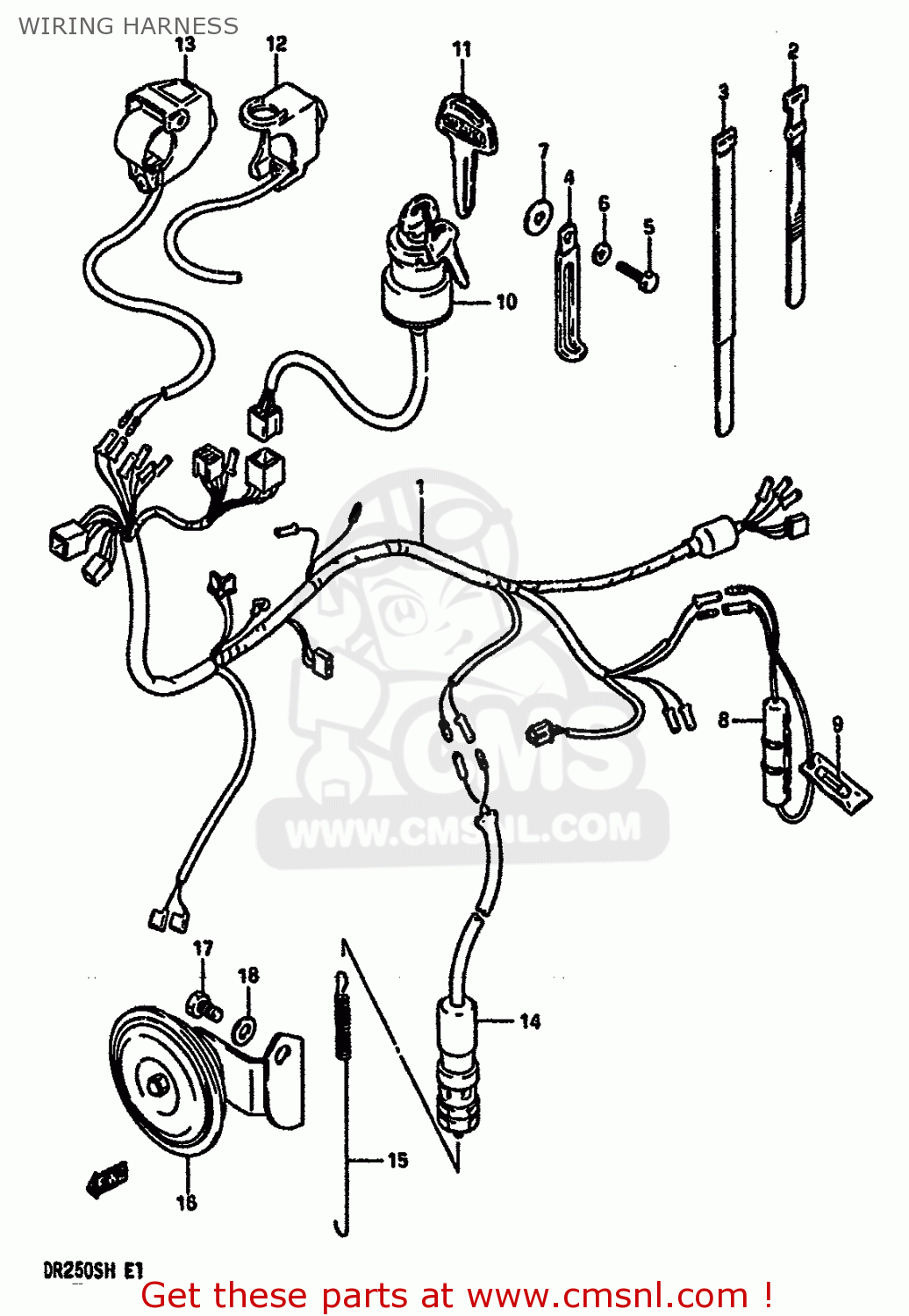

Wiring harness diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

WIRING HARNESS DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
WIRING HARNESS DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
WIRING HARNESS DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3661038211
ref: 1-1
E1,E6,E24,E41
HARNESS,WIRING
€ 0.00
1-2
3661038201
ref: 1-2
E2,E4,E15,E18,E21,E2
WIRING HARNESS
3661038201
€ 99.50
2
0940712402
ref: 2
CLAMP(L:120)
0940712402
€ 3.00
3-1
0940711301
ref: 3-1
CLAMP L:110
€ 6.00
3-2
0940718301
ref: 3-2
CLAMP
0940718301
€ 6.00
3-3
0940725301
ref: 3-3
CLAMP(L:250)
0940725301
€ 4.50
4-1
0940406401
ref: 4-1
CLAMP L:35
0940406401
€ 2.50
4-2
0940406402
ref: 4-2
CLAMP
€ 2.50
4-3
0940408404
ref: 4-3
CLAMP
€ 3.00
5
0110706165
ref: 5
BOLT 6X16
0110706165
€ 2.00
6
0832221064
ref: 6
WASHER
0832221064
€ 2.00
7
0916006006
ref: 7
WASHER
0916006006
€ 2.00
8
3674027200
ref: 8
BOX ASSEMBLY,FUSE
€ 11.00
9
0948115001
ref: 9
FUSE(15A)
0948115001
€ 3.00
10
3711037172
ref: 10
SWITCH ASSY,IGNITION
3711037172
€ 81.00
11
3714519710
ref: 11
OPT
KEY,BLANK
3714519710
€ 13.00
12
3783038200
ref: 12
MODEL E
SWITCH ASSY,ENGINE STOP
3783038200
€ 72.00
13
3783013A00
ref: 13
MODEL F/G/H
SWITCH ASSY,ENGINE STOP
3783013A00
€ 43.00
14
3774048071
ref: 14
SWITCH ASSY,STOP LAMP
3774048071
€ 22.00
15
0944306019
ref: 15
SPRING
0944306019
€ 3.50
16-1
3850038211
ref: 16-1
E1,E6,E24,E41
HORN ASSEMBLY
€ 0.00
16-2
3850038282
ref: 16-2
E2,E4,E18,E21,E22,E2
HORN ASSY
3850038282
€ 55.50
16-3
3850038291
ref: 16-3
E15,E39
HORN ASSY
€ 0.00
17
0110706104
ref: 17
BOLT
€ 2.00
18
0832221064
ref: 18
WASHER
0832221064
€ 2.00
