CYLINDER HEAD

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

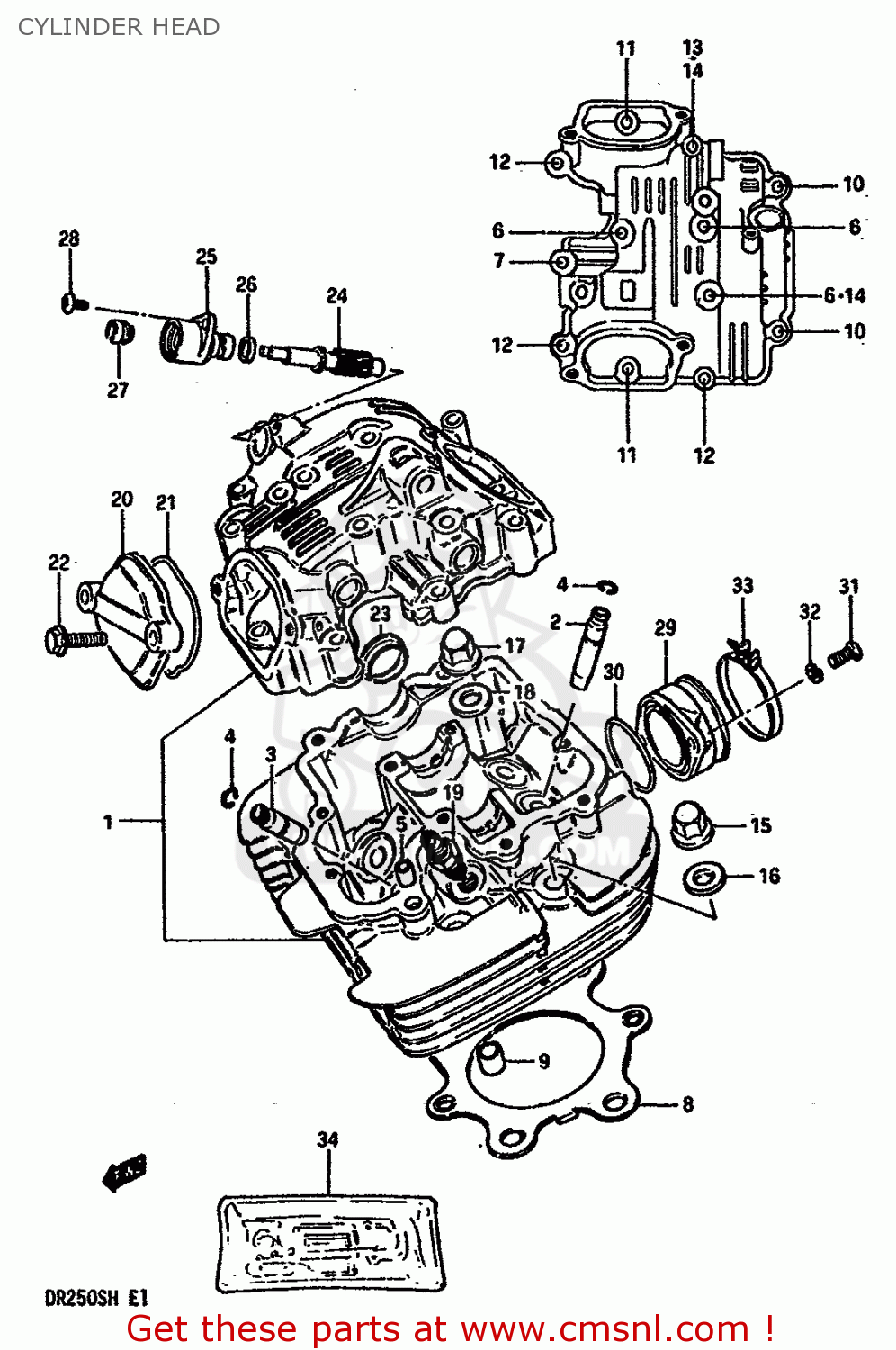

Cylinder head diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

CYLINDER HEAD DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
CYLINDER HEAD DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
CYLINDER HEAD DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1110038222
ref: 1-1
MODEL E
HEAD ASSY,CYLINDER
€ 839.00
1-2
1110038231
ref: 1-2
MODEL F/G/H
HEAD,CYLINDER
€ 591.50
2
1111538270
ref: 2
GUIDE,INTAKE VALVE
1111538270
€ 25.50
3
1111505270
ref: 3
GUIDE,VALVE
1111505270
€ 18.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
0151706605
ref: 6
BOLT ,6X60
€ 2.50
7
0151706305
ref: 7
BOLT 6X30
€ 2.50
8
1114138200
ref: 8
GASKET,CYLINDER HEAD (NAS)
1114138200
€ 37.50
9
0920613001
ref: 9
PIN
0920613001
€ 2.50
10
0910306053
ref: 10
BOLT
€ 4.50
11
0151706305
ref: 11
BOLT 6X30
€ 2.50
12
0151706455
ref: 12
BOLT (6X45)
€ 2.50
13
0151706605
ref: 13
BOLT ,6X60
€ 2.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
15
0915910033
ref: 15
NUT
€ 6.00
16
0916010060
ref: 16
WASHER (10.5X22X2.3)
0916010060
€ 2.50
17
0915910026
ref: 17
NUT
0915910026
€ 6.00
18
0916810017
ref: 18
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
19-1
0948200144
ref: 19-1
SPARK PLUG D8EA
0948200144
€ 3.50
19-2
0948200145
ref: 19-2
SPARK PLUG X24ES-U
€ 3.50
19-3
0948200149
ref: 19-3
E2,E4,E6,E15,E18,E21
SPARK PLUG DR8ES-L
0948200149
€ 3.50
19-4
0948200223
ref: 19-4
E2,E4,E6,E15,E18,E21
PLUG,SPARK(X24ESR-U)
€ 3.50
20-1
1117538210
ref: 20-1
MODEL E
CAP,INSPECTION
€ 23.50
20-2
1117538230
ref: 20-2
MODEL F/G/H
CAP,INSPECTION
€ 23.50
21
0928055003
ref: 21
O RING(D:2.4,ID:23)
0928055003
€ 4.50
22
0151706254
ref: 22
BOLT
€ 2.50
23
0924130004
ref: 23
PLUG(OD:30)
0924130004
€ 6.50
24
2643137401
ref: 24
GEAR,TACHOMETER DRIVEN
2643137401
€ 35.00
25
2644149000
ref: 25
SLEEVE,TACHOMETER DRIVE GEAR
2644149000
€ 18.00
26
2645145000A
ref: 26
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
27
0928905002
ref: 27
SEAL,OIL(5X12X8)
0928905002
€ 11.00
28
0912805101
ref: 28
SCREW(5X12)
0912805101
€ 1.50
29
1311038200
ref: 29
PIPE,INTAKE
1311038200
€ 38.50
30
0928040003
ref: 30
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
31
0211206167
ref: 31
SCREW
0211206167
€ 2.50
32
0832121067
ref: 32
WASHER,LOCK
0832121067
€ 2.50
33
0940252208
ref: 33
CLAMP
0940252208
€ 5.50
34
1140038813
ref: 34
OPT
GASKET SET (MCA)
1140038813
€ 102.00
