FUEL TANK (MODEL F/G/H)

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

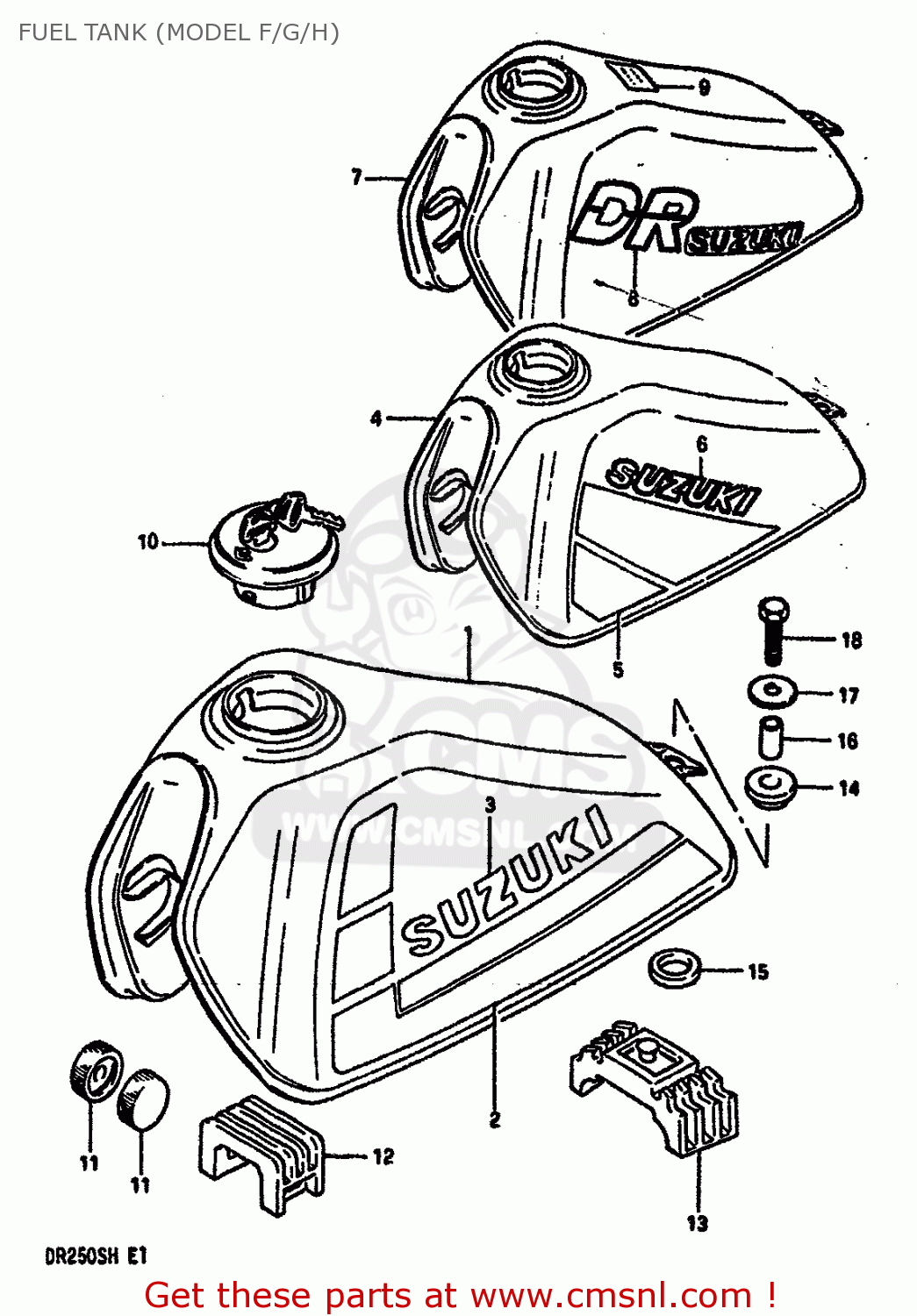

Fuel tank (model f/g/h) diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

FUEL TANK (MODEL F/G/H) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FUEL TANK (MODEL F/G/H) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FUEL TANK (MODEL F/G/H) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
491003824021C
ref: 1-1
MODEL F
TANK ASSY,FUEL (BLACK)
€ 250.50
1-2
491003824014C
ref: 1-2
MODEL F
TANK ASSY,FUEL (RED)
€ 250.50
1-3
491003824019F
ref: 1-3
MODEL F
TANK ASSY,FUEL (BLUE)
€ 250.50
1-4
4910038240163
ref: 1-4
MODEL F
TANK ASSY,FUEL (YELLOW)
€ 250.50
1-5
491003824010V
ref: 1-5
MODEL F
TANK ASSY,FUEL (WHITE)
€ 250.50
2-1
68110382607PV
ref: 2-1
MODEL F,FOR 21C
TAPE SET,FUEL TANK
€ 0.00
2-2
68110382607FW
ref: 2-2
MODEL F,FOR 14C
TAPE SET,FUEL TANK
€ 0.00
2-3
681103826088V
ref: 2-3
MODEL F,FOR 19F
TAPE SET,FUEL TANK
€ 0.00
2-4
681103826067H
ref: 2-4
MODEL F,FOR 163,10V
TAPE SET,FUEL TANK
€ 0.00
3-1
6811143400064
ref: 3-1
MODEL F,FOR 21C,14C,
EMBLEM
6811143400064
€ 10.00
3-2
6811143400019
ref: 3-2
MODEL F,FOR 163,10V
EMBLEM
6811143400019
€ 9.50
4-1
491003891021C
ref: 4-1
MODEL G
TANK ASSY,FUEL (BLACK)
€ 250.50
4-2
491003891014C
ref: 4-2
MODEL G
TANK ASSY,FUEL (RED)
€ 250.50
4-3
491003891019F
ref: 4-3
MODEL G
TANK ASSY,FUEL (BLUE)
€ 0.00
4-4
4910038910163
ref: 4-4
MODEL G
TANK ASSY,FUEL (YELLOW)
4910038910163
€ 250.50
4-5
491003891010V
ref: 4-5
MODEL G
TANK ASSY,FUEL (WHITE)
491003891010V
€ 250.50
5-1
68110389108AH
ref: 5-1
MODEL G,FOR 21C,14C,
TAPE SET,FUEL TANK
€ 0.00
5-2
68110389107CL
ref: 5-2
MODEL G,FOR 163,10V
TAPE SET,FUEL TANK
€ 0.00
6-1
6811132410064
ref: 6-1
MODEL G,FOR 21C,14C,
EMBLEM,FUEL TANK
6811132410064
€ 7.00
6-2
6811132410019
ref: 6-2
MODEL G,FOR 163,10V
EMBLEM,FUEL TANK
€ 10.50
7-1
491003896014L
ref: 7-1
MODEL H
TANK ASSY,FUEL (WHITE)
491003896014L
€ 425.00
7-2
491003896021C
ref: 7-2
MODEL H
TANK ASSY,FUEL (BLACK)
€ 425.00
7-3
491003896034S
ref: 7-3
MODEL H
TANK ASSY, FUEL (BLUE)
€ 425.00
8-1
6811042A107MS
ref: 8-1
MODEL H,FOR 14L
TAPE SET,FUEL TANK
€ 0.00
8-2
6811042A1090J
ref: 8-2
MODEL H,FOR 346
TAPE SET,FUEL TANK
€ 0.00
8-3
6811042A109DK
ref: 8-3
MODEL H,FOR 21C
TAPE SET,FUEL TANK
€ 0.00
9
8693273060
ref: 9
MODEL H E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
10
4420030516KEY
ref: 10
CAP SET,FUEL TANK
4420030516KEY
€ 112.00
11
0932910016
ref: 11
CUSHION
0932910016
€ 3.00
12
4454138200
ref: 12
CUSHION,TANK UPR FR
4454138200
€ 6.00
13
4454238200
ref: 13
CUSHION,FUEL TANK,REAR
€ 11.50
14
0932012010
ref: 14
CUSHION
0932012010
€ 3.00
15
0932012023
ref: 15
CUSHION
0932012023
€ 2.50
16
0918008067
ref: 16
SPACER(8.5X12X19)
0918008067
€ 2.50
17
0916008002
ref: 17
WASHER (8.5X29X1.6)
0916008002
€ 2.00
18
0110708307
ref: 18
BOLT
€ 2.50
