FRAME COVER (MODEL E)

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

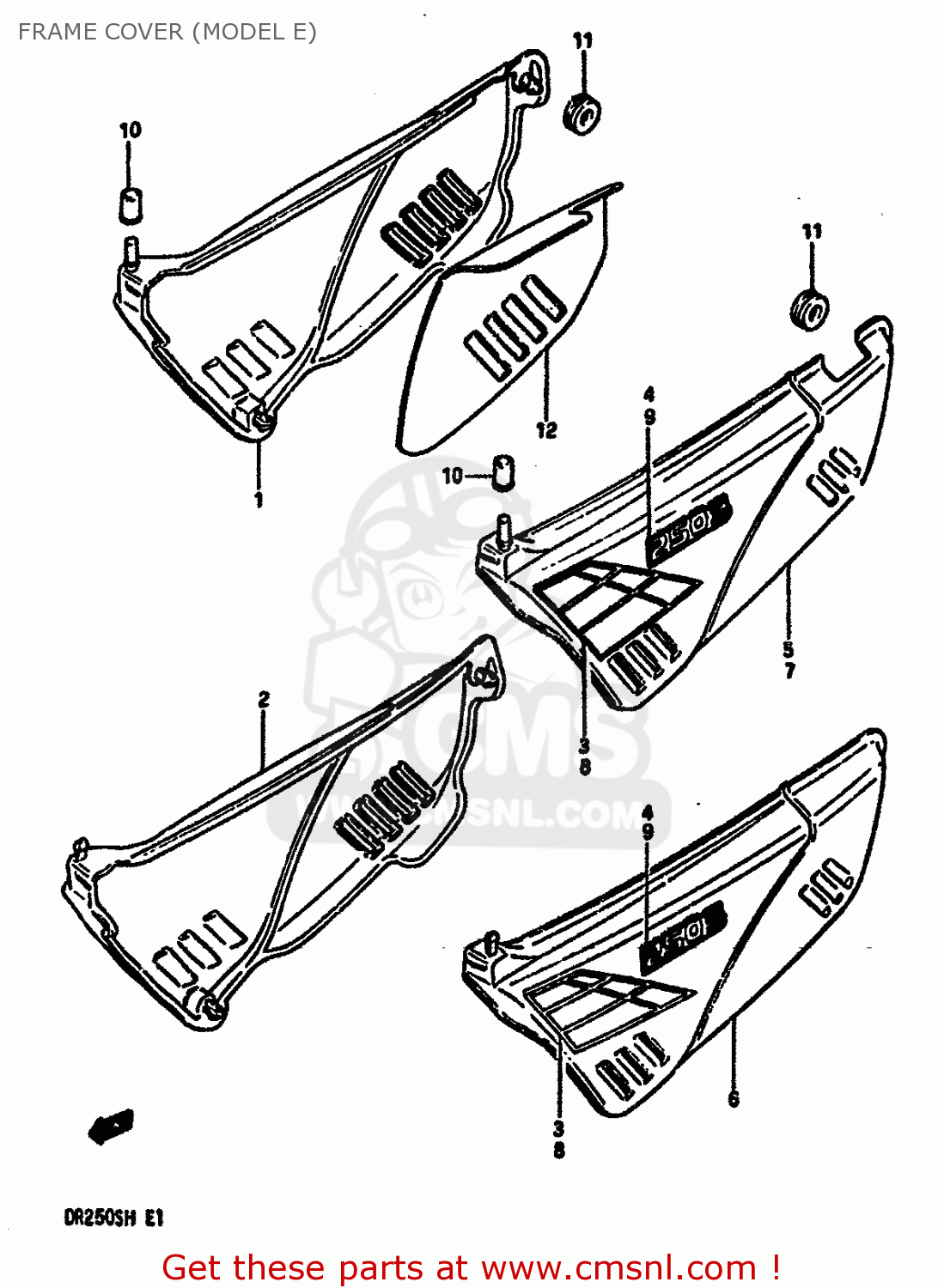

Frame cover (model e) diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

FRAME COVER (MODEL E) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FRAME COVER (MODEL E) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FRAME COVER (MODEL E) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4711138212019
ref: 1-1
COVER,FRAME RH (BLACK)
€ 67.00
1-2
471113821214C
ref: 1-2
COVER,FRAME RH (RED)
€ 67.00
1-3
471113821205K
ref: 1-3
COVER,FRAME (BLUE)
€ 67.00
1-4
4711138212163
ref: 1-4
COVER,FRAME RH
€ 67.00
1-5
471113821210V
ref: 1-5
COVER,FRAME RH (WHITE)
€ 67.00
2-1
4711138202019
ref: 2-1
E22
COVER,FRAME RH (BLACK)
€ 33.00
2-2
471113820214C
ref: 2-2
E22
COVER,FRAME RH (RED)
€ 33.00
2-3
471113820205K
ref: 2-3
E22
COVER,FRAME RH (BLUE)
€ 33.00
2-4
4711138202163
ref: 2-4
E22
COVER,FRAME,RIGHT
€ 33.00
2-5
471113820210V
ref: 2-5
E22
COVER,FRAME,RIGHT
€ 33.00
3-1
681303823088W
ref: 3-1
FOR 019
TAPE SET, FRAME COVER RH
€ 0.00
3-2
68130382307AR
ref: 3-2
FOR 14C
TAPE SET, FRAME COVER RH
€ 10.00
3-3
68130382307AU
ref: 3-3
FOR 05K
TAPE SET, FRAME COVER RH
€ 10.00
3-4
681303823067H
ref: 3-4
FOR 163,10V
TAPE SET,FRAME COVER
€ 13.00
4
681313827073F
ref: 4
EMBLEM
681313827073F
€ 5.00
5-1
4721138231019
ref: 5-1
COVER, FRAME LH (BLACK)
€ 53.50
5-2
472113823114C
ref: 5-2
COVER,FRAME LH (RED)
€ 53.50
5-3
472113823105K
ref: 5-3
COVER, FRAME LH (BLUE)
€ 53.50
5-4
4721138231163
ref: 5-4
COVER, FRAME LH (YELLOW)
€ 53.50
5-5
472113823110V
ref: 5-5
COVER, FRAME, LH
€ 53.50
6-1
4721138221019
ref: 6-1
E2,E4,E15,E18,E21,E2
COVER, FRAME LH (BLACK)
€ 57.50
6-2
472113822114C
ref: 6-2
E2,E4,E15,E18,E21,E2
COVER,FRAME LH (RED
472113822114C
€ 57.50
6-3
472113822105K
ref: 6-3
E2,E4,E15,E18,E21,E2
COVER, FRAME LH (BLUE)
€ 57.50
6-4
4721138221163
ref: 6-4
E2,E4,E15,E18,E21,E2
COVER, FRAME LH (YELLOW)
€ 57.50
6-5
472113822110V
ref: 6-5
E2,E4,E15,E18,E21,E2
COVER, FRAME, LH
€ 57.50
7-1
4721138201019
ref: 7-1
E22
COVER, FRAME LH (BLACK)
€ 52.50
7-2
472113820114C
ref: 7-2
E22
COVER,FRAME LH (RED)
€ 52.50
7-3
472113820105K
ref: 7-3
E22
COVER, FRAME LH (BLUE)
€ 52.50
7-4
4721138201163
ref: 7-4
E22
COVER, FRAME LH (YELLOW)
€ 52.50
7-5
472113820110V
ref: 7-5
E22
COVER, FRAME, LH
€ 52.50
8-1
681403823088W
ref: 8-1
FOR 019
TAPE SET, FRAME COVER LH
€ 0.00
8-2
68140382307AR
ref: 8-2
FOR 14C
TAPE SET, FRAME COVER LH
€ 0.00
8-3
68140382307AU
ref: 8-3
FOR 05K
TAPE SET, FRAME COVER LH
€ 0.00
8-4
681403823067H
ref: 8-4
FOR 163,10V
TAPE SET,FRAME COVER
€ 4.50
9
681313827073F
ref: 9
EMBLEM
681313827073F
€ 5.00
10
0932003005
ref: 10
CUSHION
0932003005
€ 2.00
11
0932008018
ref: 11
CUSHION
0932008018
€ 4.00
12
4712238201
ref: 12
HEAT SHIELD,FRAME COVER
€ 34.00
up

all assemblies
