FRAME

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

Frame diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

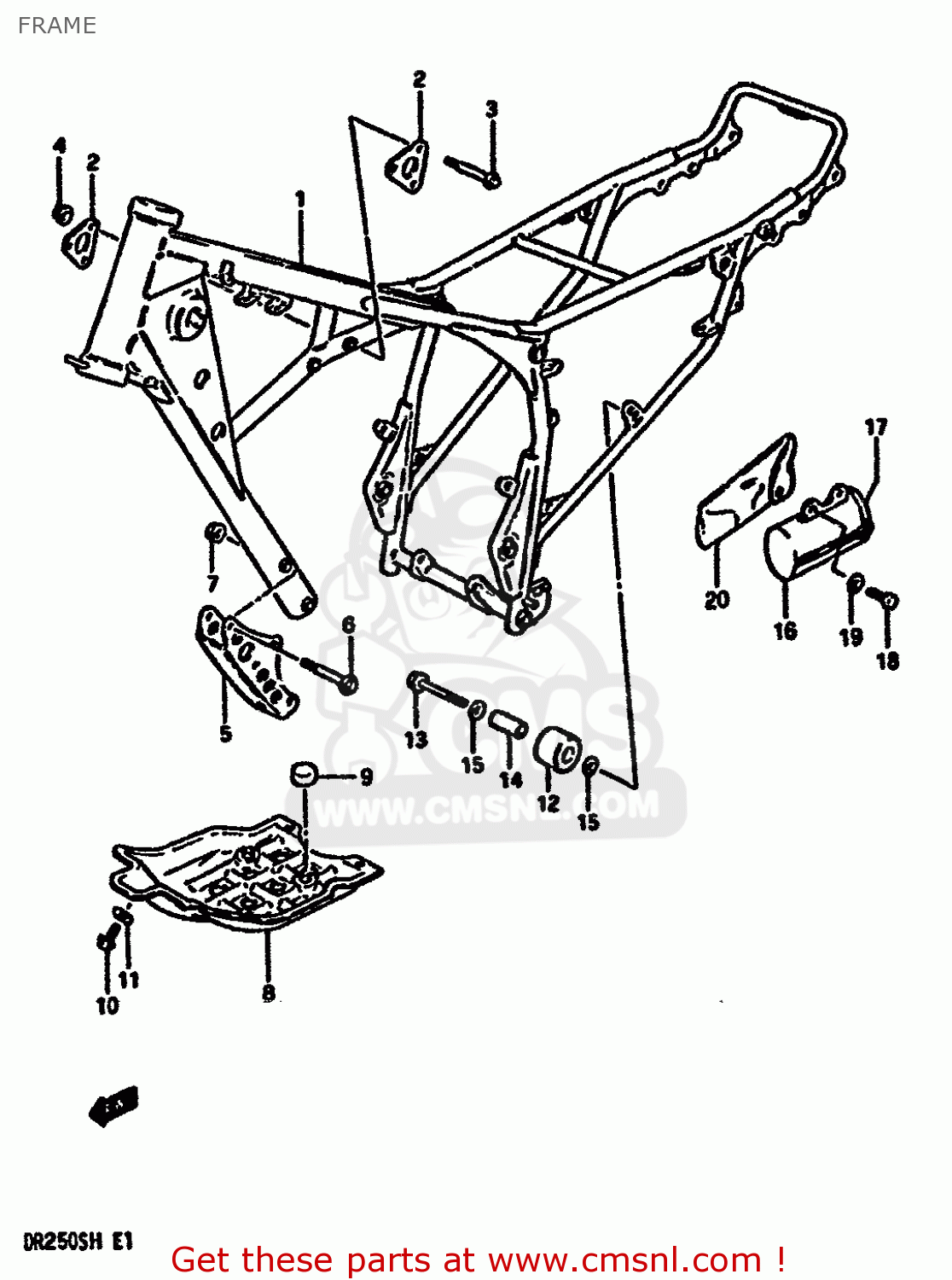

FRAME DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FRAME DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FRAME DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
411003820119F
ref: 1-1
MODEL E/F/G FOR 019,
FRAME (BLUE)
€ 0.00
1-2
4110038201019
ref: 1-2
MODEL E/F/G FOR 14C,
FRAME
€ 590.00
1-3
411003820113L
ref: 1-3
MODEL H
FRAME (SILVER)
€ 0.00
1-4
411003829019F
ref: 1-4
MODEL E/F/G E15,FOR
FRAME (BLUE)
€ 0.00
1-5
4110038290019
ref: 1-5
MODEL E/F/G E15,FOR
FRAME (BLACK)
€ 0.00
1-6
411003829013L
ref: 1-6
MODEL H E15
FRAME (SILVER)
€ 0.00
1-7
411003824119F
ref: 1-7
MODEL E/F/G E18,FOR
FRAME (BLUE)
€ 0.00
1-8
4110038241019
ref: 1-8
MODEL E/F/G E18,FOR
FRAME (BLACK)
€ 0.00
1-9
411003824113L
ref: 1-9
MODEL H E39
FRAME (SILVER)
€ 0.00
1-10
411003825119F
ref: 1-10
MODEL E/F/G E22,FOR
FRAME (BLUE)
€ 0.00
1-11
4110038251019
ref: 1-11
MODEL E/F/G E22,FOR
FRAME (BLACK)
€ 0.00
1-12
411003825113L
ref: 1-12
MODEL H E22
FRAME (SILVER)
€ 0.00
2
4199138208
ref: 2
PLATE,UPPER
€ 0.00
3
0910308081
ref: 3
BOLT(8X50)
0910308081
€ 3.50
4
0831931085
ref: 4
NUT
€ 2.50
5-1
4199238200
ref: 5-1
MODEL E/F
PLATE,ENGINE MOUNTING
€ 15.50
5-2
419923820019F
ref: 5-2
MODEL G,FOR 163,10V,
PLATE,LOWER (BLUE)
€ 15.50
5-3
4199238200019
ref: 5-3
MODEL G,FOR 14C,19F
PLATE,ENGINE MOUNTING,LOWER
€ 15.50
5-4
419923820013L
ref: 5-4
MODEL H
PLATE,LOWER (SILVER)
€ 15.50
6
0910308075
ref: 6
BOLT 8X67
€ 6.50
7
0831931085
ref: 7
NUT
€ 2.50
8-1
4251038200019
ref: 8-1
MODEL E
PROTECTOR,ENGINE
€ 75.50
8-2
425103820008C
ref: 8-2
MODEL F
PROTECTOR,ENGINE
€ 75.50
8-3
425103820013L
ref: 8-3
MODEL G/H
PROTECTOR,ENGINE
425103820013L
€ 75.50
9
0932912003
ref: 9
CUSHION
0932912003
€ 4.00
10
0151706125
ref: 10
BOLT 6X12
0151706125
€ 2.50
11
0916006069
ref: 11
WASHER
0916006069
€ 2.00
12
4391114200
ref: 12
ROLLER,CHAIN LENGTH CONTROL
4391114200
€ 18.50
13
0910308043
ref: 13
BOLT(8X45)
0910308043
€ 4.50
14
4391340400
ref: 14
SPACER,CHAIN LENGTH ROLLER
4391340400
€ 8.00
15
0916008035
ref: 15
WASHER
0916008035
€ 2.00
16
4155138200
ref: 16
HOLDER,TOOL
4155138200
€ 17.00
17
4155237210
ref: 17
CAP,HOLDER
4155237210
€ 5.00
18
0110706165
ref: 18
BOLT 6X16
0110706165
€ 2.00
19
0916006039
ref: 19
WASHER (6.5X18X1.6)
0916006039
€ 2.00
20
0980000242
ref: 20
TOOL ASSY
€ 55.00
