FRONT MASTER CYLINDER (MODEL F/G/H)

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

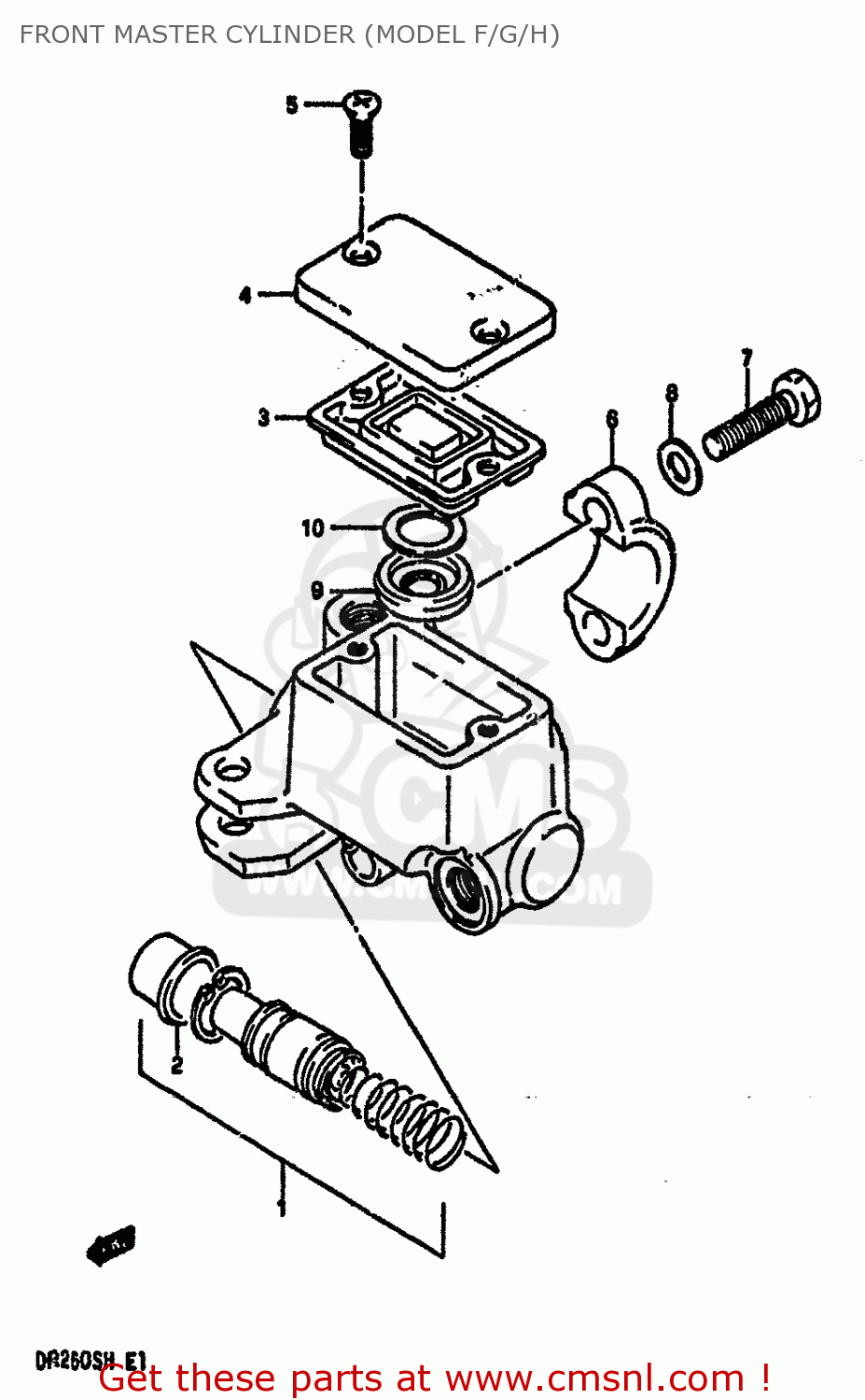

Front master cylinder (model f/g/h) diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

prices are in EUR

ref

part #

description

quantity

5960013A20
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 191.50

5960013820
ref: 1

PISTON/CUP SET

€ 40.50

5966644300
ref: 2

BOOT

€ 6.00

5966704700
ref: 3

DIAPHRAGM

€ 8.00

5966904710
ref: 4

CAP

€ 12.00

6968949300
ref: 5

SCREW

€ 1.50

5967136500
ref: 6

HOLDER

€ 10.00

0110706255
ref: 7

BOLT

€ 2.50

0832221064
ref: 8

WASHER

€ 2.00

5974815400
ref: 9

SEPERATOR

€ 7.50

5974915400
ref: 10

PLATE

€ 2.00
