HEADLAMP (E1,E2,E6,E24,E41)

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

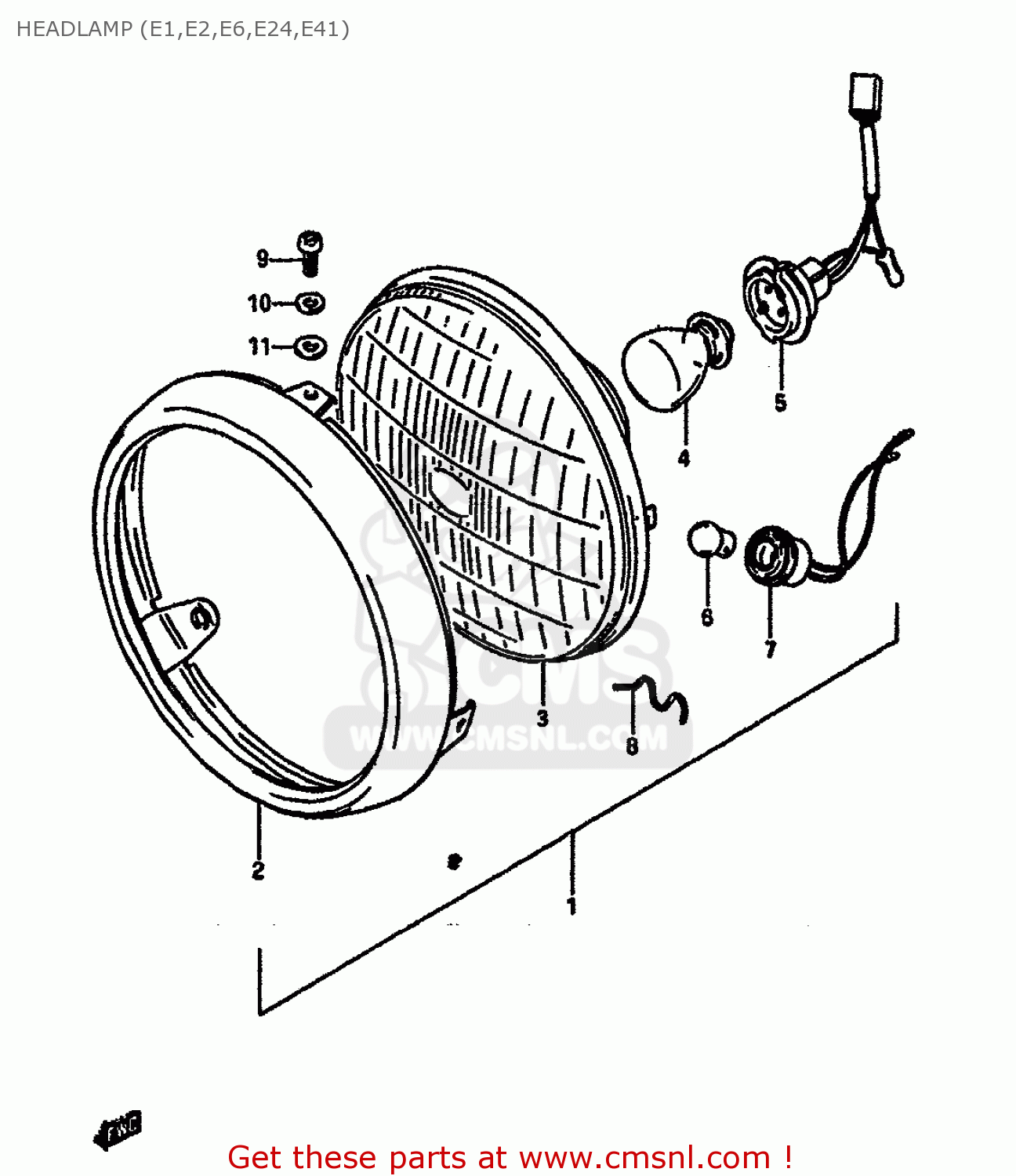

Headlamp (e1,e2,e6,e24,e41) diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

HEADLAMP (E1,E2,E6,E24,E41) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
HEADLAMP (E1,E2,E6,E24,E41) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
HEADLAMP (E1,E2,E6,E24,E41) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3510032510
ref: 1-1
E1,E6,E41
HEADLAMP ASSY
€ 0.00
1-2
3510038220
ref: 1-2
E2
HEADLAMP ASSY
€ 0.00
1-3
3510037120
ref: 1-3
E24
HEADLAMP ASSY
3510037120
€ 71.50
2
3511126440
ref: 2
RIM
3511126440
€ 46.50
3-1
3512132400
ref: 3-1
E1,E6,E41
UINT
€ 57.00
3-2
3512144270
ref: 3-2
E2
LAMP UNIT
3512144270
€ 55.00
3-3
3512132440
ref: 3-3
E24
UNIT
3512132440
€ 55.00
4-1
0947106043
ref: 4-1
E1,E6,E24,E41
BULB(6V,35/35W)
0947106043
€ 7.00
4-2
0947112044
ref: 4-2
E2
BULB
€ 8.50
5
3517144270
ref: 5
SOCKET
3517144270
€ 34.50
6-1
0947112001
ref: 6-1
E2
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
6-2
0947106002
ref: 6-2
E24
BULB(6V/3W)
0947106002
€ 2.50
7
3611830500
ref: 7
E2,E24
SOCKET
3611830500
€ 10.00
8
3517233630
ref: 8
SPRING
3517233630
€ 4.00
9
0211204124
ref: 9
SCREW
€ 1.50
10
0832121045
ref: 10
LOCK WASHER
€ 2.00
11
0832221045
ref: 11
WASHER
€ 5.00
