TURN SIGNAL LAMP (E22)

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

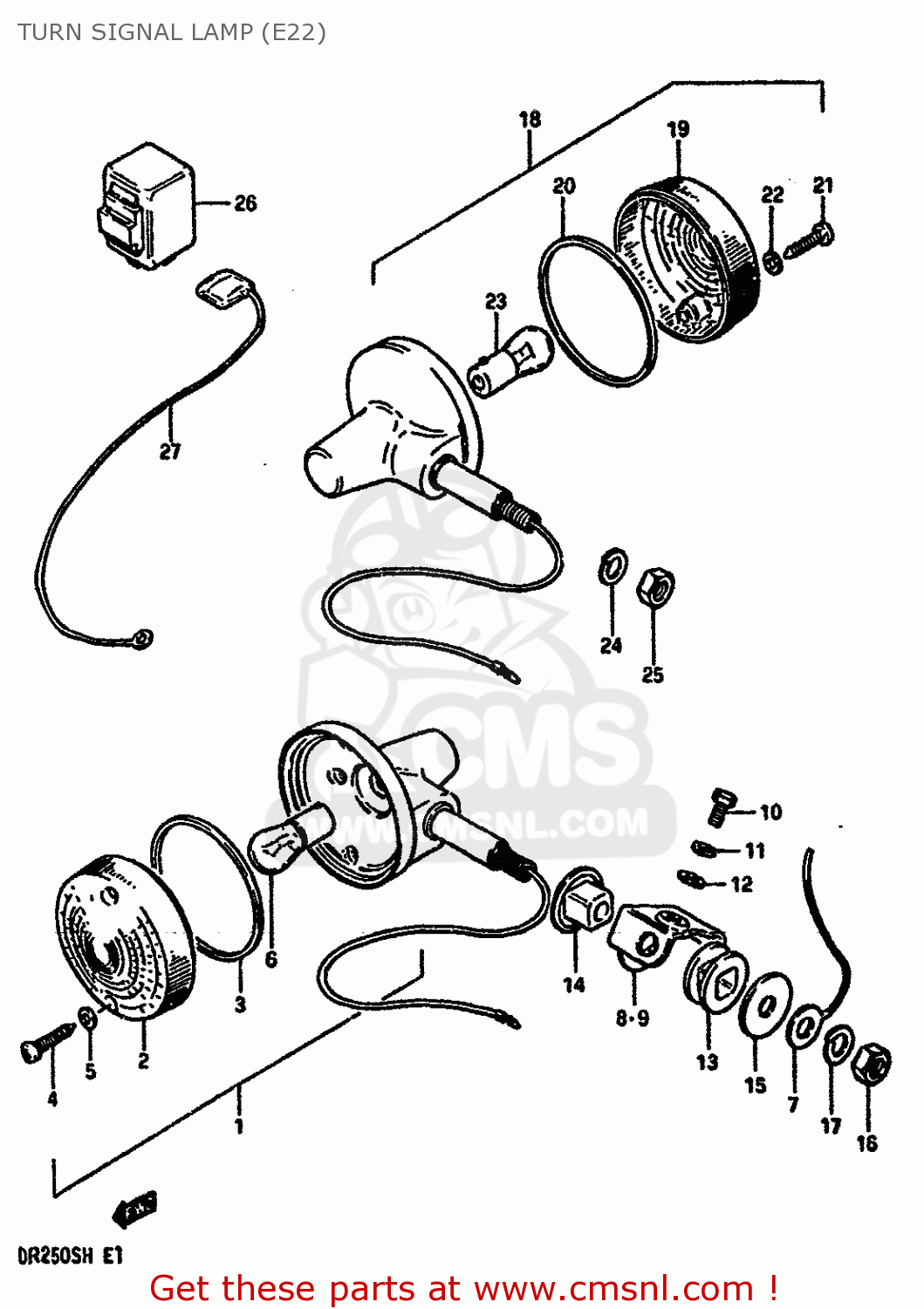

Turn signal lamp (e22) diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

TURN SIGNAL LAMP (E22) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
TURN SIGNAL LAMP (E22) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
TURN SIGNAL LAMP (E22) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1
3560138290999
ref: 1
LAMP,FRONT TURN SIGHAL
3560138290999
€ 41.50
2
3561247040
ref: 2
LENS
3561247040
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4
0321104208
ref: 4
SCREW
0321104208
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112045
ref: 6
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
7
3666033000
ref: 7
LEAD WIRE,EARTH
3666033000
€ 5.00
8
5125130902291
ref: 8
BRACKET,TURNSIGNAL LAMP,R
5125130902291
€ 10.50
9
5125230902291
ref: 9
BRACKET,TURNSIGNAL LAMP,L
5125230902291
€ 10.50
10
0110706127
ref: 10
BOLT
0110706127
€ 2.00
11
0832121067
ref: 11
WASHER,LOCK
0832121067
€ 2.50
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
3569032200
ref: 13
CUSHION
3569032200
€ 38.50
14
3569536590
ref: 14
SPACER
3569536590
€ 6.00
15
0916010006
ref: 15
WASHER (10.5X30X2.3)
0916010006
€ 2.50
16
0831011108
ref: 16
NUT
0831011108
€ 2.50
17
0832121107
ref: 17
WASHER,LOCK,10
0832121107
€ 2.00
18
3560338290999
ref: 18
LAMP ASSY,RR TURN SIGNAL
€ 56.00
19
3565247040
ref: 19
LENS,TURN SIGN
3565247040
€ 7.00
20
3561328620
ref: 20
GASKET (NAS)
3561328620
€ 7.00
21
0321104208
ref: 21
SCREW
0321104208
€ 1.50
22
3562743010
ref: 22
GASKET (NAS)
3562743010
€ 2.00
23
0947112045
ref: 23
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
24
0832121106
ref: 24
LOCK WASHER
€ 3.00
25
0831012106
ref: 25
NUT
0831012106
€ 2.00
26
3861045091
ref: 26
FROM 38610-45090
RELAY ASSY,TUR
€ 67.50
27
3685135010
ref: 27
LEAD WIRE
3685135010
€ 6.00
