MAGNETO

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

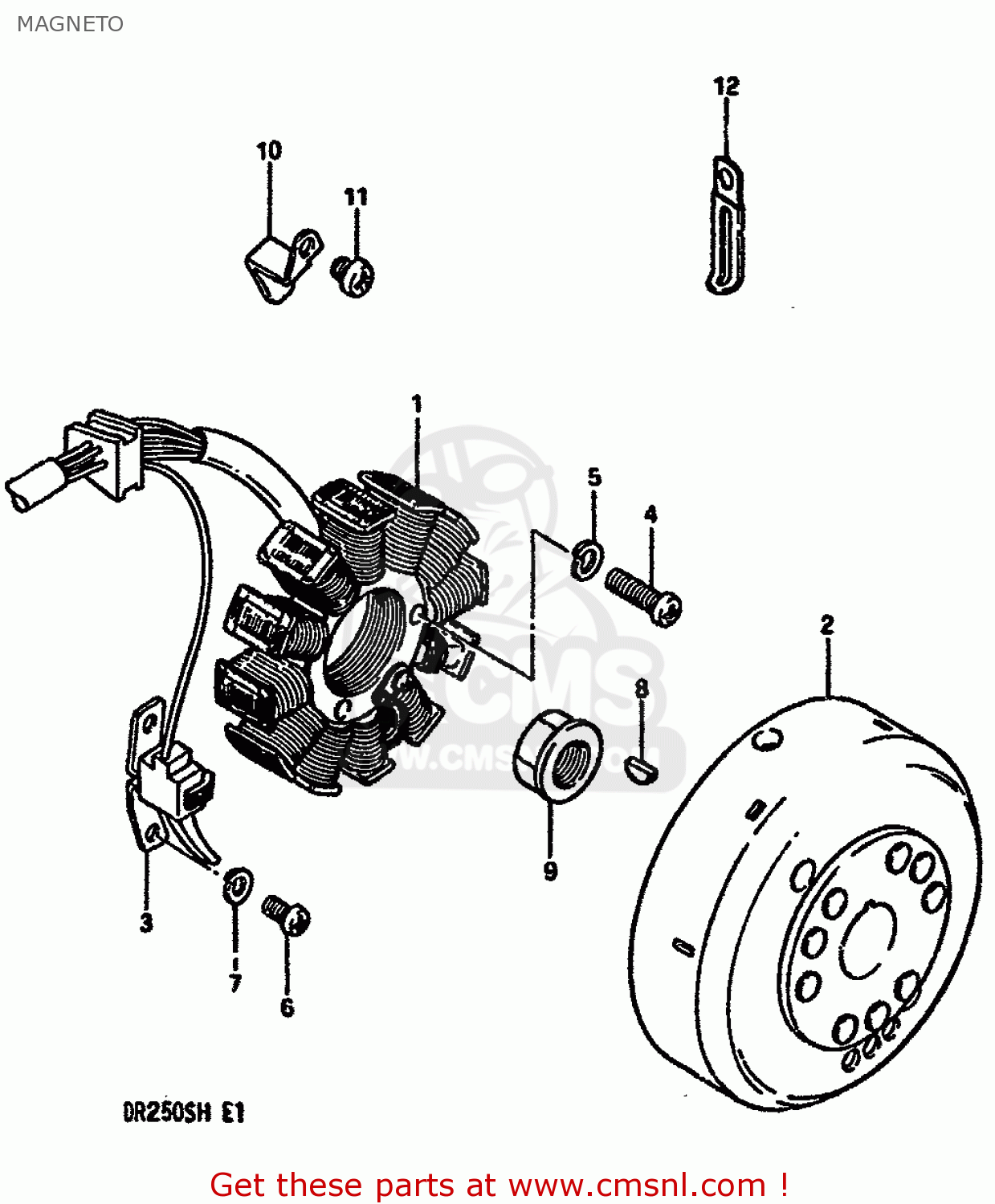

Magneto diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

prices are in EUR

ref

part #

description

quantity

3210138210
ref: 1

STARTER ASSY

€ 444.00

3210238210
ref: 2

ROTOR,FLYWHEEL

€ 247.00

3215038210
ref: 3

COIL,PICK UP

€ 62.50

0211206258
ref: 4

SCREW

€ 2.00

0832121067
ref: 5

WASHER,LOCK

€ 2.50

0211205107
ref: 6

SCREW

€ 2.00

0832121057
ref: 7

LOCK WASHER

€ 2.00

0834131049
ref: 8

KEY 4MM

€ 3.50

3179249200
ref: 9

NUT,GENERATOR ROTOR

€ 10.00

3237138200
ref: 10

CLAMP,MAGNETO LEAD WIRE

€ 0.00

0211206087
ref: 11

SCREW

€ 2.00

0940406401
ref: 12

CLAMP L:35

€ 2.50
