Buy Suzuki DR Parts Online


FUEL TANK (MODEL E E2,E4,E15,E18,E21,E22,E25,E39)

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

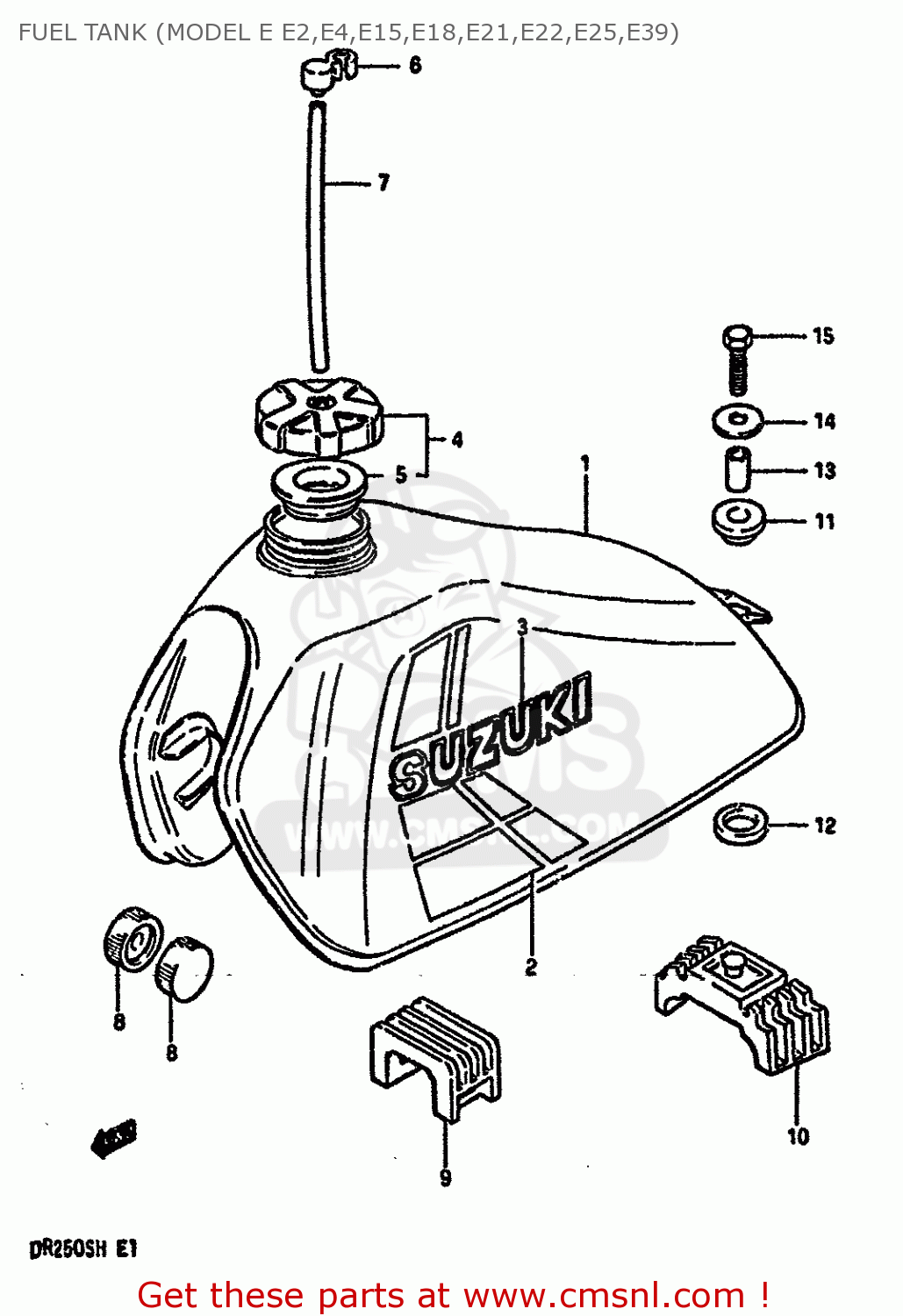

Fuel tank (model e e2,e4,e15,e18,e21,e22,e25,e39) diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

FUEL TANK (MODEL E E2,E4,E15,E18,E21,E22,E25,E39) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FUEL TANK (MODEL E E2,E4,E15,E18,E21,E22,E25,E39) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
FUEL TANK (MODEL E E2,E4,E15,E18,E21,E22,E25,E39) DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4410038290019
ref: 1-1
TANK ASSY,FUEL (BLACK)
€ 520.00
1-2
4910038230019
ref: 1-2
E22
TANK ASSY,FUEL (BLACK)
€ 425.00
1-3
441003829014C
ref: 1-3
TANK ASSY,FUEL (RED)
€ 520.00
1-4
491003823014C
ref: 1-4
E22
TANK ASSY,FUEL (RED)
€ 425.00
1-5
441003829005K
ref: 1-5
TANK ASSY,FUEL (BLUE)
€ 520.00
1-6
491003823005K
ref: 1-6
E22
TANK ASSY,FUEL (BLUE)
€ 425.00
1-7
4410038290163
ref: 1-7
TANK ASSY,FUEL (YELLOW)
€ 520.00
1-8
4910038230163
ref: 1-8
E22
TANK ASSY,FUEL (YELLOW)
€ 425.00
1-9
441003829010V
ref: 1-9
TANK ASSY,FUEL (WHITE)
€ 520.00
1-10
491003823010V
ref: 1-10
E22
TANK ASSY,FUEL (WHITE)
€ 425.00
2-1
681103825088W
ref: 2-1
FOR 019
TAPE SET,FUEL TANK
€ 0.00
2-2
68110382507AR
ref: 2-2
FOR 14C
TAPE SET,FUEL TANK
€ 0.00
2-3
68110382507AU
ref: 2-3
FOR 05K
TAPE SET,FUEL TANK
€ 18.00
2-4
681103825067H
ref: 2-4
FOR 163,10V
TAPE SET,FUEL TANK
€ 19.00
3-1
6811129310064
ref: 3-1
FOR 019,14C,05K
EMBLEM,FUEL TANK(WHITE)
6811129310064
€ 14.00
3-2
6811129310019
ref: 3-2
FOR 163,10V
EMBLEM
€ 16.50
4
4420005812
ref: 4
CAP SET,FUEL TANK
4420005812
€ 19.50
5
4424805210
ref: 5
GASKET (NAS)
4424805210
€ 4.50
6
4448632101
ref: 6
CLAMP,FUEL TANK BREATHER HOSE
4448632101
€ 3.50
7
0934305129
ref: 7
HOSE
€ 13.00
8
0932910016
ref: 8
CUSHION
0932910016
€ 3.00
9
4454138200
ref: 9
CUSHION,TANK UPR FR
4454138200
€ 6.00
10
4454238200
ref: 10
CUSHION,FUEL TANK,REAR
€ 11.50
11
0932012010
ref: 11
CUSHION
0932012010
€ 3.00
12
0932012023
ref: 12
CUSHION
0932012023
€ 2.50
13
0918008067
ref: 13
SPACER(8.5X12X19)
0918008067
€ 2.50
14
0916008002
ref: 14
WASHER (8.5X29X1.6)
0916008002
€ 2.00
15
0110708307
ref: 15
BOLT
€ 2.50
