SEAT

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

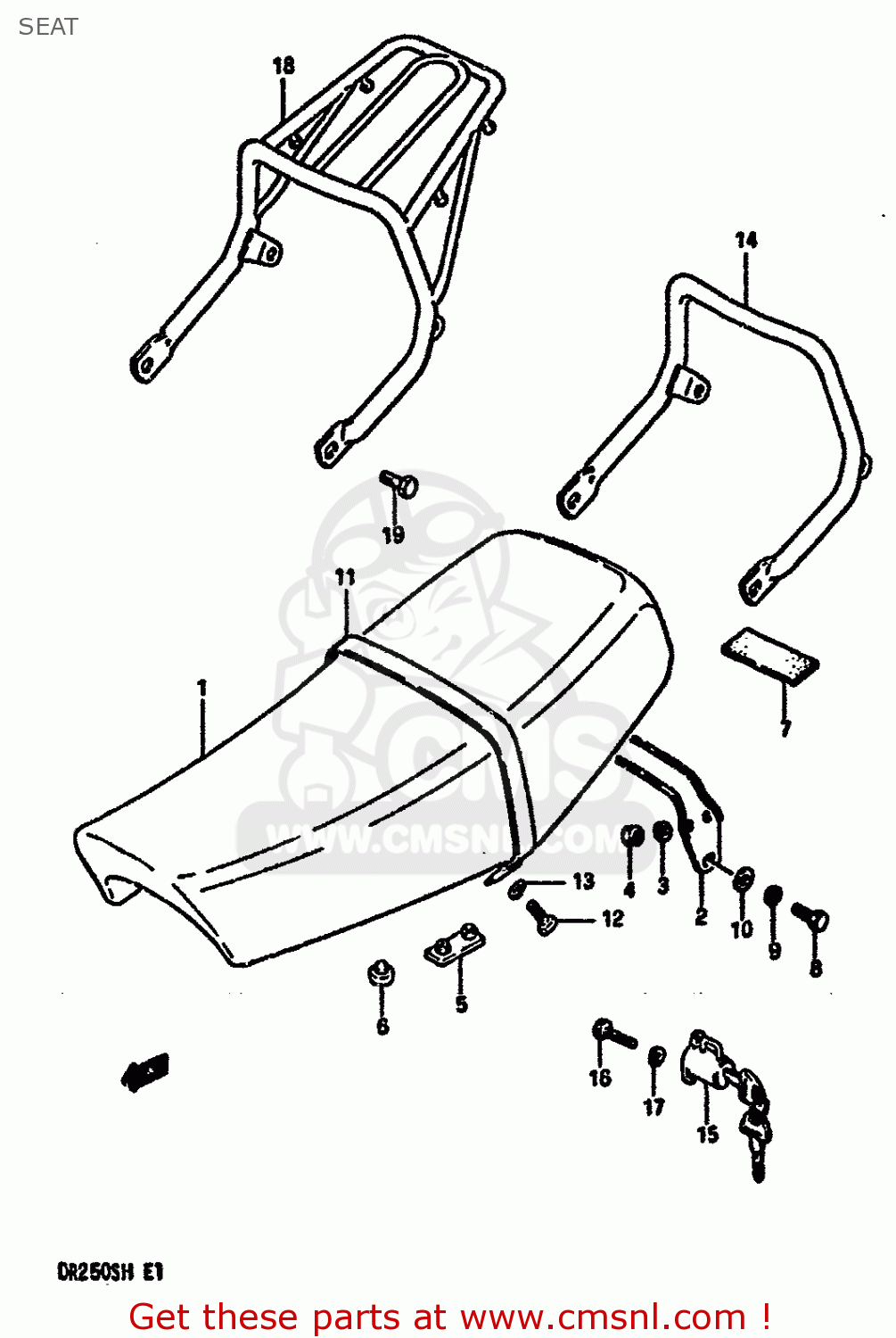

Seat diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

SEAT DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
SEAT DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
SEAT DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
451003823054G
ref: 1-1
MODEL E/F
SEAT ASSEMBLY
€ 266.00
1-2
451003824054G
ref: 1-2
MODEL E/F E15,E18,E2
SEAT ASSY (BLUE)
451003824054G
€ 188.50
1-3
451003890054G
ref: 1-3
MODEL G
SEAT ASSY (BLUE)
€ 0.00
1-4
451003892054G
ref: 1-4
MODEL G E15,E18
SEAT ASSY (BLUE)
€ 277.00
1-5
451003893054G
ref: 1-5
MODEL G E22
SEAT ASSY (BLUE)
€ 277.00
1-6
45100389404UZ
ref: 1-6
MODEL H
SEAT ASSY (BLUE)
€ 0.00
1-7
45100389504UZ
ref: 1-7
MODEL H E15,E22
SEAT ASSY (BLUE)
€ 0.00
2
4511438201
ref: 2
STAY,REAR
€ 0.00
3
0832121067
ref: 3
WASHER,LOCK
0832121067
€ 2.50
4
0831011068
ref: 4
NUT
0831011068
€ 2.50
5
0932108009
ref: 5
CUSHION
0932108009
€ 4.00
6
0932910001
ref: 6
CUSHION
0932910001
€ 2.50
7
9498238201
ref: 7
TAPE, SEAT UNDER
9498238201
€ 1.50
8
0110708165
ref: 8
BOLT
€ 2.00
9
0832121084
ref: 9
WASHER,LOCK,8.
0832121084
€ 2.50
10
0832211084
ref: 10
WASHER
0832211084
€ 1.50
11-1
451803820054G
ref: 11-1
BAND,SEAT GRIP (BLUE)
€ 0.00
11-2
45180382004UZ
ref: 11-2
BAND,SEAT GRIP (BLUE)
€ 0.00
12
0110708165
ref: 12
BOLT
€ 2.00
13
0832121084
ref: 13
WASHER,LOCK,8.
0832121084
€ 2.50
14
4162038210
ref: 14
E22
HANDLE, PILLION RIDER
€ 0.00
15
9570035821
ref: 15
LOCK ASSEMBLY,HELMET
9570035821
€ 57.50
16
0910606024
ref: 16
BOLT 6X11
0910606024
€ 2.50
17
0832121064
ref: 17
WASHER,LOCK
0832121064
€ 2.00
18
4631038200
ref: 18
OPT
CARRIER
€ 80.00
19
0151708254
ref: 19
OPT
BOLT
0151708254
€ 2.50
