HANDLEBAR

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

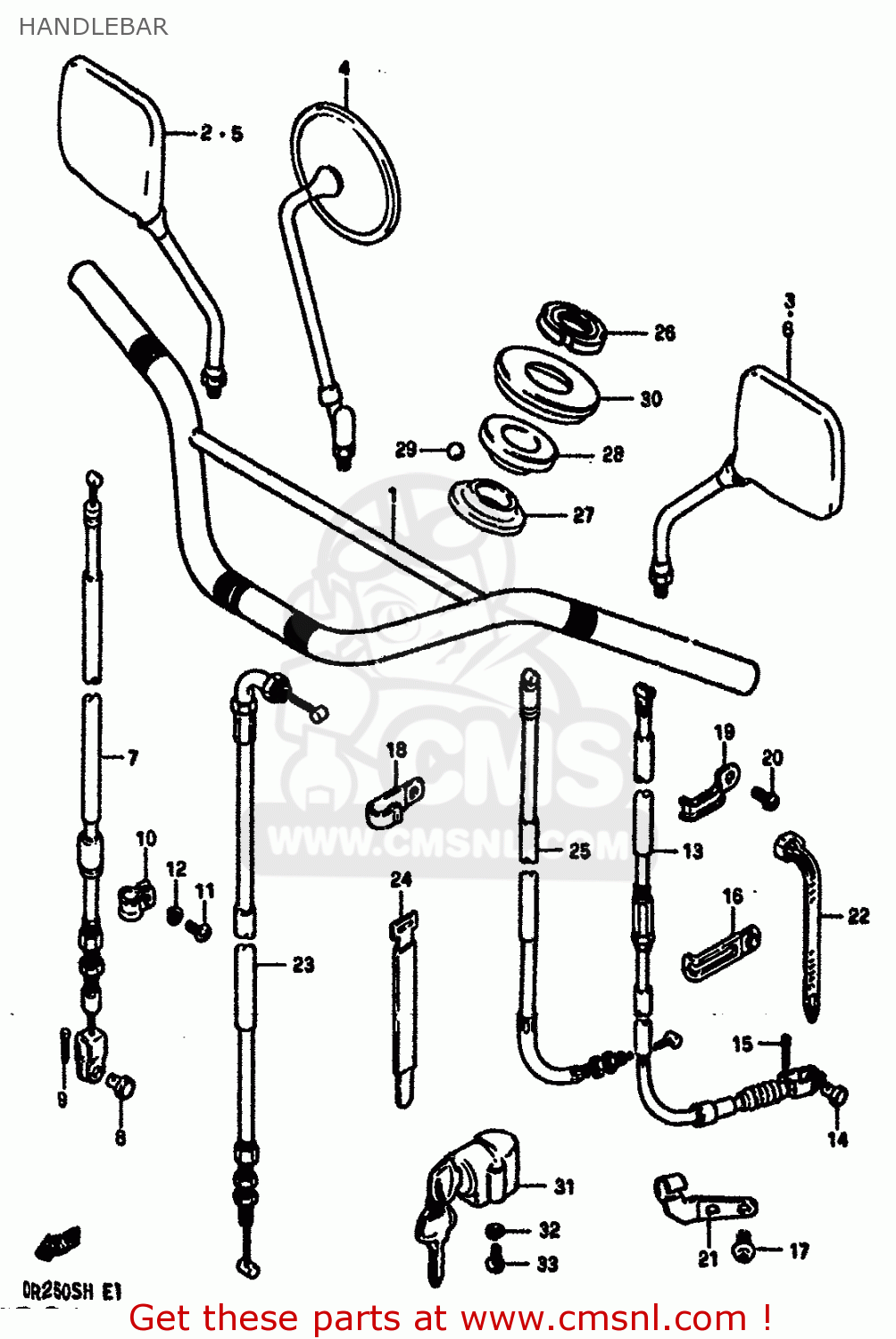

Handlebar diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

HANDLEBAR DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
HANDLEBAR DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
HANDLEBAR DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5611038210291
ref: 1-1
MODEL E/G/H
HANDLEBAR
5611038210291
€ 53.50
1-2
561103821019T
ref: 1-2
MODEL F
HANDLEBAR
€ 53.50
2
5650001A50
ref: 2
MIRROR ASSEMBLY,REAR VIEW
5650001A50
€ 222.50
3
5660001A50
ref: 3
MIRROR ASSEMBLY,LEFT
5660001A50
€ 196.00
4
5650008010
ref: 4
E2,E4,E21
MIRROR ASSY,RH
5650008010
€ 119.50
5-1
5650001A20
ref: 5-1
E18,E24
MIRROR, REAR VIEW RH
5650001A20
€ 222.50
5-2
5650001A10
ref: 5-2
E22
MIRROR ASSEMBLY,RIGHT
€ 57.00
6-1
5660001A20
ref: 6-1
E18,E24
MIRROR, REAR VIEW LH
€ 196.00
6-2
5660001A10
ref: 6-2
E22
MIRROR ASSEMBLY,LEFT
€ 30.50
7
5810038201
ref: 7
MODEL E
CABLE ASSY,FR BRAKE
5810038201
€ 28.00
8
0920005001
ref: 8
MODEL E
PIN(L:17.5)
0920005001
€ 1.50
9
0411120158
ref: 9
MODEL E
PIN
0411120158
€ 1.50
10
5862114201
ref: 10
MODEL E
CLAMP,FR BRAKE CABLE
5862114201
€ 3.50
11
0211206108
ref: 11
MODEL E
SCREW
0211206108
€ 1.50
12
0832121067
ref: 12
MODEL E
WASHER,LOCK
0832121067
€ 2.50
13
5820038200
ref: 13
CABLE ASSEMBLY,CLUTCH
5820038200
€ 32.50
14
0920006004
ref: 14
PIN(L:13)
0920006004
€ 1.50
15
0411120158
ref: 15
PIN
0411120158
€ 1.50
16
0940408402
ref: 16
CLAMP
0940408402
€ 3.50
17
0211206125
ref: 17
SCREW
0211206125
€ 1.50
18
0940309301
ref: 18
CLAMP
€ 8.50
19
0940307310
ref: 19
CLAMP
€ 2.00
20
0215206108
ref: 20
SCREW
€ 2.00
21
5063438200
ref: 21
STTOPPER,CLUTCH CABLE
€ 0.00
22
0940718402
ref: 22
CLAMP(L:165)
0940718402
€ 2.50
23
5830038200
ref: 23
CABLE ASSY,THROTTLE NO.1
5830038200
€ 49.50
24
0940725301
ref: 24
CLAMP(L:250)
0940725301
€ 4.50
25
5890038201
ref: 25
CABLE ASSEMBLY,DECOMPRESSION
€ 25.00
26
5163140200
ref: 26
NUT,STEERING STEM
5163140200
€ 12.00
27
5161140201
ref: 27
RACE,STEERING INNER (SUJ)
5161140201
€ 8.50
28
5162140200
ref: 28
RACE,STEERING,OUTER,UPPER
5162140200
€ 17.00
28
0611108003
ref: 28
BALL
0611108003
€ 1.50
30
5164340200
ref: 30
SEAL,STEERING UPR DUST
5164340200
€ 7.50
31
5191025311
ref: 31
LOCK ASSY,STEERING
5191025311
€ 22.50
32
0832121057
ref: 32
LOCK WASHER
0832121057
€ 2.00
33
0211205128
ref: 33
SCREW
€ 2.50
