BATTERY

DR800SU 1990 (L) GERMANY (E22)

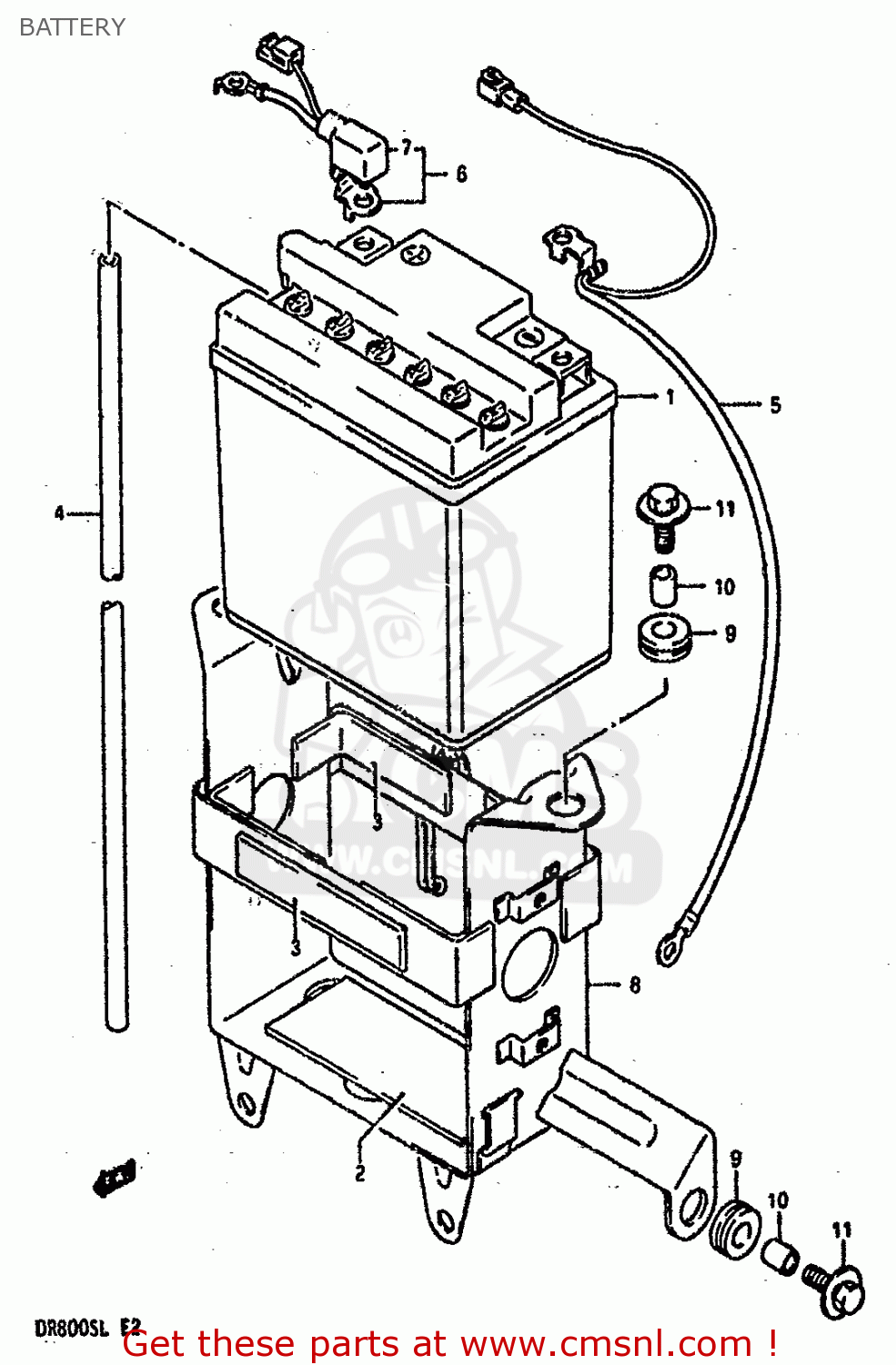

Battery diagram DR800SU 1990 (L) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

3361005A10
ref: 1

BATTERY(YB14L-B2,12V14.7AH)

€ 46.00

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3368014A00
ref: 4
L:700-650

HOSE,BATTERY EXHAUST

€ 4.50

3386044B00
ref: 5

LEAD WIRE,BATTERY (-)

€ 17.50

3382044B00
ref: 6

LEAD WIRE,BATTERY (+)

€ 19.50

3362435B00
ref: 7

CAP,BATTERY PLUS

€ 6.50

4154044B10
ref: 8

HOLDER,BATTERY

€ 0.00

0932008021
ref: 9

CUSHION

€ 4.00

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

0911606011
ref: 11

BOLT 6X20

€ 2.00

all assemblies
