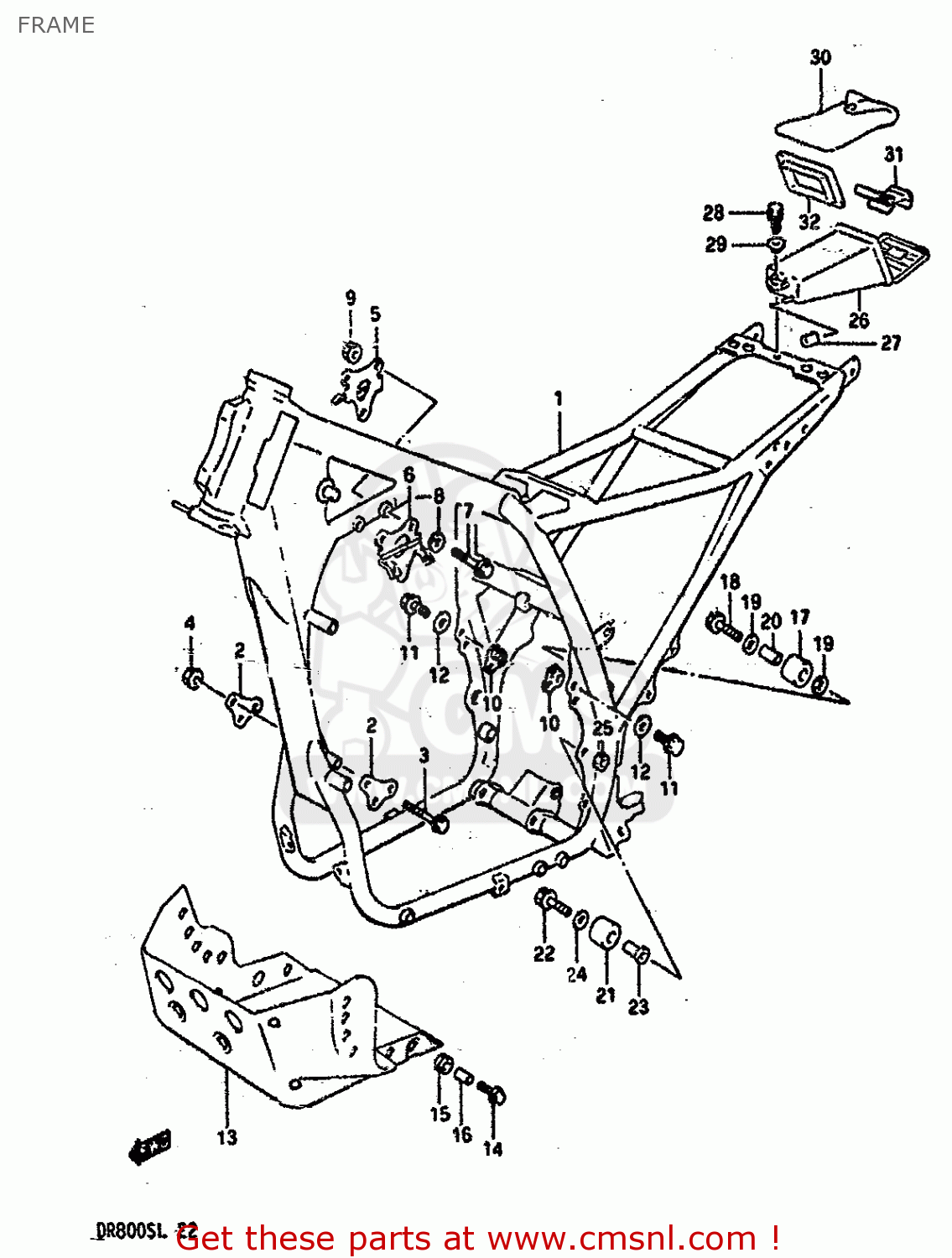

FRAME

ref

part #

description

quantity

1-1

4110044B7028W
ref: 1-1

FRAME (WHITE)

€ 1,852.50

1-2

4110044B8028W
ref: 1-2
E15,E16,E17,E22

FRAME (WHITE)

€ 0.00

1-3

4110044B9028W
ref: 1-3
E21

FRAME (WHITE)

€ 1,559.00

2

4191144B0028W
ref: 2

PLATE,FRONT (WHITE)

€ 9.50

3

0910308189
ref: 3

BOLT 8X70

€ 6.00

4

0831931085
ref: 4

NUT

€ 2.50

5

4189044B0128W
ref: 5

PLATE,UPPER RH (WHITE)

€ 19.00

6

4199044B0128W
ref: 6

PLATE,UPPER LH (WHITE)

€ 19.00

7

0910308267
ref: 7

BOLT,ENGINE MOUNTING (L:55)

€ 3.50

8

0832131084
ref: 8

LOCK WASHER

€ 2.50

9

0831931085
ref: 9

NUT

€ 2.50

10

4195044B0028W
ref: 10

PLATE,REAR (WHITE)

€ 9.50

11

0151708254
ref: 11

BOLT

€ 2.50

12

0832131084
ref: 12

LOCK WASHER

€ 2.50

13-1

4251144B1028V
ref: 13-1

PROTECTOR,ENGINE (RED)

€ 258.50

13-2

4251144B100NF
ref: 13-2

PROTECTOR,ENGINE (BLUE)

€ 258.50

14

0911606010
ref: 14

BOLT(6X20)

€ 2.00

15

0932009016
ref: 15

CUSHION

€ 2.50

16

0918006011
ref: 16

SPACER (6.1X9X9)

€ 2.00

17

4391101B10
ref: 17

ROLLER,CHAIN CONTROL

€ 14.50

18

0910308083
ref: 18

BOLT(8X41)

€ 3.50

19

0821108221
ref: 19

WASHER

€ 2.50

20

0918008136
ref: 20

SPACER (8.6X13.8X28)

€ 9.00

21

4391101B10
ref: 21

ROLLER,CHAIN CONTROL

€ 14.50

22

0910310197
ref: 22

BOLT(10X52)

€ 5.00

23

4391644B00
ref: 23

SPACER,CHAIN ROLLER, LWR

€ 11.50

24

0821110221
ref: 24

WASHER

€ 2.50

25

0831931105
ref: 25

NUT 10MM

€ 3.00

26

4743044B00
ref: 26

HOLDER TOOL

€ 24.00

27

0932905006
ref: 27

CUSHION

€ 2.00

28

0113706165
ref: 28

BOLT

€ 2.50

29

0916906026
ref: 29

WASHER

€ 2.00

30

0980020012
ref: 30

TOOL ASSY

€ 55.00

31

0946200091
ref: 31

BAND

€ 7.50

32

4743744B00
ref: 32

CUSHION,TOOL HOLDER

€ 13.50
