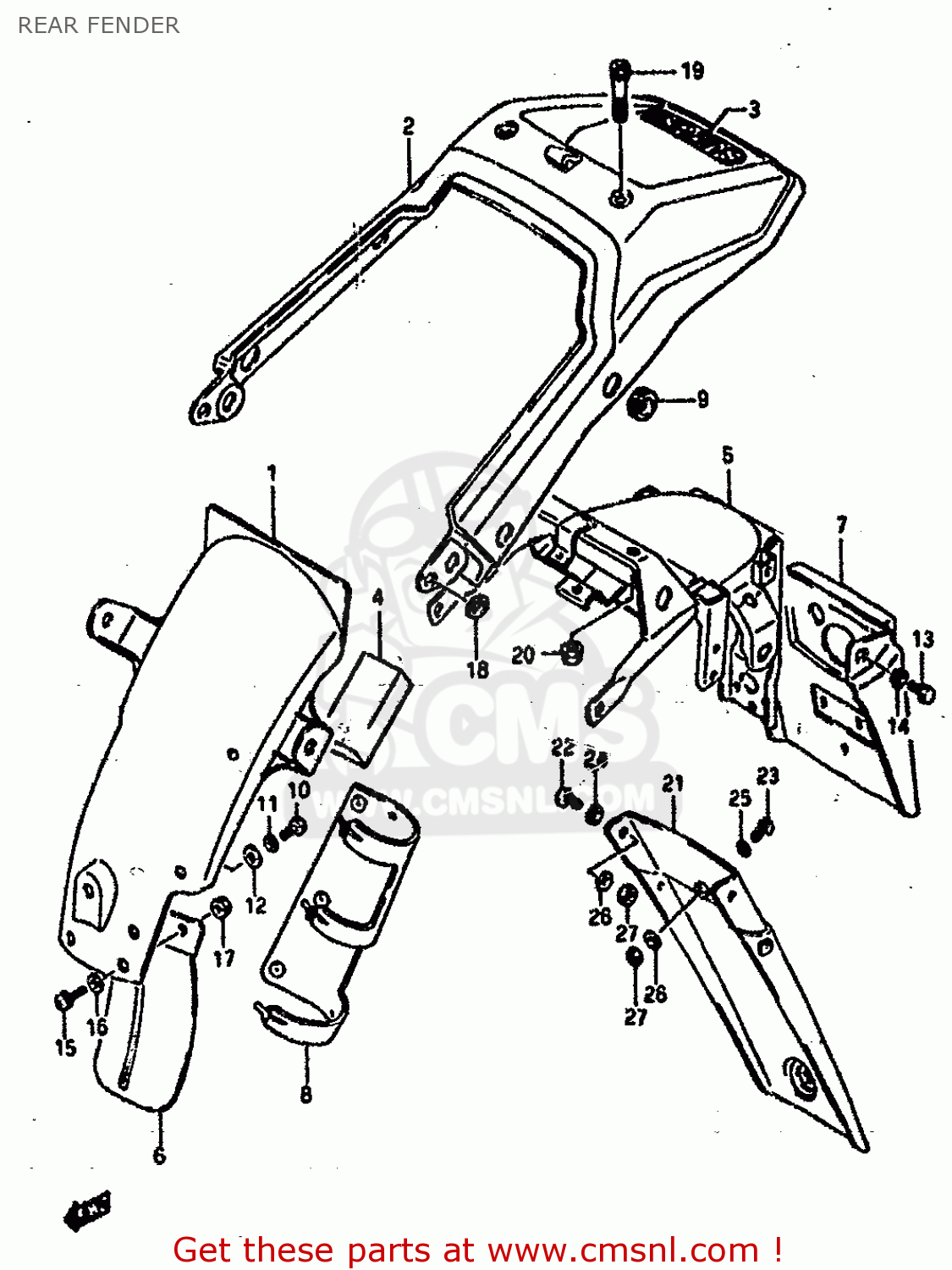

REAR FENDER

ref

part #

description

quantity

1

6311244B00
ref: 1

BODY,REAR FENDER FRONT

€ 25.50

2-1

6311044B0028V
ref: 2-1

BODY,REAR FENDER REAR (RED)

€ 210.50

2-2

6311044B000NF
ref: 2-2

BODY,REAR FENDER REAR (BLUE)

€ 208.50

2-3

6311044B1028V
ref: 2-3
E22

BODY,REAR FENDER REAR (RED)

€ 210.50

2-4

6311044B100NF
ref: 2-4
E22

BODY,RR FENDER RR

€ 208.50

3-1

6817144B003RZ
ref: 3-1
FOR 28V

EMBLEM

€ 5.50

3-2

6817144B003UT
ref: 3-2
FOR 0NF

EMBLEM,RR FENDER

€ 7.00

4

6319144B00
ref: 4

DUST SEAL,REAR FENDER

€ 0.00

5

6312044B02
ref: 5

REINFORCEMENT,REAR FENDER

€ 104.00

6

6341244B00
ref: 6

GUARD,REAR FEN

€ 15.50

7-1

6331144B00
ref: 7-1
E2,E4,E21,E24,E25,E3

EXTENSION,RR FENDER

€ 29.50

7-2

6331144B10
ref: 7-2
E15,E16,E17,E18,E39

EXTENSION,REAR FENDER

€ 25.50

7-3

6331144B20
ref: 7-3
E22

EXTENSION,REAR FENDER

€ 25.50

8

6341144B01
ref: 8

GUARD,MUD

€ 14.00

9

0930817002
ref: 9

GROMMET

€ 4.00

10

0110706165
ref: 10

BOLT 6X16

€ 2.00

11

0832121064
ref: 11

WASHER,LOCK

€ 2.00

12

0916906026
ref: 12

WASHER

€ 2.00

13

0110706125
ref: 13

BOLT

€ 2.00

14

0916906034
ref: 14

WASHER

€ 2.50

15

0211216168
ref: 15

SCREW

€ 2.00

16

0916006015
ref: 16

WASHER

€ 1.50

17

0831931067
ref: 17

NUT

€ 2.50

18

0916910010
ref: 18

WASHER

€ 3.00

19

0711008407
ref: 19

BOLT

€ 3.50

20

0831931085
ref: 20

NUT

€ 2.50

21-1

6333144B00
ref: 21-1
E15,E16,E17,E18

MUD GUARD,REAR FENDER

€ 29.00

21-2

6333144B20
ref: 21-2
E22

MUD GUARD,REAR FENDER

€ 22.00

21-3

6333144B30
ref: 21-3
E39

MUD GUARD,REAR FENDER

€ 29.00

22

0214206125
ref: 22
E15,E16,E17,E18,E22,

SCREW 6X12

€ 2.00

23

0912506055
ref: 23
E15,E16,E17,E18,E22,

SCREW(6X25)

€ 3.00

24

0916906055
ref: 24
E15,E16,E17,E18,E22,

WASHER

€ 2.00

25

0832121066
ref: 25
E15,E16,E17,E18,E22,

WASHER,LOCK

€ 2.00

26

0916006019
ref: 26
E15,E16,E17,E18,E22,

WASHER(6.5X16X1.2)

€ 1.50

27

0831022066
ref: 27
E15,E16,E17,E18,E22,

NUT

€ 2.00

all assemblies
