OIL COOLER

DR800SU 1990 (L) GERMANY (E22)

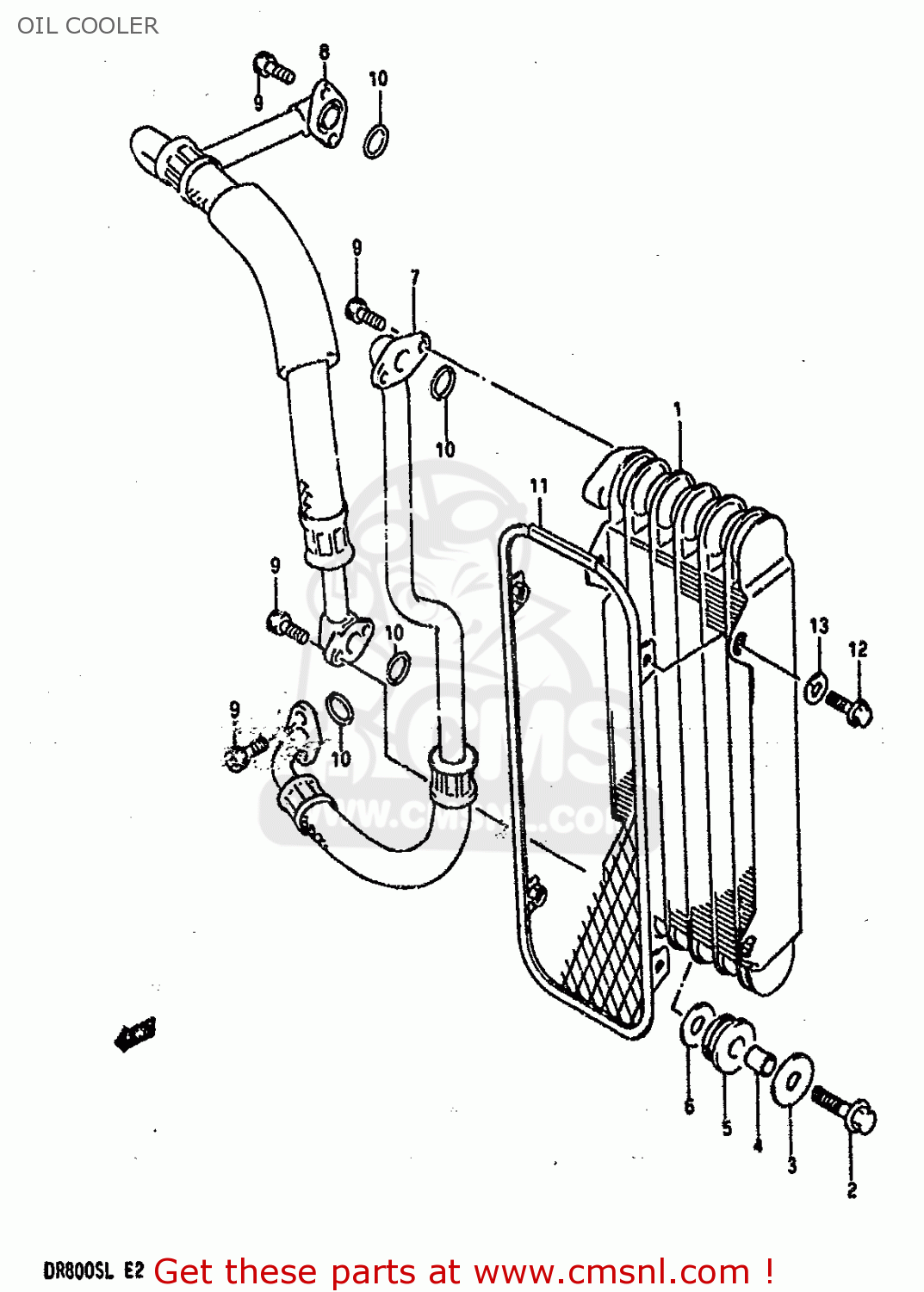

Oil cooler diagram DR800SU 1990 (L) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1660044B00
ref: 1

COOLER ASSY,OIL

€ 443.50

0151708304
ref: 2

BOLT

€ 3.00

0916008057
ref: 3

WASHER (8.5X20X1.6)

€ 2.00

0918008126
ref: 4

SPACER (8.8X12X11.6)

€ 2.00

1662944B00
ref: 5

CUSHION,OIL COOLER

€ 3.00

0916008047
ref: 6

WASHER(8.5X23X1.2)

€ 2.00

1646044B02
ref: 7

HOSE,OIL COOLER NO.1

€ 156.50

1647044B01
ref: 8

HOSE,OIL COOLER NO.2

€ 124.00

0711006165
ref: 9

BOLT

€ 3.00

0928012008
ref: 10

O RING(D:2.4,ID:12.3)

€ 3.00

1665044B00
ref: 11

BUMPER,OIL COOLER

€ 38.50

0154705105
ref: 12

BOLT

€ 2.50

0832121055
ref: 13

WASHER,LOCK

€ 3.00
