CYLINDER
DR800SU 1990 (L) GERMANY (E22)

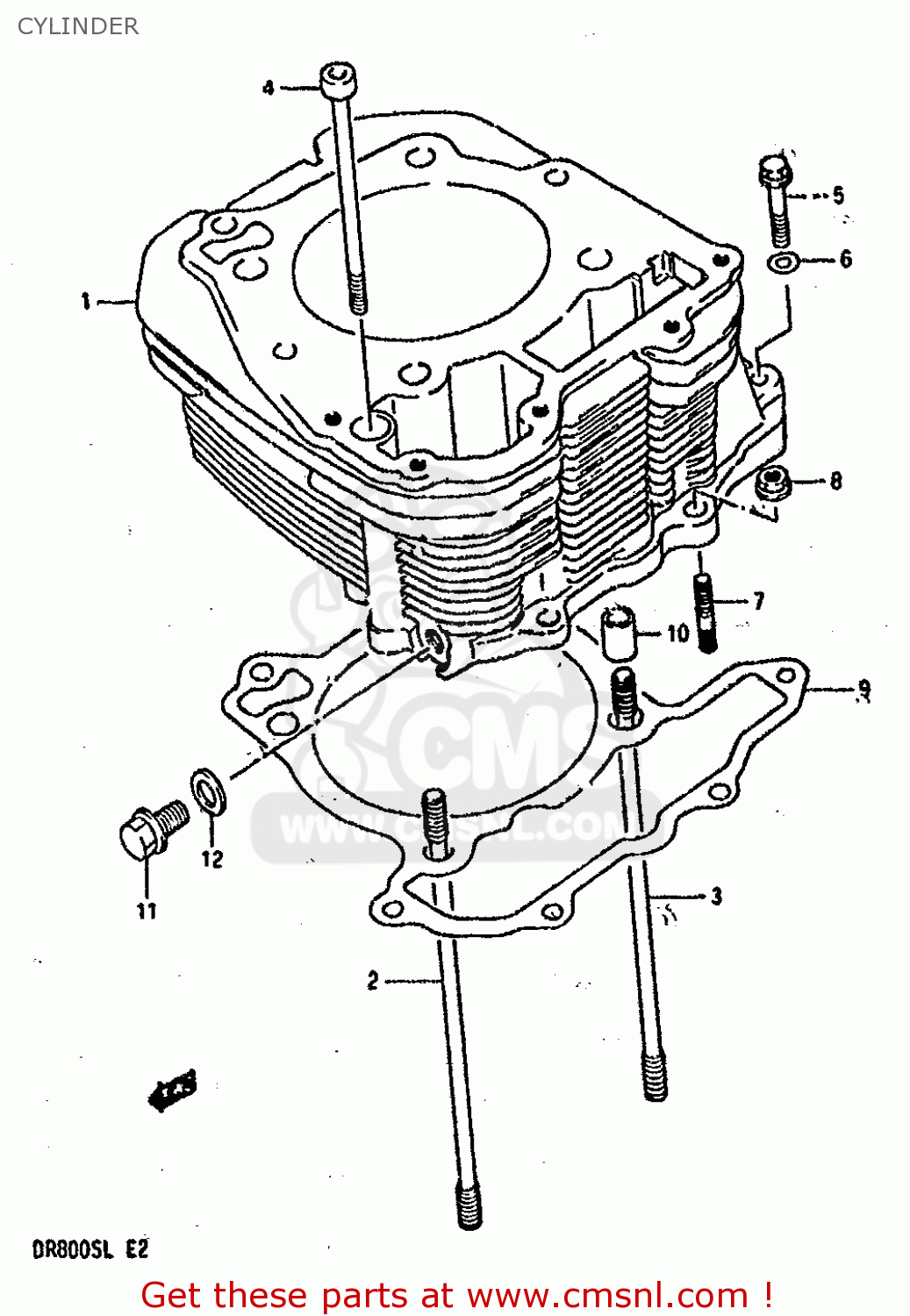

Cylinder diagram DR800SU 1990 (L) GERMANY (E22)
CYLINDER DR800SU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1121045B000ML
ref: 1
CYLINDER (GRAY)
€ 568.50
2
0910810094
ref: 2
BOLT,STUD
€ 12.50
3
0910810103
ref: 3
BOLT,STUD(10X195)
€ 12.50
4
0910607012
ref: 4
BOLT L:115
€ 9.00
5
0151706404
ref: 5
BOLT
€ 2.00
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
€ 2.00
7
0142106205
ref: 7
STUD BOLT L:20
€ 2.50
8
0831616064
ref: 8
NUT 6MM
€ 2.50
9
1124144B01
ref: 9
GASKET,CYLINDER (NAS)
€ 33.00
10
0920613001
ref: 10
PIN
€ 2.50
11
0151710165
ref: 11
BOLT
€ 2.50
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
