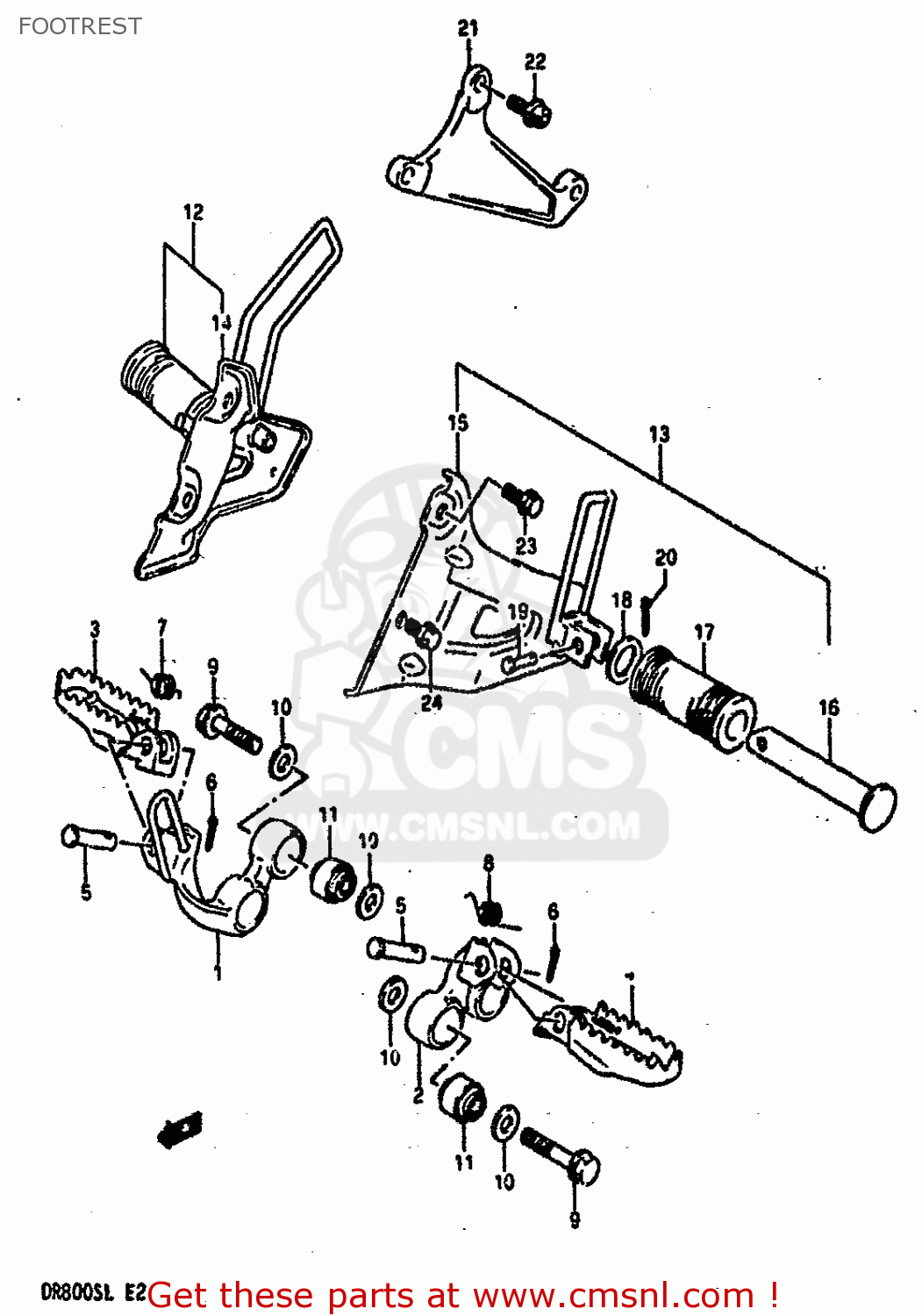

FOOTREST

ref

part #

description

quantity

1

4351044B00019
ref: 1

BAR,FOOTREST RH (BLACK)

€ 33.50

2

4352044B00019
ref: 2

BAR,FOOTREST LH (BLACK)

€ 47.50

3

4355044B10019
ref: 3

FOOTREST,FR,R

€ 52.50

4

4356044B10019
ref: 4

FOOTREST,FR,L

€ 27.00

5

0920010008
ref: 5

PIN

€ 3.00

6

0411120208
ref: 6

PIN 20X20

€ 1.50

7

0944815008
ref: 7

SPRING

€ 2.50

8

0944815004
ref: 8

SPRING

€ 2.50

9

0910310124
ref: 9

BOLT

€ 4.50

10

0916010110
ref: 10

WASHER(10.1X23X2.3)

€ 3.00

11

0931910057
ref: 11

BUSHING 10X28.1X19

€ 15.00

12

4360044B1028W
ref: 12

FOOTREST,PILLION RH (WHITE)

€ 107.00

13

4370044B0028W
ref: 13

FOOTREST,PILLION LH (WHITE)

€ 58.00

14

4365044B1128W
ref: 14

HOLDER,RH (WHITE)

€ 48.00

15

4375044B0028W
ref: 15

HOLDER,LH (WHITE)

€ 42.00

16

4361003001
ref: 16

BAR,FOOTREST RUBBER

€ 5.50

17

4361244B00
ref: 17

RUBBER,PILLION FOOTREST

€ 14.00

18

0916019006
ref: 18

WASHER (19.5X32X2)

€ 2.00

19

0920006010
ref: 19

PIN

€ 2.50

20

0411120158
ref: 20

PIN

€ 1.50

21

4381144B0021R
ref: 21

BRACKET,MUFFLER (SILVER)

€ 58.00

22

0910608100
ref: 22

BOLT

€ 3.50

23

0911808141
ref: 23

BOLT

€ 0.00

24

0118708168
ref: 24

BOLT,LOWER LH

€ 3.00
