STAND-REAR BRAKE
DR800SU 1990 (L) GERMANY (E22)

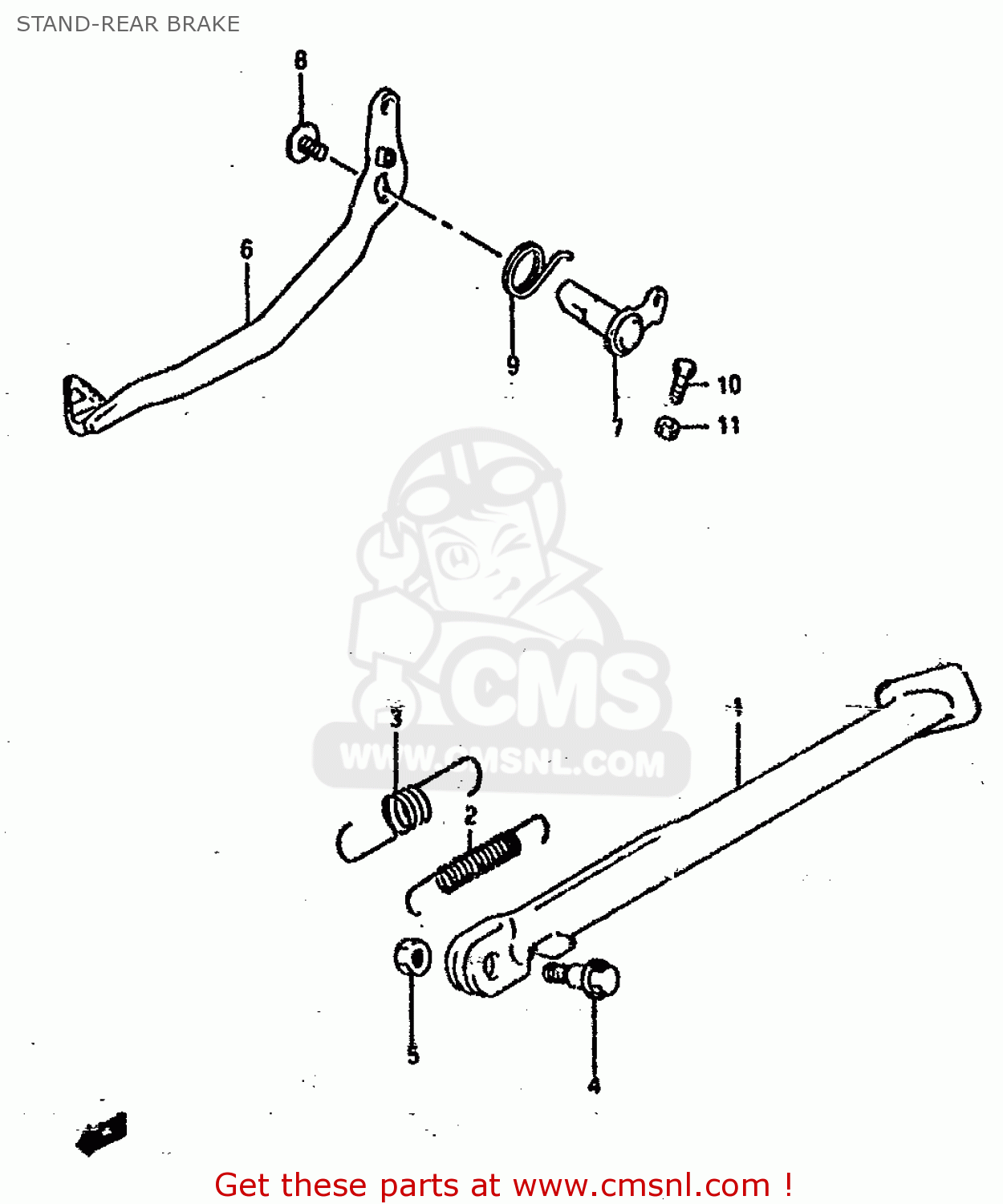

Stand-rear brake diagram DR800SU 1990 (L) GERMANY (E22)
STAND-REAR BRAKE DR800SU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4231044B01019
ref: 1
STAND,PROP (BLACK)
€ 97.50
2
0944315041
ref: 2
SPRING
€ 18.50
3
0944322010
ref: 3
SPRING
€ 7.00
4
0911110048
ref: 4
BOLT(10X33.5)
€ 4.00
5
0831022107
ref: 5
NUT
€ 2.50
6
4311044B10
ref: 6
PEDAL,BRAKE
€ 39.00
7
4312044B10
ref: 7
ARM,BRAKE PEDAL ROD
€ 18.00
8
0910608050
ref: 8
BOLT 8X14
€ 7.00
9
0944825005
ref: 9
SPRING
€ 3.50
10
0910006009
ref: 10
BOLT(6X23)
€ 1.50
11
0831011067
ref: 11
NUT 6MM
€ 2.50
