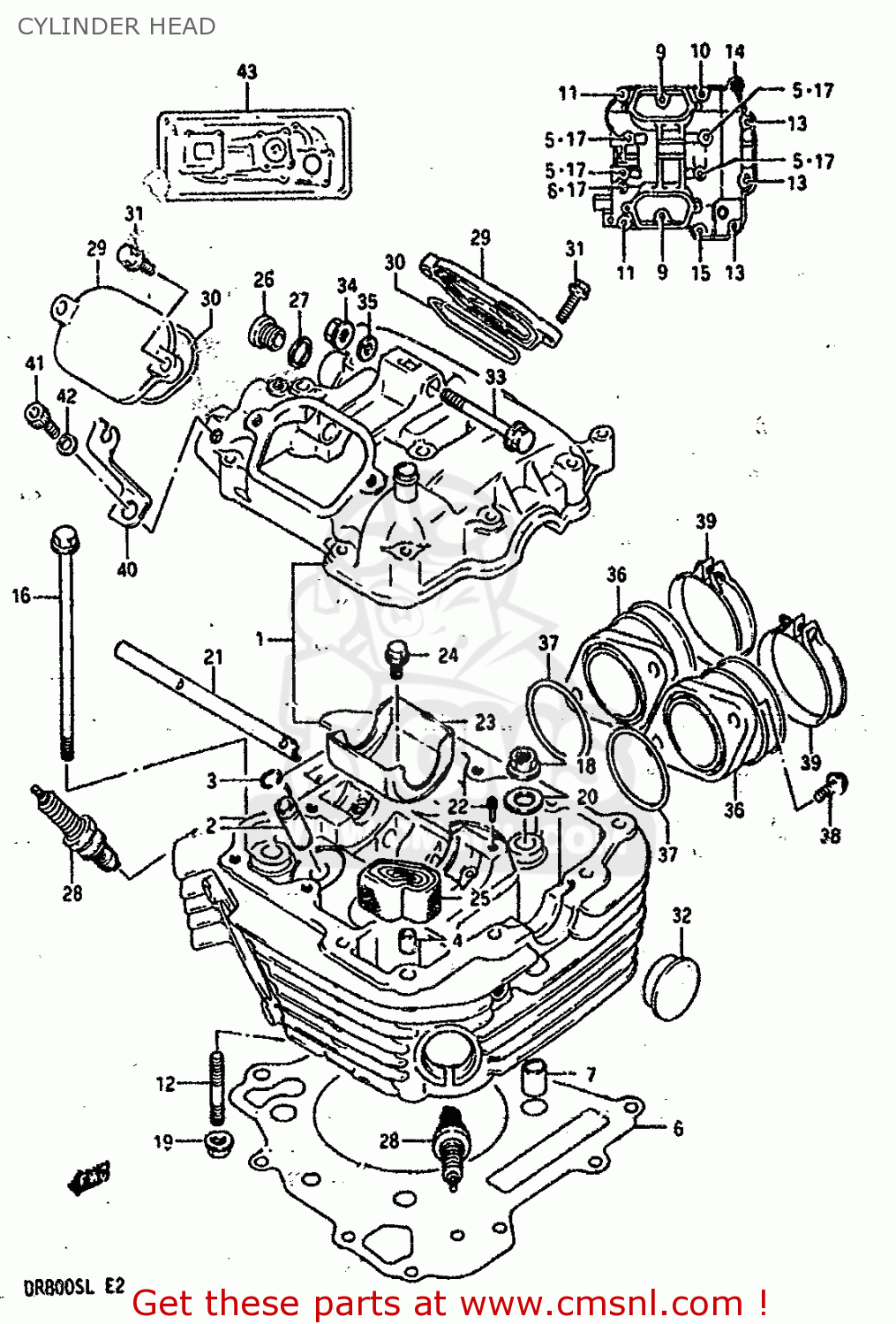

CYLINDER HEAD

ref

part #

description

quantity

1

1110044B010ML
ref: 1

HEAD ASSY,CYLINDER (GRAY)

€ 947.50

2

1111544B70
ref: 2

GUIDE,VALVE

€ 19.00

3

0938110003
ref: 3

RING,SNAP

€ 2.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0910306102
ref: 5

BOLT(6X55)

€ 2.50

6

1114144B01
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 54.00

7

0920613001
ref: 7

PIN

€ 2.50

8

0151706167
ref: 8

BOLT 6X16

€ 1.50

9

0131706257
ref: 9

BOLT

€ 0.00

10

0151706307
ref: 10

BOLT

€ 2.00

11

0151706358
ref: 11

BOLT 6X35

€ 2.50

12

0910808206
ref: 12

BOLT,STUD(8X31)

€ 3.50

13

0910306033
ref: 13

BOLT(6X125)

€ 3.50

14

0910306052
ref: 14

BOLT(6X115)

€ 5.00

15

0910306067
ref: 15

BOLT(6X105)

€ 3.50

16

0910308224
ref: 16

BOLT(8X155)

€ 10.00

17

0916806023
ref: 17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

18

0831616108
ref: 18

NUT

€ 2.00

19

0831616085
ref: 19

NUT 8MM

€ 3.00

20

0916010039
ref: 20

WASHER(10.5X22X2.3)

€ 2.50

21

1113144B01
ref: 21

PIPE,OIL

€ 17.60

22

0913406012
ref: 22

SCREW (L:19.5)

€ 3.00

23

1113544B00
ref: 23

PLATE, OIL CHAMBER

€ 8.50

24

0151706108
ref: 24

BOLT

€ 2.50

25

1118644B00
ref: 25

SEPARATOR,OIL

€ 8.50

26

0924814005
ref: 26

PLUG,14X12

€ 5.00

27

0916814004
ref: 27

GASKET(14X19.2X2) (NAS)

€ 2.50

28-1

0948200330
ref: 28-1

PLUG,SPARK(DPR9EA-9)

€ 4.00

28-2

0948200334
ref: 28-2
OPT

PLUG,SPARK(DPR8EA-9)

€ 4.00

29

1117544B00
ref: 29

CAP,INSPECTION

€ 14.50

30

1117744B00
ref: 30

O-RING,INSPECTION CAP

€ 6.00

31

0151706207
ref: 31

BOLT 6X20

€ 2.50

32

0924130004
ref: 32

PLUG(OD:30)

€ 6.50

33

0910308267
ref: 33

BOLT,ENGINE MOUNTING (L:55)

€ 3.50

34

0831931085
ref: 34

NUT

€ 2.50

35

0832131084
ref: 35

LOCK WASHER

€ 2.50

36

1311044B00
ref: 36

PIPECOMP,INT

€ 36.50

37

0928040010
ref: 37

O RING(D:2.4,ID:39.7)

€ 3.50

38

0215206205
ref: 38

SCREW

€ 2.00

39

0940252208
ref: 39

CLAMP

€ 5.50

40

1294444B00
ref: 40

HOLDER,DECOMP CABLE

€ 0.00

41

0711008165
ref: 41

BOLT

€ 3.00

42

0832221085
ref: 42

WASHER

€ 1.50

43-1

1140144830
ref: 43-1
OPT

GASKET SET

€ 129.50

43-2

1140144830H17
ref: 43-2
E17,OPT

GASKET SET (NA)

€ 129.50
