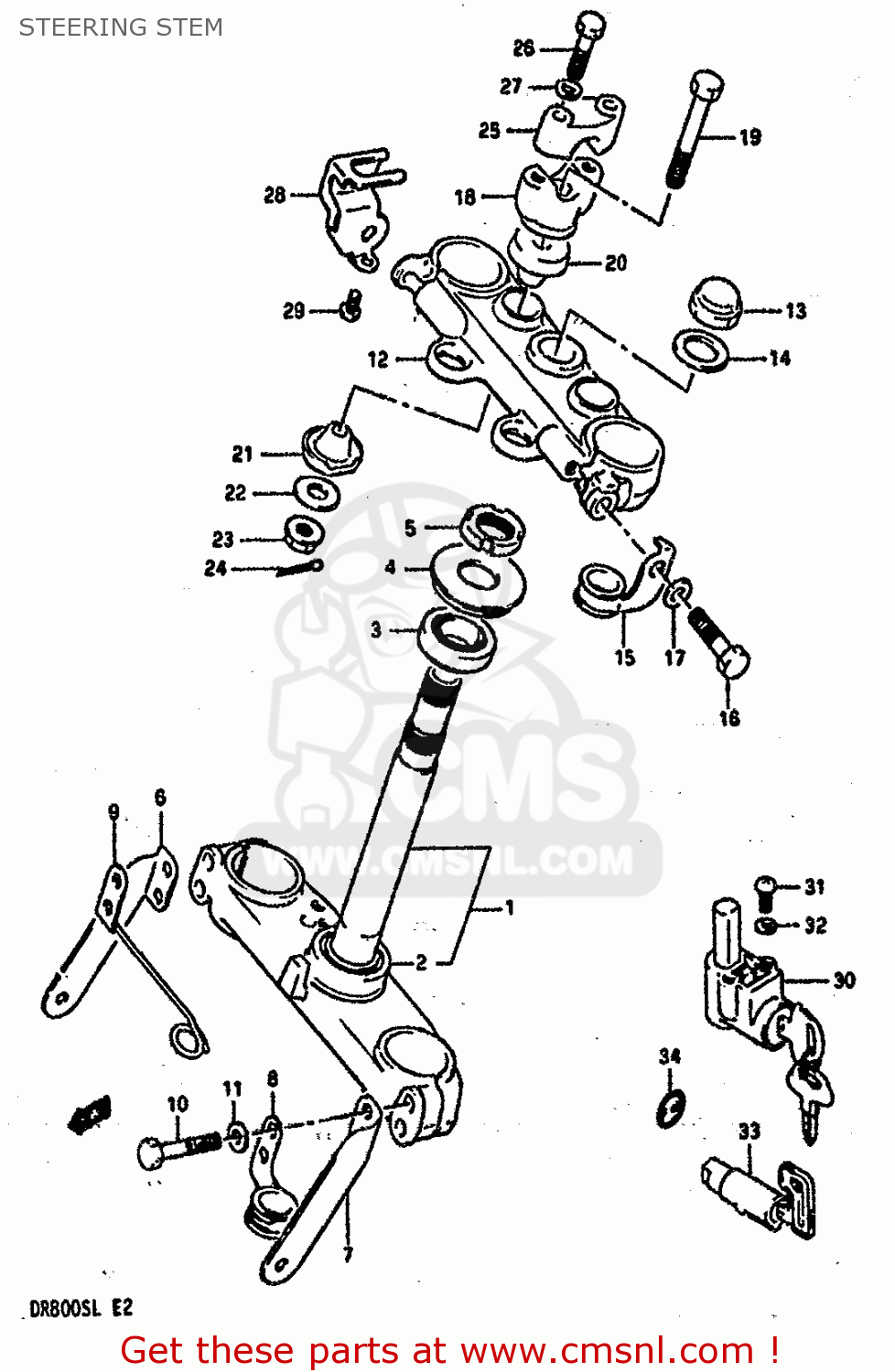

STEERING STEM

ref

part #

description

quantity

1-1

5141044B01
ref: 1-1

STEM,STEERING

€ 353.00

1-2

5141044B11
ref: 1-2
E15,E16,E17,E22

STEM,STEERING

€ 396.50

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0926525008
ref: 3

TAPER,ROLLER BEARING

€ 48.50

4

5164340200
ref: 4

SEAL,STEERING UPR DUST

€ 7.50

5

5163140200
ref: 5

NUT,STEERING STEM

€ 12.00

6

3595644B00
ref: 6
E39

BRACKET,FRONT SIDE RH

€ 7.50

7

3595744B00
ref: 7
E39

BRACKET,FRONT SIDE LH

€ 7.50

8

5862144B00
ref: 8

CLIP,LH LOWER

€ 9.00

9

3493844B10
ref: 9

GUIDE, SPEEDOMETER CABLE

€ 7.50

10

0110708505
ref: 10

BOLT

€ 3.00

11

0832131084
ref: 11

LOCK WASHER

€ 2.50

12

5131144B10
ref: 12

BRACKET,UPPER

€ 161.50

13

5135344B00
ref: 13

NUT

€ 21.50

14

5135627A00
ref: 14

WASHER,STEERING STEM

€ 3.00

15

5862244B10
ref: 15

CLIP,UPPER LH

€ 11.50

16

0110710455
ref: 16

BOLT

€ 2.00

17

0832131105
ref: 17

LOCK WASHER

€ 3.00

18

5622114330291
ref: 18

HOLDER,HANDLE LWR

€ 25.50

19

5132114200
ref: 19

BOLT,HANDLE HOLDER

€ 6.50

20

5624114A00
ref: 20

DAMPER,UPR

€ 25.00

21

5624144B00
ref: 21

DAMPER RUBBER,LOWER

€ 25.00

22

5624344B00
ref: 22

WASHER

€ 7.00

23

0831931107
ref: 23

NUT

€ 3.00

24

0411120308
ref: 24

COTTER PIN

€ 1.00

25

5621127200291
ref: 25

HOLDER,HANDLE UPR

€ 13.50

26

0120408354
ref: 26

BOLT

€ 3.50

27

0832121084
ref: 27

WASHER,LOCK,8.

€ 2.50

28

5849144B00
ref: 28

BRACKET,STARTER CABLE

€ 15.50

29

0211205108
ref: 29

SCREW

€ 2.00

30

5190033811
ref: 30

LOCK ASSY,STEERING

€ 32.50

31

0211205257
ref: 31

SCREW

€ 2.00

32

0832121057
ref: 32

LOCK WASHER

€ 2.00

33

5190030901
ref: 33
E15,E16,E22

LOCK ASSY,STEERING(NEIMAN)

€ 168.50

34

5191545000
ref: 34
E17

LABEL,STEERING LOCK

€ 1.50

all assemblies
