FRONT MASTER CYLINDER

DR800SU 1990 (L) GERMANY (E22)

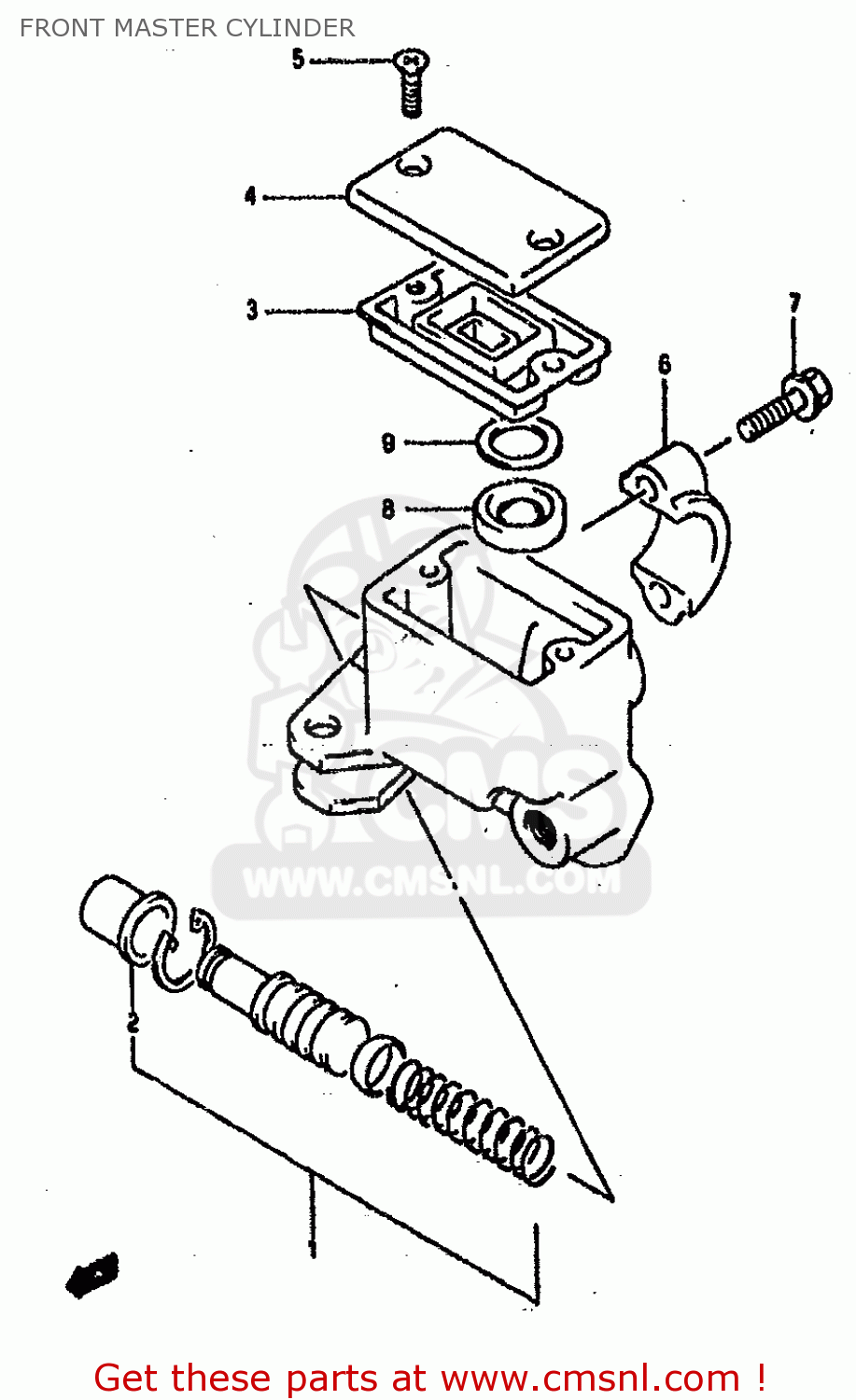

Front master cylinder diagram DR800SU 1990 (L) GERMANY (E22)

FRONT MASTER CYLINDER DR800SU 1990 (L) GERMANY (E22)
FRONT MASTER CYLINDER DR800SU 1990 (L) GERMANY (E22)
FRONT MASTER CYLINDER DR800SU 1990 (L) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
0
5960044B10
ref: 0
CYLINDER ASSY,FRONT MASTER
€ 198.00
1
5960045850
ref: 1
PISTON & CUP SET
5960045850
€ 38.50
2
5966644300
ref: 2
BOOT
5966644300
€ 6.00
3
5966744B00
ref: 3
DIAPHRAGM
5966744B00
€ 8.00
4
6966924A01
ref: 4
CAP
6966924A01
€ 12.00
5
6968949300
ref: 5
SCREW
6968949300
€ 1.50
6
5967136500
ref: 6
HOLDER
5967136500
€ 10.00
7
0111706255
ref: 7
BOLT
€ 2.50
8
5974815400
ref: 8
SEPERATOR
5974815400
€ 7.50
9
5974915400
ref: 9
PLATE
5974915400
€ 2.00
