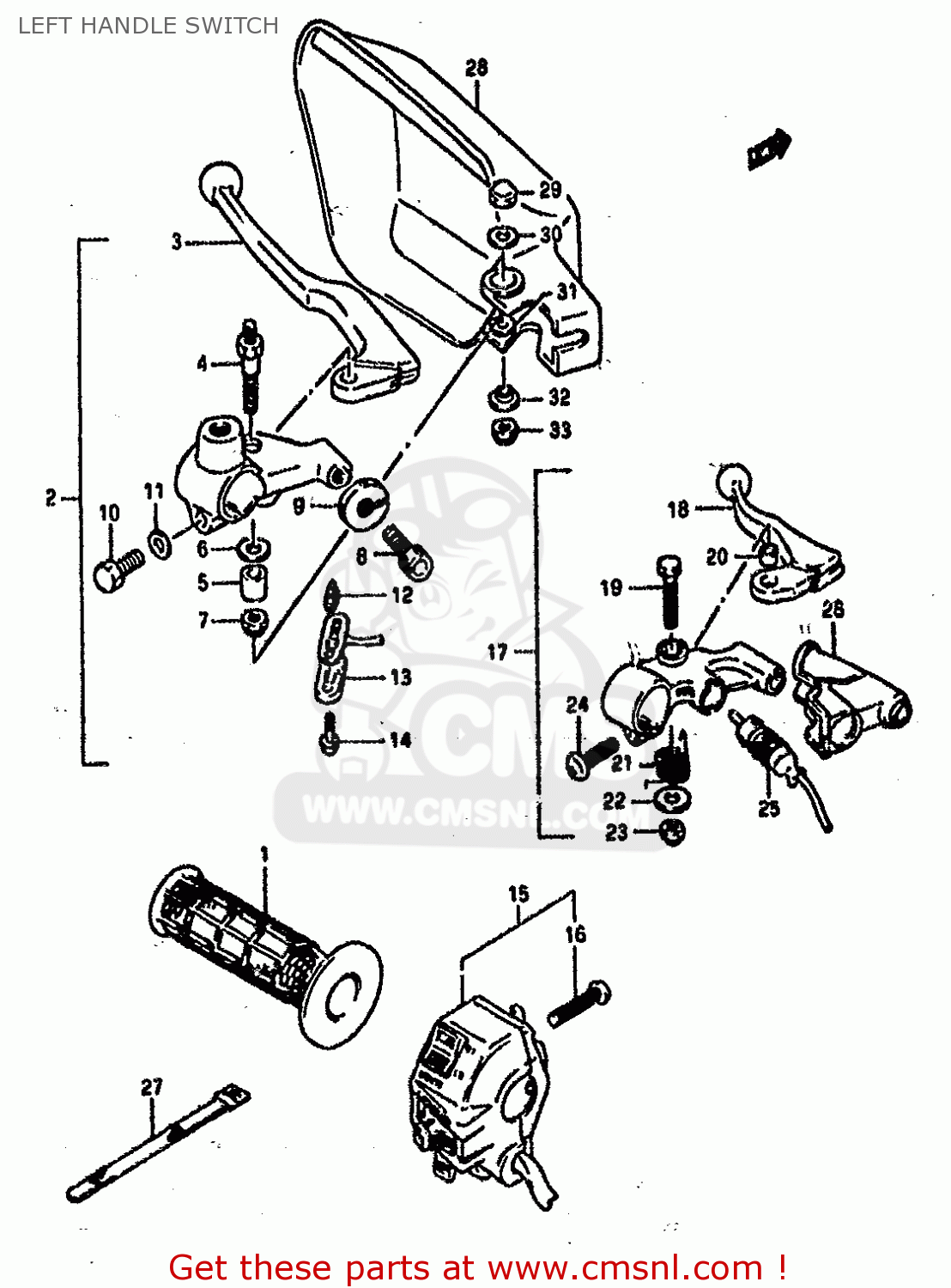

LEFT HANDLE SWITCH

ref

part #

description

quantity

1

5721112D00
ref: 1

GRIP,L

€ 14.50

2

5750044B01
ref: 2

LEVER ASSY,CLUTCH

€ 51.50

3

5762049111
ref: 3

LEVER,CLUTCH

€ 34.00

4

5753144B00
ref: 4

BOLT,LEVER SET

€ 6.50

5

5753244B00
ref: 5

SPACER,LEVER SET

€ 3.50

6

5753344B00
ref: 6

WASHER,LEVER SET

€ 2.50

7

0831921065
ref: 7

NUT

€ 2.50

8

5744144400
ref: 8

ADJUSTER,CABLE

€ 5.50

9

5744244B00
ref: 9

NUT,LOCK

€ 11.50

10

0120406204
ref: 10

BOLT

€ 2.00

11

0832221064
ref: 11

WASHER

€ 2.00

12

5746518601
ref: 12

CONTACT,SWITCH

€ 4.50

13

5748133010
ref: 13

COVER,FR BK TERMINAL BASE

€ 19.50

14

5748449110
ref: 14

SCREW

€ 1.50

15

3740044B32
ref: 15

SWITCH ASSY,HANDLE LH

€ 131.00

16

0211205305
ref: 16

SCREW

€ 1.50

17

5870044B00
ref: 17

LEVER ASSY,DECOMP

€ 76.00

18

5873144B00
ref: 18

LEVER

€ 13.50

19

0110705305
ref: 19

BOLT

€ 2.50

20

5873344B00
ref: 20

SPACER

€ 5.00

21

5873544B00
ref: 21

SPRING

€ 5.00

22

5873444B00
ref: 22

WASHER

€ 2.00

23

5763344B00
ref: 23

NUT

€ 2.50

24

0211206205
ref: 24

SCREW

€ 2.00

25

5873944B00
ref: 25

SWITCH

€ 39.50

26

5734244B00
ref: 26

COVER,DECOMP,DUST

€ 5.00

27

0940712402
ref: 27

CLAMP(L:120)

€ 3.00

28-1

5754115A1028V
ref: 28-1

COVER,KNUCKLE LH (RED)

€ 59.50

28-2

5754115A100NF
ref: 28-2

COVER,KNUCKLE,L

€ 61.50

29

0831311065
ref: 29

NUT 6MM

€ 2.00

30

0916006102
ref: 30

WASHER (6.5X20X1.6)

€ 2.00

31

0916006019
ref: 31

WASHER(6.5X16X1.2)

€ 1.50

32

0916906055
ref: 32

WASHER

€ 2.00

33

0831921065
ref: 33

NUT

€ 2.50
