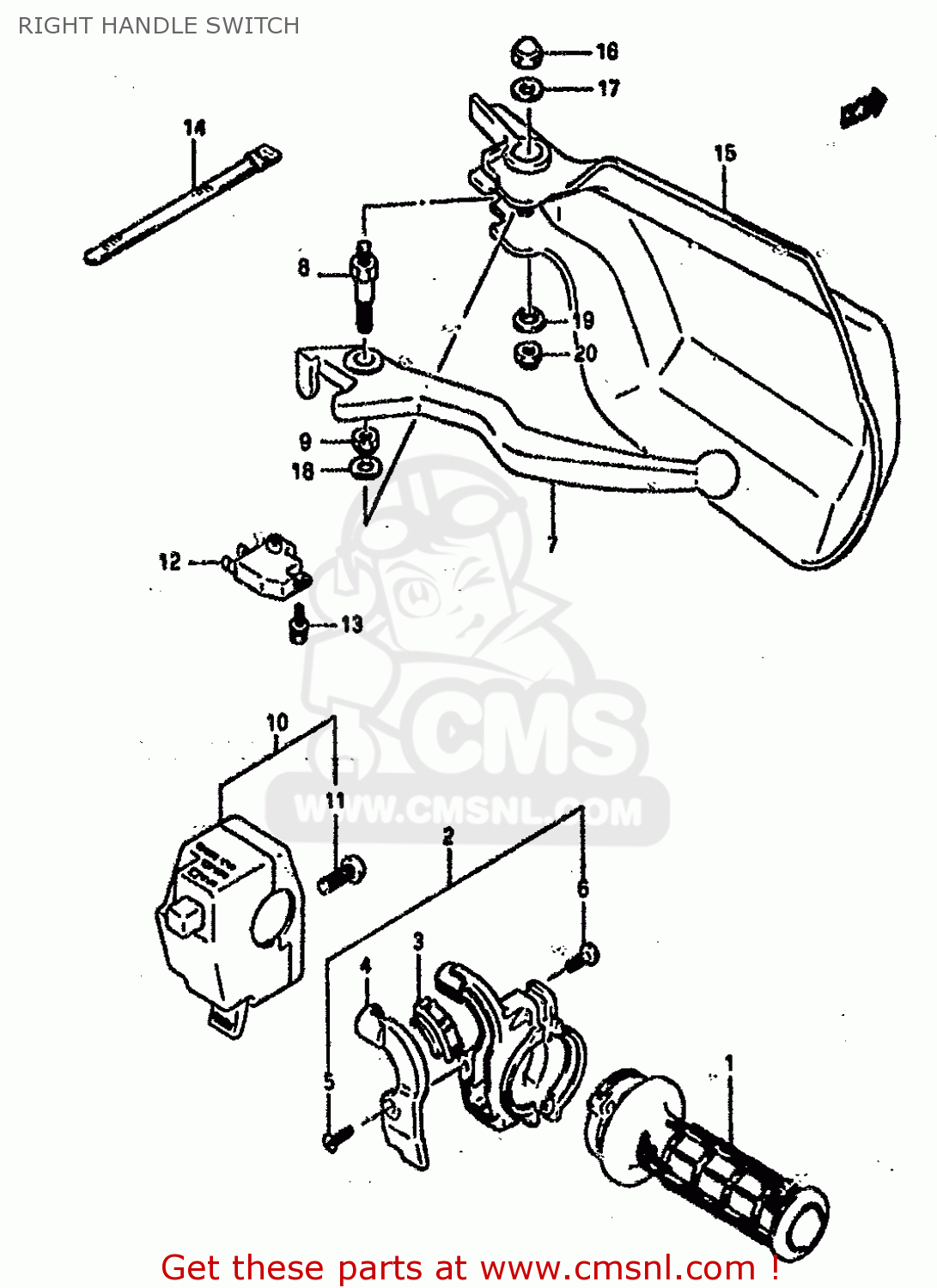

RIGHT HANDLE SWITCH

ref

part #

description

quantity

1

5711012D00
ref: 1

GRIP,THROTTLE

€ 26.50

2

5710028B00
ref: 2

CASE ASSEMBLY,THROTTLE

€ 34.00

3

5712213600
ref: 3

GUIDE PIECE,THROTTLE

€ 7.50

4

5712913601
ref: 4

COVER,THROTTLE CASE

€ 7.00

5

0213204105
ref: 5

SCREW 4X10

€ 2.50

6

0211205164
ref: 6

SCREW

€ 2.00

7

5742113001
ref: 7

LEVER,BRAKE

€ 18.00

8

5743115A00
ref: 8

BOLT,BRAKE LEVER PIVOT

€ 12.50

9

0831921065
ref: 9

NUT

€ 2.50

10

3720044B32
ref: 10

SWITCH ASSY,HANDLE RH

€ 115.00

11

0211205256
ref: 11

SCREW

€ 1.50

12

5746017C00
ref: 12

SWITCH ASSEMBLY,STOP

€ 32.50

13

5746517C00
ref: 13

SCREW

€ 1.50

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00

15-1

5734115A1028V
ref: 15-1

COVER,KNUCKLE RH (RED)

€ 96.00

15-2

5734115A100NF
ref: 15-2

COVER KNUCKLE

€ 58.00

16

0831311065
ref: 16

NUT 6MM

€ 2.00

17

0916006102
ref: 17

WASHER (6.5X20X1.6)

€ 2.00

18

0916006019
ref: 18

WASHER(6.5X16X1.2)

€ 1.50

19

0916906055
ref: 19

WASHER

€ 2.00

20

0831921065
ref: 20

NUT

€ 2.50

all assemblies
