AIR CLEANER

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

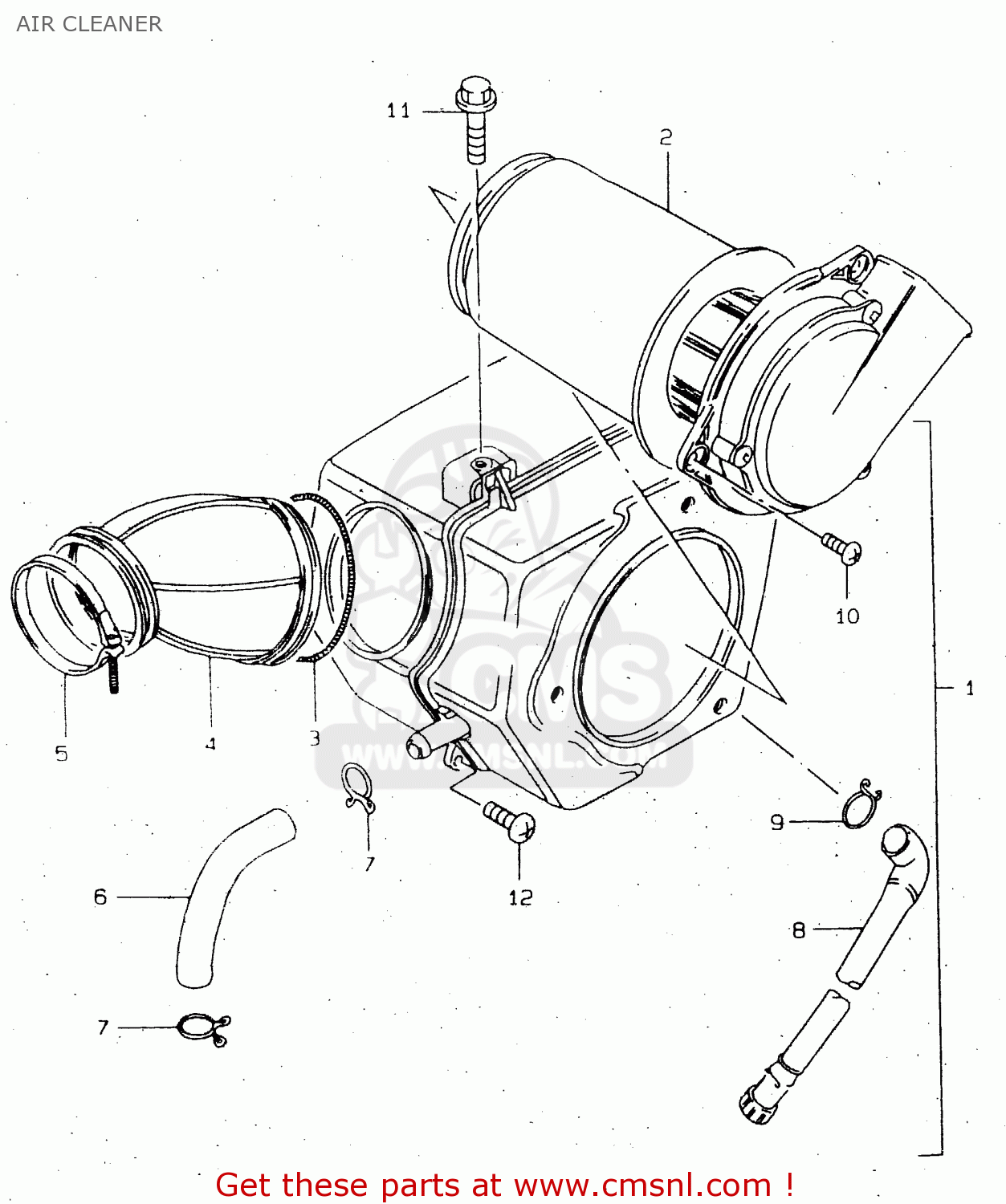

Air cleaner diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

1370025D00
ref: 1

CLEANER ASSY,AIR

€ 153.00

1378038301
ref: 2

FILTER

€ 21.50

1382638300
ref: 3

CLAMP,AIR CLEANER SIDE

€ 3.00

1388138300
ref: 4

TUBE,OUTLET

€ 24.50

0940256208
ref: 5

CLAMP

€ 3.50

1385338300
ref: 6

TUBE,BREATHER

€ 8.00

0940114301
ref: 7

CLIP

€ 2.00

1387021308
ref: 8

TUBE,DRAIN

€ 16.50

0940113409
ref: 9

CLIP

€ 2.50

0214205127
ref: 10

SCREW

€ 1.50

0158006163
ref: 11

BOLT

€ 2.50

0214206163
ref: 12

SCREW

€ 2.50
