FRAME

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

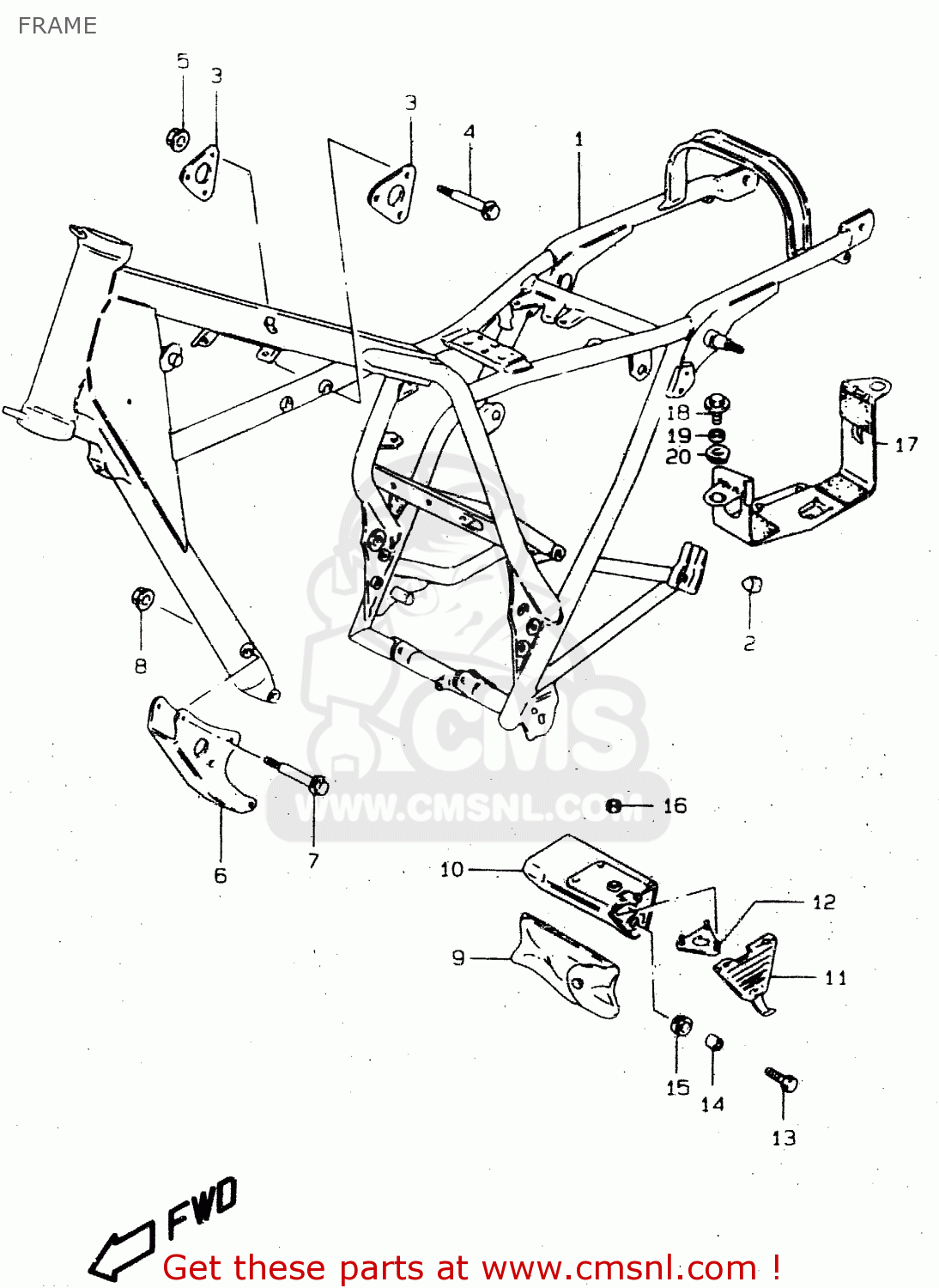

Frame diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

FRAME GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37
FRAME GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37
FRAME GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37
prices are in EUR
ref
part #
description
quantity
1
4110038360019
ref: 1
E22
FRAME(BLACK)
€ 940.50
1
4110038350019
ref: 1
FRAME(BLACK)
€ 680.50
2
0925015010
ref: 2
PLUG(OD:19)
0925015010
€ 2.00
3
4199138200
ref: 3
PLATE,ENGINE MOUNT UPR
4199138200
€ 8.00
4
0910308081
ref: 4
BOLT(8X50)
0910308081
€ 3.50
5
0831931087
ref: 5
NUT
0831931087
€ 2.50
6
4199238300
ref: 6
PLATE,ENGINE MOUNTING
€ 14.50
7
0155008653
ref: 7
BOLT
€ 3.00
8
0831931087
ref: 8
NUT
0831931087
€ 2.50
9
0980021020
ref: 9
TOOL ASSY
0980021020
€ 33.50
9
0980021021
ref: 9
E22
TOOL ASSY
0980021021
€ 33.00
10
4743105300
ref: 10
BOX,TOOL
4743105300
€ 15.00
11
4743205300
ref: 11
CAP,TOOL BOX
4743205300
€ 2.50
12
4744005301
ref: 12
PLATE,TOOL HOLDER
4744005301
€ 3.00
13
0911606168
ref: 13
BOLT(6X16)
0911606168
€ 2.50
14
0918006038
ref: 14
SPACER(6.1X9X7.5)
0918006038
€ 2.00
15
0932008021
ref: 15
CUSHION
0932008021
€ 4.00
16
0831610063
ref: 16
NUT
0831610063
€ 2.50
17
4154038301
ref: 17
HOLDER,BATTERY
4154038301
€ 18.50
18
0911606168
ref: 18
BOLT(6X16)
0911606168
€ 2.50
19
0918006038
ref: 19
SPACER(6.1X9X7.5)
0918006038
€ 2.00
20
0932008021
ref: 20
CUSHION
0932008021
€ 4.00
