HEADLAMP (E22,E25,E34,E39,E71)

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

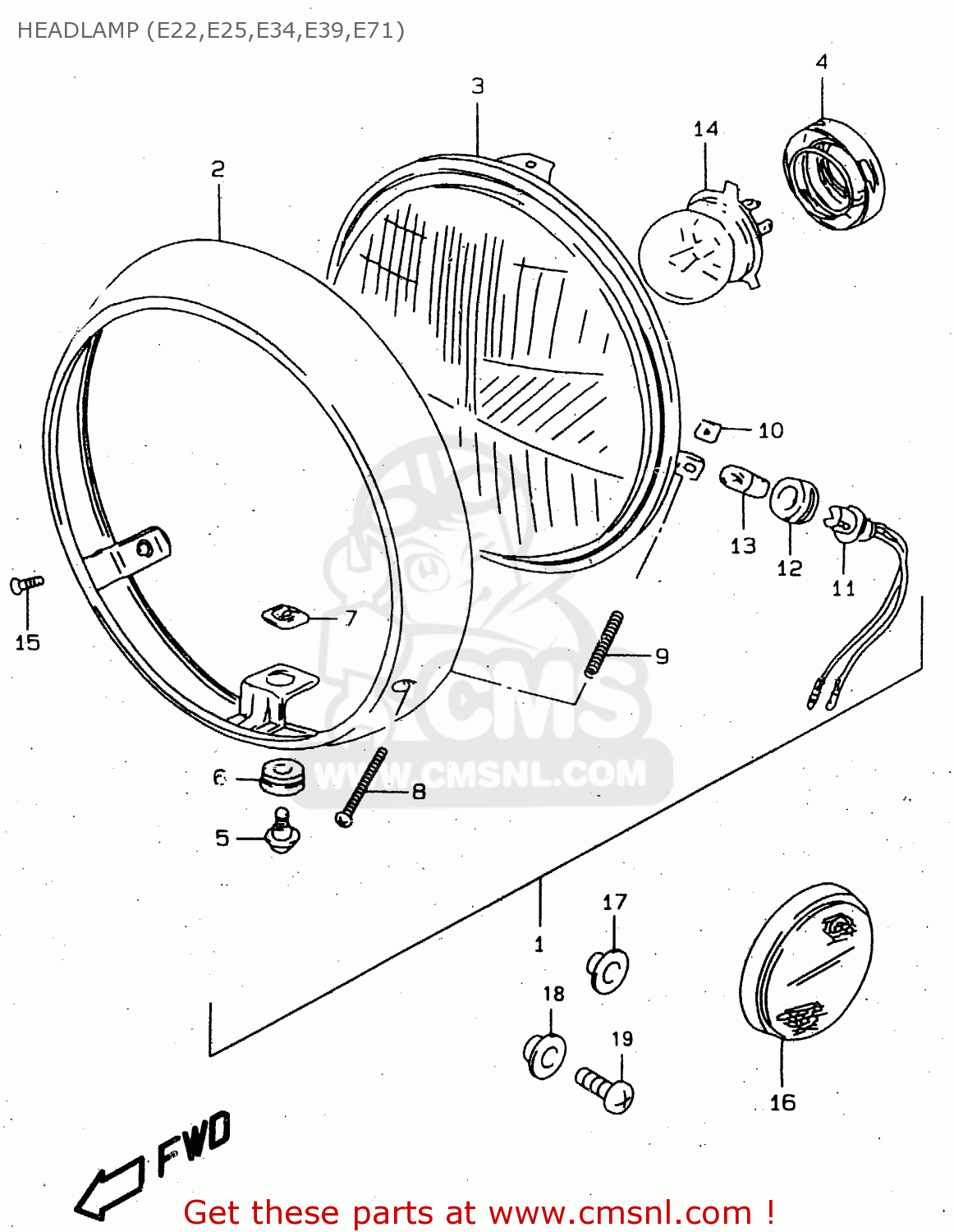

Headlamp (e22,e25,e34,e39,e71) diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

3510038350999
ref: 1

HEADLAMP ASSY

€ 190.50

3511145221
ref: 2

RIM

€ 50.50

3512138340
ref: 3

LAMP UNIT

€ 91.50

3513601440
ref: 4

HOLDER,BULB

€ 7.00

3513638A00
ref: 5

SCREW,MOUNTING

€ 2.50

3513945230
ref: 6

CUSHION

€ 1.50

3515548510
ref: 7

NUT

€ 2.00

3515138300
ref: 8

SCREW

€ 2.50

3515448510
ref: 9

SPRING

€ 2.50

3513545600
ref: 10

NUT

€ 3.00

3611849320
ref: 11

SOCKET

€ 12.00

3611622630
ref: 12

JOINT,RUBBER

€ 5.00

0947112063
ref: 13
1

BULB(12V4W)

€ 6.00

0947112048
ref: 14

BULB(12V45/40W)

€ 7.50

0212205127
ref: 15

SCREW

€ 2.50

3595015500
ref: 16
E25,E39

REFLEX REFLECTOR ASSY,FR SIDE

€ 13.50

0916905008
ref: 17
E25,E39

WASHER

€ 3.00

0916905008
ref: 18

WASHER

€ 3.00

0214205087
ref: 19

SCREW

€ 2.00
