HEADLAMP (E1,E2,P37,E24)

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

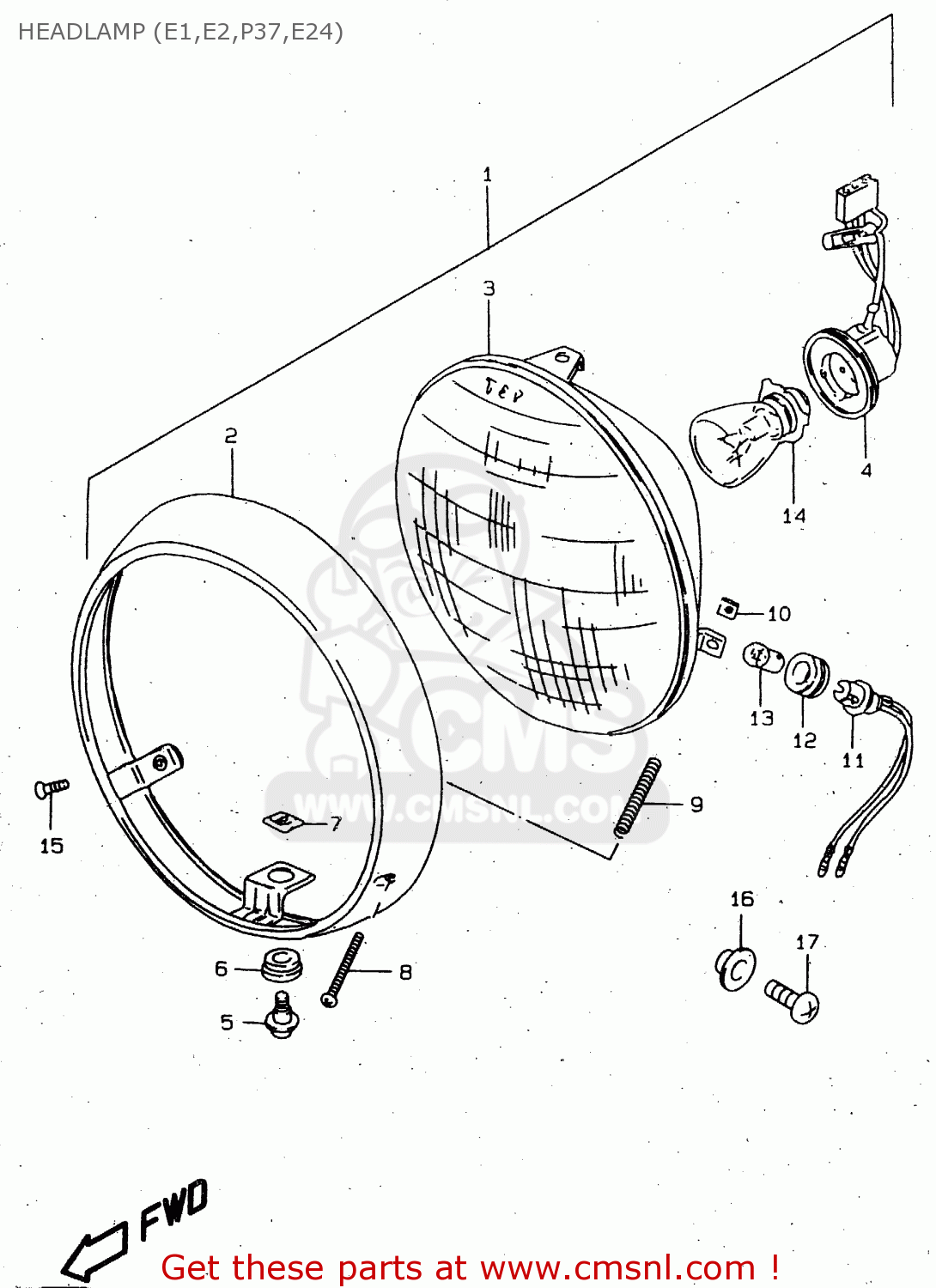

Headlamp (e1,e2,p37,e24) diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

3510038300
ref: 1
E1,E2,P37

HEADLAMP ASSY

€ 130.00

3510038360999
ref: 1
E24

HEADLAMP ASSY

€ 0.00

3511145231
ref: 2

RIM

€ 50.00

3512138300
ref: 3
E1,E2,P37

LAMP UNIT

€ 60.50

3512138360
ref: 3
E24

LAMP UNIT

€ 0.00

3517136X50
ref: 4
E1,E2,P37

SOCKET,HEADLAMP

€ 15.50

3517338A00
ref: 4
E24

COVER,SOCKET

€ 12.50

3513638A00
ref: 5

SCREW,MOUNTING

€ 2.50

3513945230
ref: 6

CUSHION

€ 1.50

3515548510
ref: 7

NUT

€ 2.00

3515138300
ref: 8

SCREW

€ 2.50

3515448510
ref: 9

SPRING

€ 2.50

3513545600
ref: 10

NUT

€ 3.00

3611849320
ref: 11

SOCKET

€ 12.00

3611622630
ref: 12

JOINT,RUBBER

€ 5.00

0947112001
ref: 13
E1,E2,P37

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

0947112063
ref: 13
E24

BULB(12V4W)

€ 6.00

0947112044
ref: 14
E1,E2,P37

BULB

€ 8.50

0947112060
ref: 14
E24

BULB(12V60/55W,H4)

€ 8.00

0212205127
ref: 15

SCREW

€ 2.50

0916905008
ref: 16

WASHER

€ 3.00

0214205087
ref: 17

SCREW

€ 2.00
