FRONT WHEEL (GN250T/W/X)

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

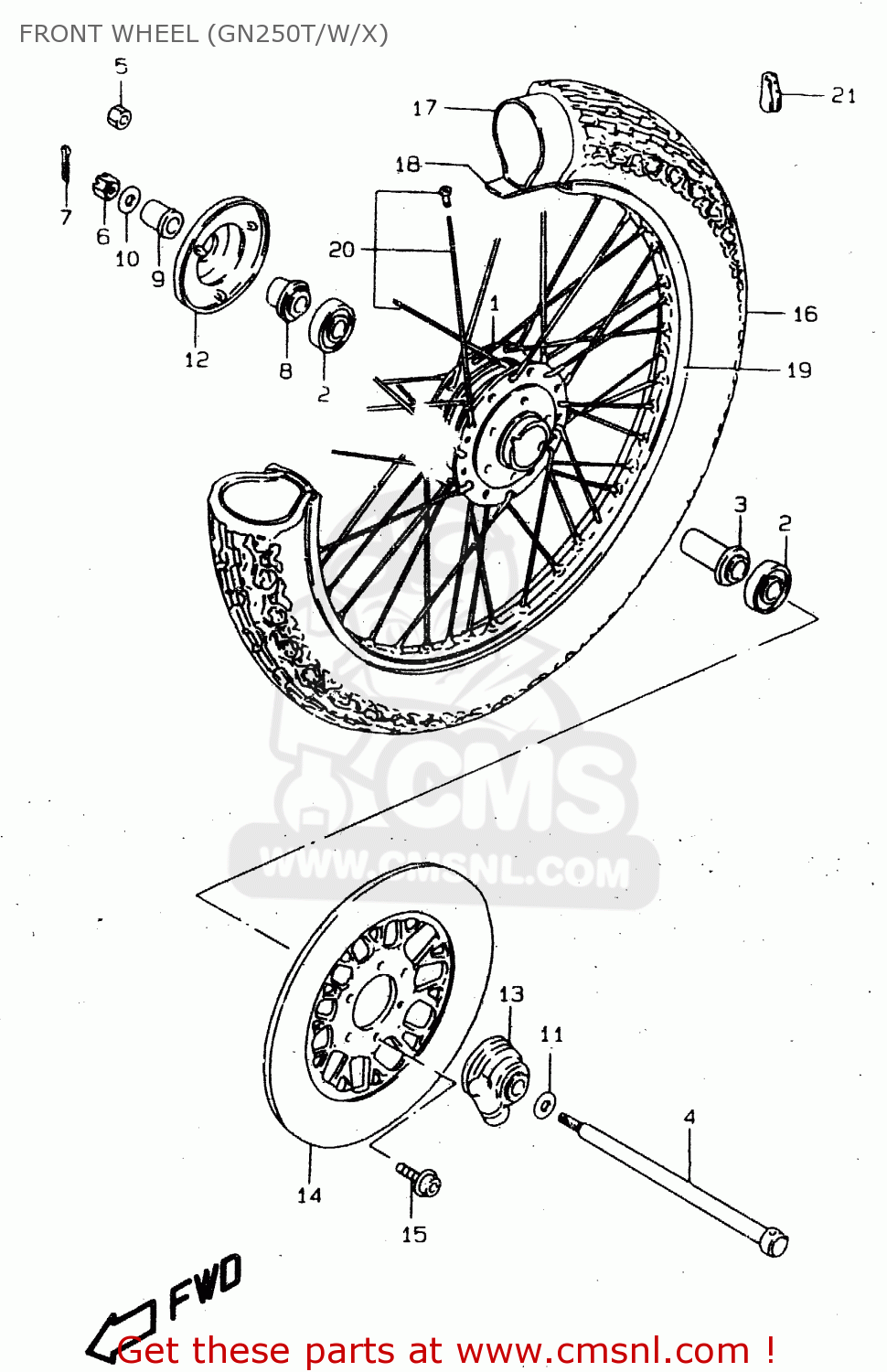

Front wheel (gn250t/w/x) diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

5411147021
ref: 1

HUB,FR WHEEL

€ 192.50

0812363027
ref: 2

BEARING

€ 19.00

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

5471149000
ref: 4

AXLE,FR

€ 79.50

0915912011
ref: 5
E22

NUT

€ 8.50

0914112003
ref: 6
E2,E4,E24,E25,E34,E3

NUT

€ 4.50

0411130308
ref: 7
E2,E4,E24,E25,E34,E3

COTTER PIN

€ 1.50

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

5474149101
ref: 9

SPACER

€ 14.00

0832201127
ref: 10

WASHER

€ 2.00

0916015002
ref: 11

WASHER(15.5X26X2.3)

€ 2.00

5487145000
ref: 12

COVER,FR HUB,R

€ 6.00

5460037301
ref: 13

BOX ASSY,SPEEDOMETER GEAR

€ 90.00

5921145200
ref: 14

DISC,FR BRAKE

€ 144.00

0910608131
ref: 15

BOLT(8X30)

€ 3.50

5510038331
ref: 16

TIRE,FRONT 3.00 S18

€ 123.00

5520011601
ref: 17

TUBE,INNER

€ 24.50

5526111010
ref: 18

PROTECTOR,INNER TUBE

€ 3.50

5531118420
ref: 19

RIM,FR WHEEL

€ 98.50

5532018420
ref: 20

SPOKE ASSY,FR WHEEL

€ 42.00

5541111000
ref: 21

BALANCER,WHEEL (B)

€ 4.50

5541211000
ref: 21

BALANCER,WHEEL (30G)

€ 8.00
