CRANK BALANCER

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

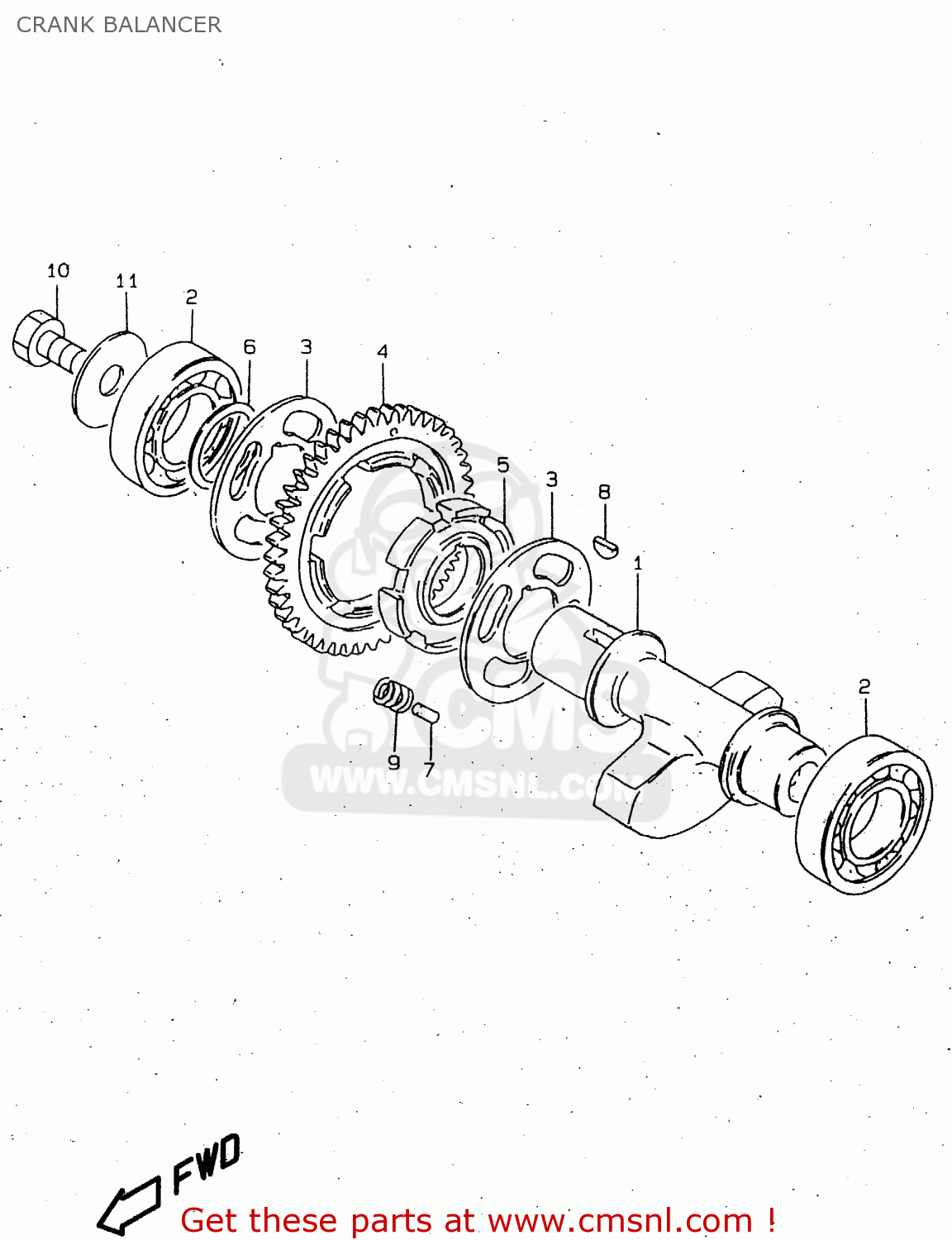

Crank balancer diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

CRANK BALANCER GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

CRANK BALANCER GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

1

1265138202
ref: 1

SHAFT,CRANK BALANCER

€ 101.50

2

0926225084
ref: 2

BEARING(25X62X17)

€ 29.00

3

1266338200
ref: 3

WASHER

€ 6.00

4

1266638200
ref: 4

GEAR,CRANK BAL DRIVEN(NT:46)

€ 128.00

5

1266938200
ref: 5

RACE,CRK BAL DRIVEN GR INNER

€ 37.00

6

0822125365
ref: 6
MODEL T

SHIM

€ 4.50

6

0918125186
ref: 6
MODEL

SHIM(25X36X0.5)

€ 4.50

7

0920204017
ref: 7

PIN(4.5X9.5)

€ 3.00

8

0942004008
ref: 8

KEY

€ 3.50

9

0944009015
ref: 9

SPRING

€ 25.50

10

0150012163
ref: 10

Bolt

€ 3.50

11

0916012076
ref: 11

WASHER(12X40X2.5)

€ 5.50
