REAR SWINGING ARM

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

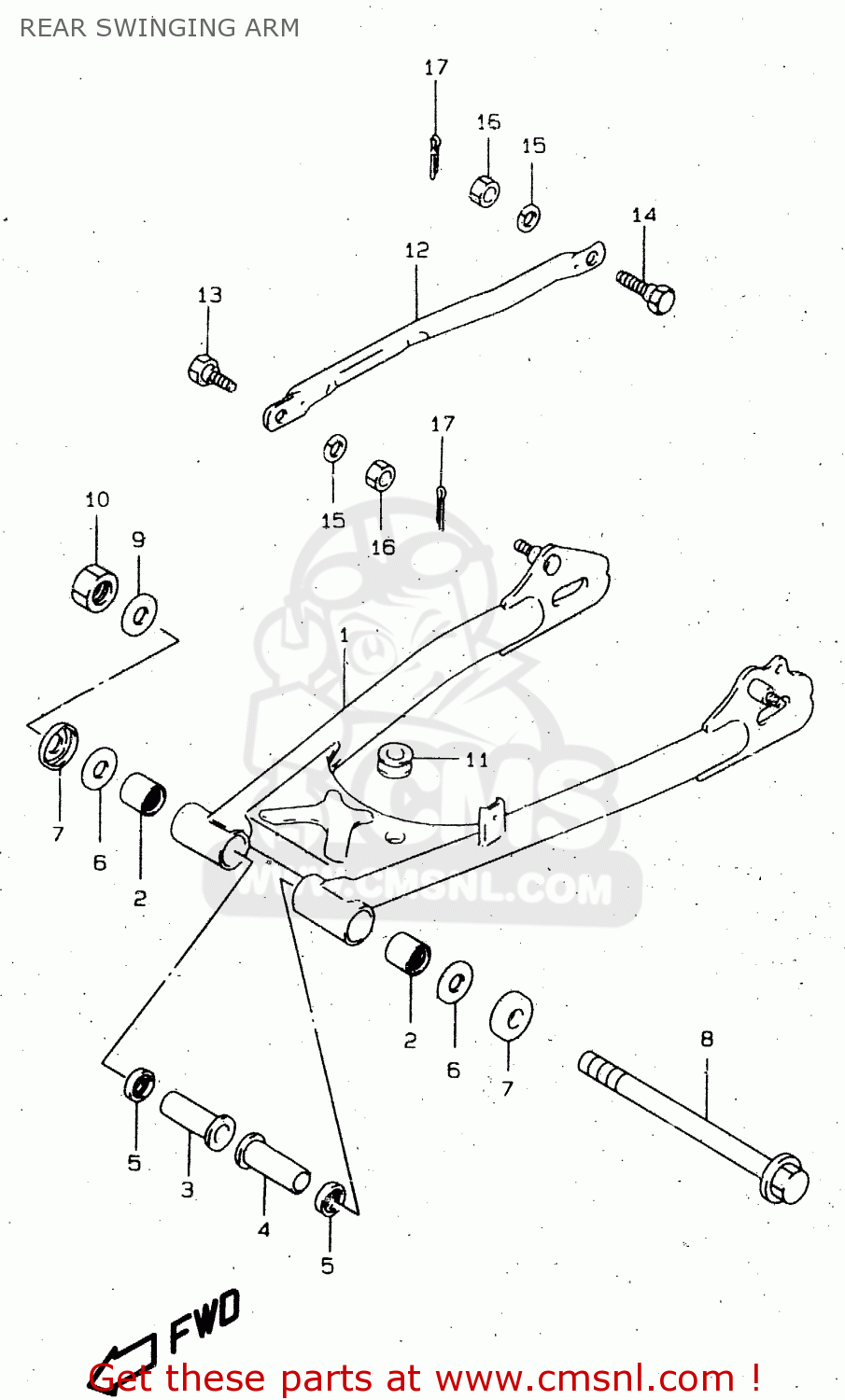

Rear swinging arm diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

6100038300019
ref: 1

SWINGINGARM ASSY,RR

€ 210.00

0926320041
ref: 2

BEARING(20X27X20)

€ 15.00

6125138300
ref: 3

SPACER,RR SWGARM PIVOT,R

€ 17.00

6125238300
ref: 4

SPACER,RR SWGARM PIVOT,L

€ 18.50

0928620001
ref: 5

SEAL,OIL(20X27X5)

€ 2.50

0821115321
ref: 6

WASHER

€ 2.50

6126238300
ref: 7

COVER,RR SWINGINGARM PIVOT

€ 6.00

6121138301
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 23.50

0832201143
ref: 9

WASHER

€ 2.00

0831921148
ref: 10

NUT 14MM

€ 3.00

0932008020
ref: 11

CUSHION

€ 3.00

6431138301019
ref: 12

TORQUE LINK,REAR BRAKE (

€ 12.00

0911108012
ref: 13

BOLT(8X22.5)

€ 3.00

0911108013
ref: 14

BOLT(8X26.5)

€ 3.00

0916208008
ref: 15

WASHER,LOCK

€ 2.00

0914008008
ref: 16

NUT

€ 1.50

0411120208
ref: 17

PIN 20X20

€ 1.50
