STAND

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

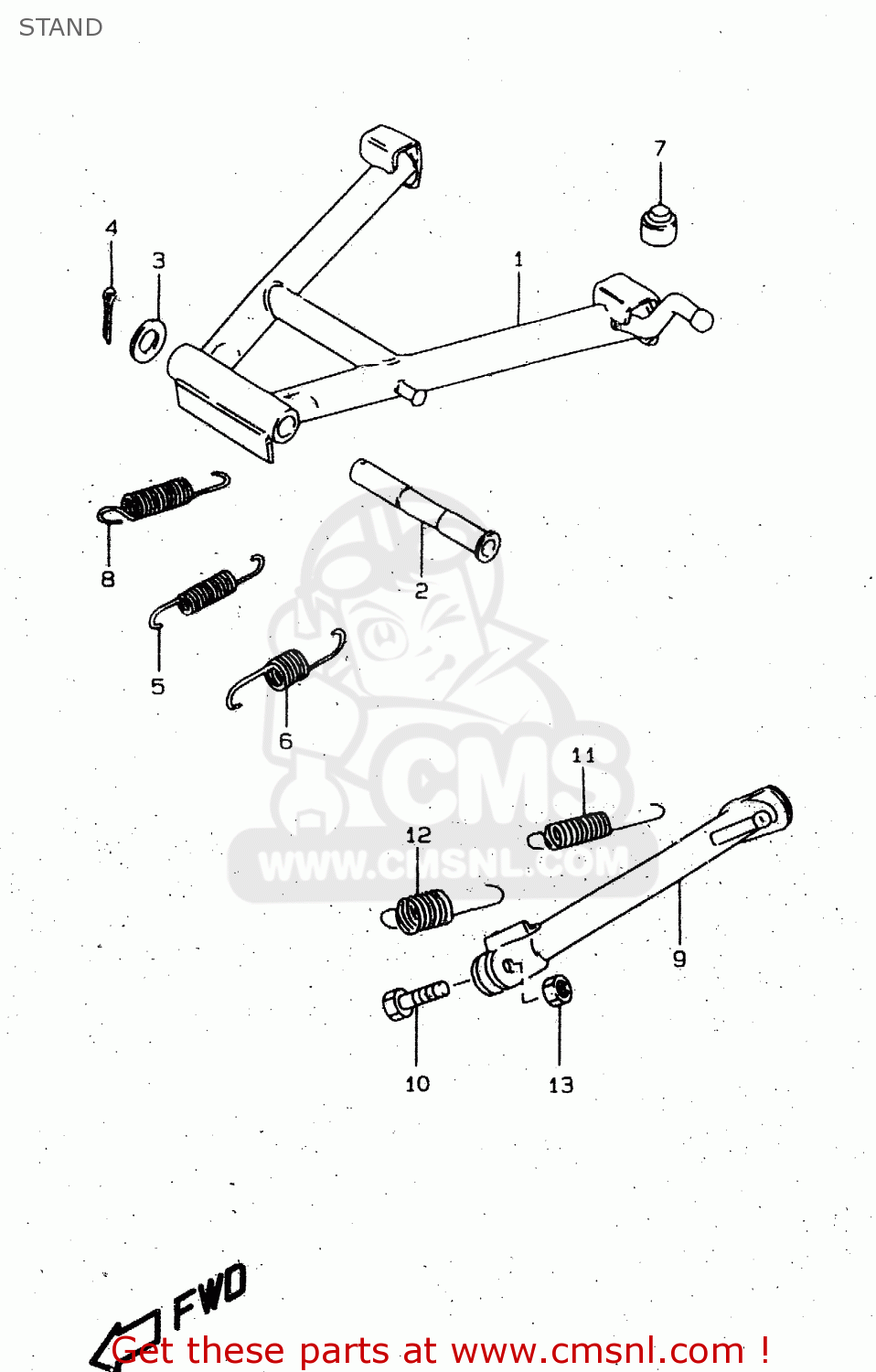

Stand diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

4210038301
ref: 1

STAND,CTR

€ 93.50

4221136504
ref: 2

SHAFT,CTR STAND

€ 20.00

0916016031
ref: 3

WASHER(16.2X30X2.6)

€ 3.50

0411130308
ref: 4

COTTER PIN

€ 1.50

0944315013
ref: 5
E22

SPRING

€ 22.50

0944322003
ref: 6
E22

SPRING

€ 7.00

0932110001
ref: 7

CUSHION

€ 2.50

0944318006
ref: 8

SPRING

€ 5.50

4231038351
ref: 9

STAND,PROP

€ 141.50

0911110047
ref: 10

BOLT(10X30)

€ 4.50

0944312025
ref: 11

SPRING

€ 18.50

0944319006
ref: 12

SPRING

€ 18.00

0914010043
ref: 13
MODEL T

NUT

€ 2.00

0915910027
ref: 13
MODEL W

NUT

€ 3.00

0831921103
ref: 13
MODEL X

NUT

€ 2.00
