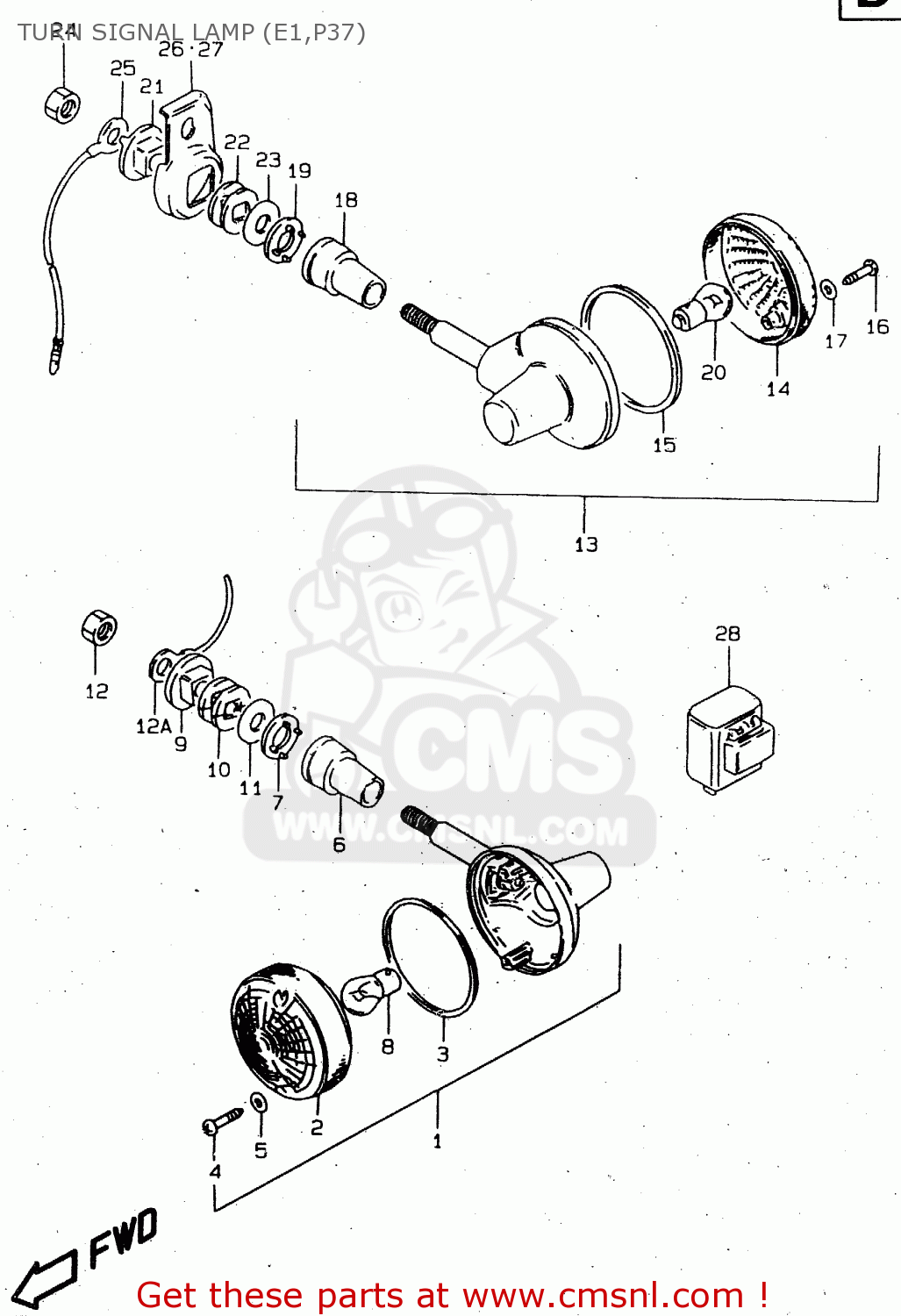

TURN SIGNAL LAMP (E1,P37)

ref

part #

description

quantity

1

3560347211999
ref: 1

LAMP ASSY,TURNSIGNAL

€ 97.50

2

3561228620
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104208
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3561747210
ref: 6

COVER,STAY

€ 5.50

7

3566847290
ref: 7

CUSHION

€ 3.00

8

0947112006
ref: 8

BULB(12V23W,STANLEY,A4577A)

€ 4.00

9

3569532401
ref: 9

SPACER

€ 4.50

10

3569032200
ref: 10

CUSHION

€ 38.50

11

0916010006
ref: 11
MODEL T

WASHER (10.5X30X2.3)

€ 2.50

11

0916010501
ref: 11
MODEL W/X

WASHER(10.5X30X2.3)

€ 2.50

12

0831000107
ref: 12

NUT

€ 2.50

12A

3666033000
ref: 12A

LEAD WIRE,EARTH

€ 5.00

13

3560347211999
ref: 13

LAMP ASSY,TURNSIGNAL

€ 97.50

14

3561228620
ref: 14

LENS

€ 10.50

15

3561328620
ref: 15

GASKET (NAS)

€ 7.00

16

0321104208
ref: 16

SCREW

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

3561747210
ref: 18

COVER,STAY

€ 5.50

19

3566548610
ref: 19

CUSHION

€ 0.00

20

0947112006
ref: 20

BULB(12V23W,STANLEY,A4577A)

€ 4.00

21

3569532401
ref: 21

SPACER

€ 4.50

22

0932015004
ref: 22

CUSHION

€ 5.00

23

0916010501
ref: 23

WASHER(10.5X30X2.3)

€ 2.50

24

0831000107
ref: 24

NUT

€ 2.50

25

3686244000
ref: 25

LEAD WIRE,EARTH

€ 4.00

26

3562138300
ref: 26

BRACKET,RR TURNSIGNAL LAMP,R

€ 7.00

27

3564138300
ref: 27

BRACKET,RR TURNSIGNAL LAMP,L

€ 7.00

28

3861031X50
ref: 28

RELAY ASSY,TURNSIGNAL

€ 54.50

all assemblies
