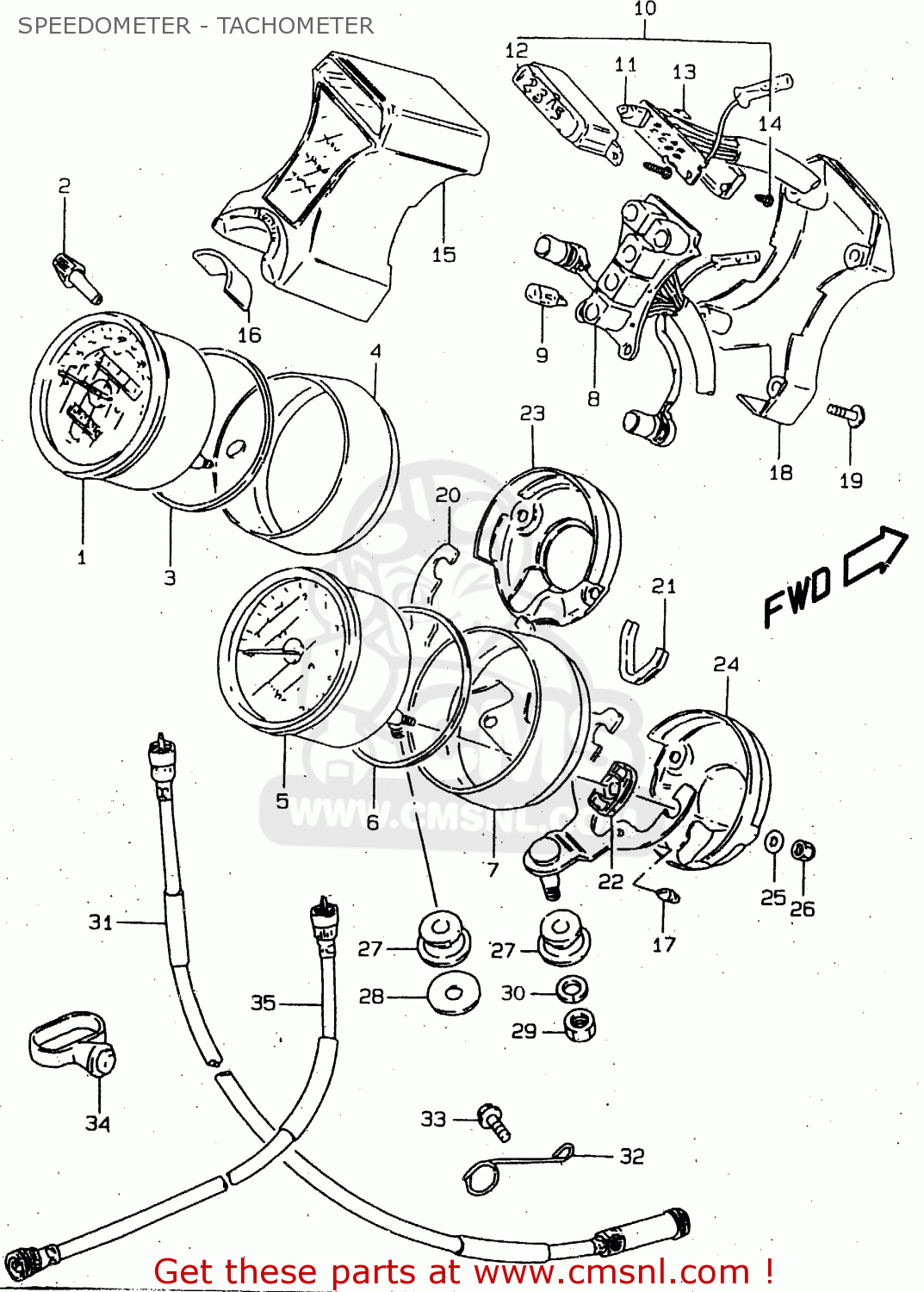

SPEEDOMETER - TACHOMETER - GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

ref

part #

description

quantity

1

3411038330
ref: 1

SPEEDOMETER

€ 0.00

1

3411038300
ref: 1
E1,E4,E22,E24,E25,E3

SPEEDOMETER

€ 264.50

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418945300
ref: 3

CUSHION

€ 10.00

4

3415145300
ref: 4

COVER,SPEEDOMETER

€ 16.00

5

3421038300
ref: 5

TACHOMETER ASSY

€ 229.00

6

3418945300
ref: 6

CUSHION

€ 10.00

7

3425145300
ref: 7

COVER,TACHOMETER

€ 12.00

8

3417337380
ref: 8

SOCKET

€ 35.50

9

0947112028
ref: 9

BULB(12V3.4W,T10)

€ 3.50

10

3645038301
ref: 10

INDICATOR ASSY,GEAR POSITION

€ 113.00

11

0947112071
ref: 11

BULB(14V1.12W)

€ 5.00

12

3645249401
ref: 12

CASE,GEAR INDICATOR

€ 12.50

13

3645445100
ref: 13

COVER,LWR

€ 7.00

14

0351103146
ref: 14
<-36456-45100

SCREW

€ 2.00

15

3638037380
ref: 15

BOX,PILOT

€ 73.50

16

3499347000
ref: 16

SEAL,IGNITION SWITCH

€ 3.00

17

3419144310
ref: 17

CUSHION

€ 3.00

18

3638344310
ref: 18

COVER,PILOT BOX LWR

€ 20.00

19

0211204103
ref: 19

SCREW

€ 1.00

20

3495038300
ref: 20

BRACKET

€ 38.50

21

3495344310
ref: 21

BRACKET,COVER

€ 6.50

22

3418944311
ref: 22

CUSHION,METER

€ 2.50

23

3419345300
ref: 23

ORNAMENT,SPEEDOMETER

€ 35.50

24

3429345300
ref: 24

COVER,TACHOMETER

€ 35.50

25

0832201057
ref: 25

WASHER

€ 2.50

26

0831310057
ref: 26

NUT

€ 1.50

27

3495631001
ref: 27

CUSHION,METER BRACKET

€ 4.50

28

0916008057
ref: 28
MODEL T

WASHER (8.5X20X1.6)

€ 2.00

28

0916008135
ref: 28
MODEL W/X

WASHER(8.5X28X1.6)

€ 2.00

29

0831000083
ref: 29

NUT

€ 1.50

30

0832101083
ref: 30

LOCK WASHER

€ 2.50

31

3491038301
ref: 31

CABLE ASSY,SPEEDOMETER

€ 60.50

32

3493837000
ref: 32

GUIDE,SPEEDOMETER CABLE

€ 14.50

33

0155006163
ref: 33

BOLT

€ 2.50

34

5862121203A
ref: 34

GUIDE,CABLE

€ 7.50

35

3494038300
ref: 35

CABLE ASSY,TACHOMETER

€ 40.00

SPEEDOMETER - TACHOMETER

all assemblies
