CHAIN CASE

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

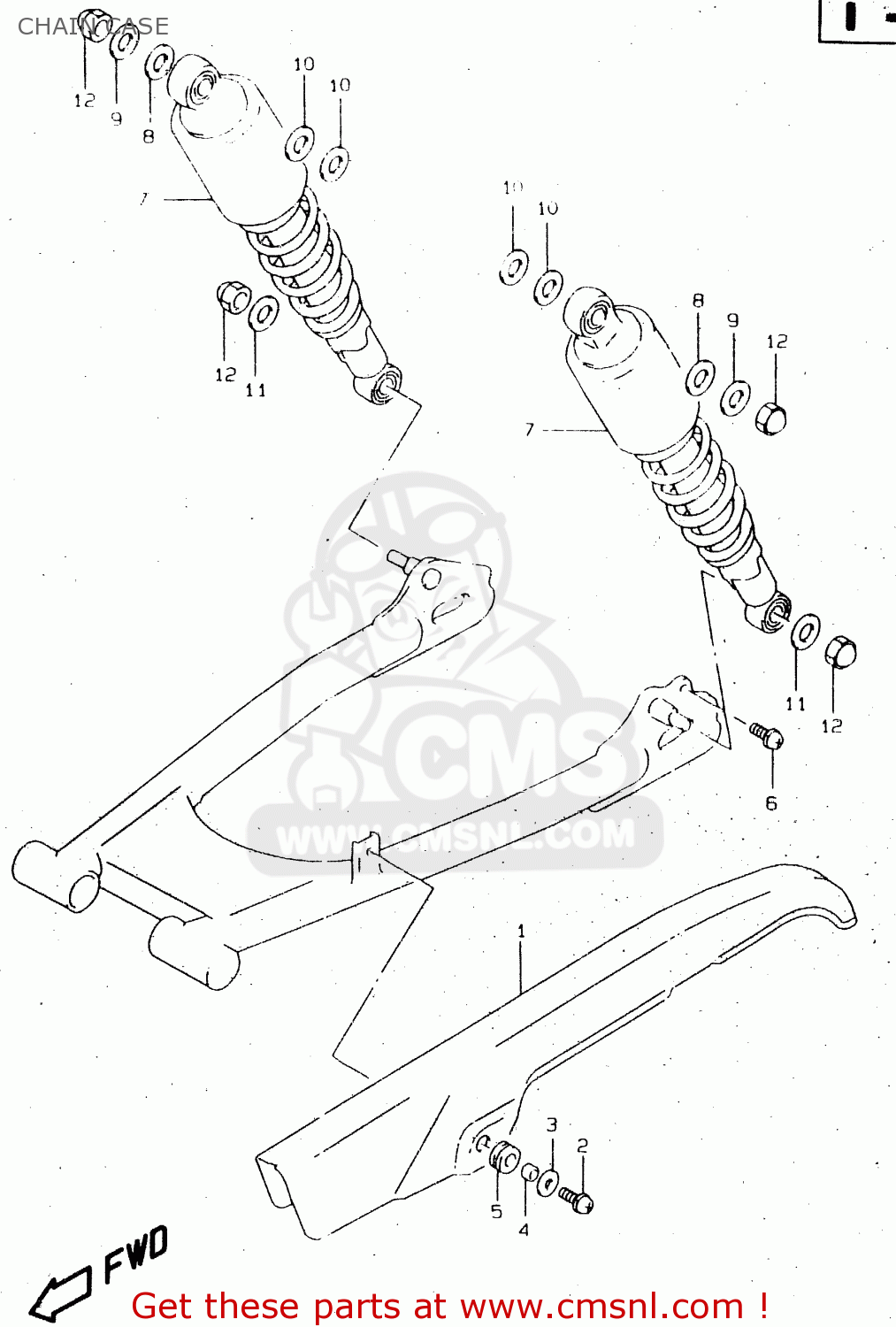

Chain case diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

CHAIN CASE GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

CHAIN CASE GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

1

6131038300
ref: 1

CASE,CHAIN

€ 140.50

2

0211236163
ref: 2

SCREW

€ 2.50

3

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

4

0918006259
ref: 4

SPACER(6.5X9X7)

€ 2.50

5

0932008021
ref: 5

CUSHION

€ 4.00

6

0211236163
ref: 6

SCREW

€ 2.50

7

6210038310
ref: 7

ABSORBER ASSY,RR SHOCK

€ 172.50

8

0916010127
ref: 8
E22

WASHER (10.5X24X2.3)

€ 2.00

8

0916010127
ref: 8
E1,E2,E4,E24,E25,E34

WASHER (10.5X24X2.3)

€ 2.00

9

0916010112
ref: 9

WASHER

€ 2.00

10

0832201127
ref: 10

WASHER

€ 2.00

11

0916010127
ref: 11

WASHER (10.5X24X2.3)

€ 2.00

12

0831310107
ref: 12

NUT

€ 2.50
