STARTING MOTOR

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

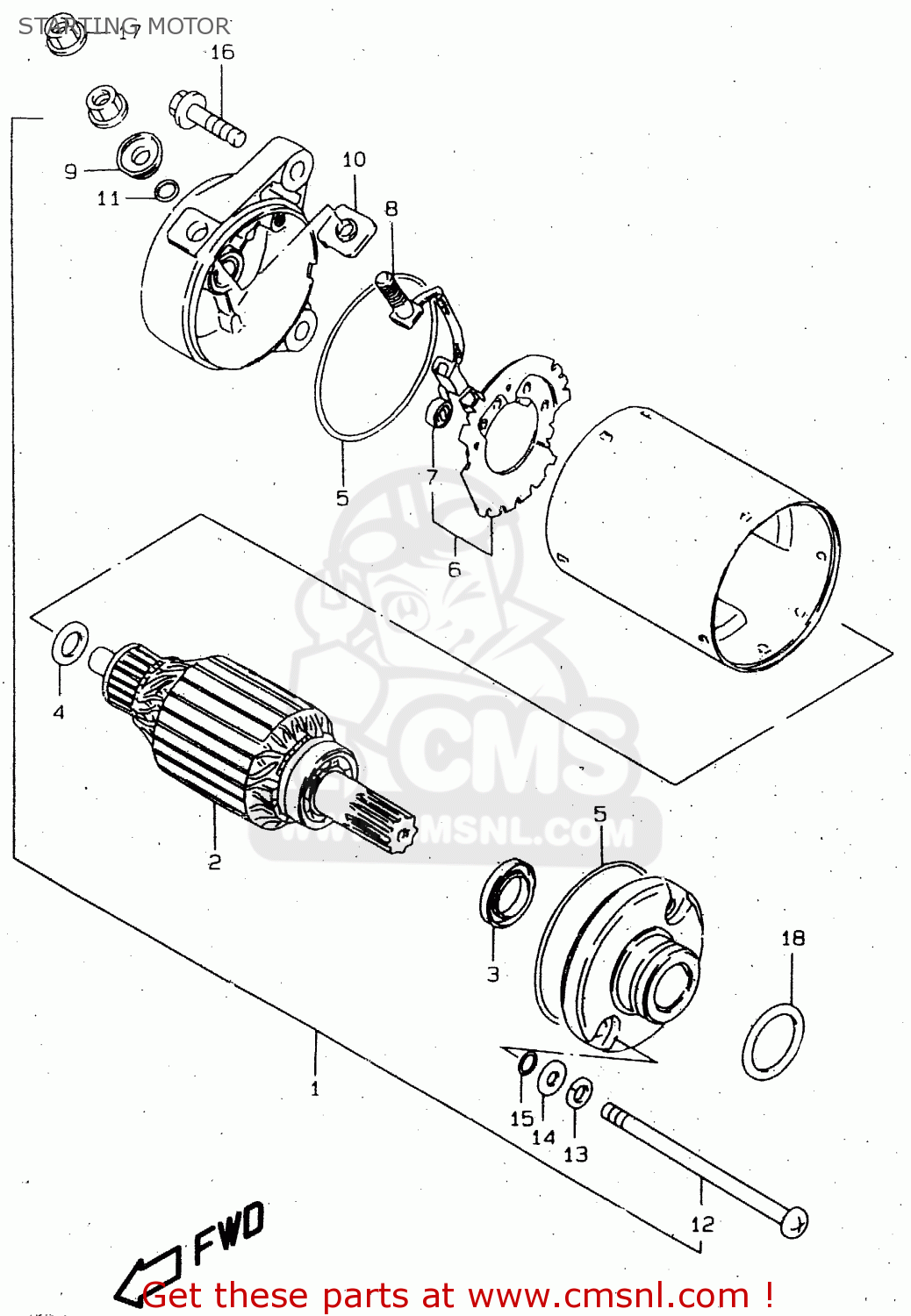

Starting motor diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

prices are in EUR

ref

part #

description

quantity

3110038300H17
ref: 1

MOTOR ASSY,STARTING

€ 707.00

3131149211H17
ref: 2

ARMATURE

€ 255.00

3115349210
ref: 3

SEAL,OIL

€ 15.00

3117043400
ref: 4

SHIM SET,STARTING MOTOR

€ 3.50

3126444110
ref: 5

O RING

€ 8.00

3113227A01
ref: 6

HOLDER,BRUSH

€ 47.00

3113565010
ref: 7

SPRING

€ 3.00

3113038300
ref: 8

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

3117238300
ref: 9

BUSHING

€ 4.00

3117138300
ref: 10

BUSH,B

€ 5.50

3114338300
ref: 11

O RING

€ 3.50

3128187402
ref: 12

BOLT

€ 11.50

0832101067
ref: 13

WASHER,LOCK

€ 2.50

3116138300
ref: 14

WASHER

€ 2.50

3115638300
ref: 15

O RING

€ 3.00

0155006257
ref: 16

BOLT

€ 2.50

0836135068
ref: 17

NUT

€ 2.00

0928024003
ref: 18

O RING(D:3,ID:24.5)

€ 2.00
