CYLINDER

GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

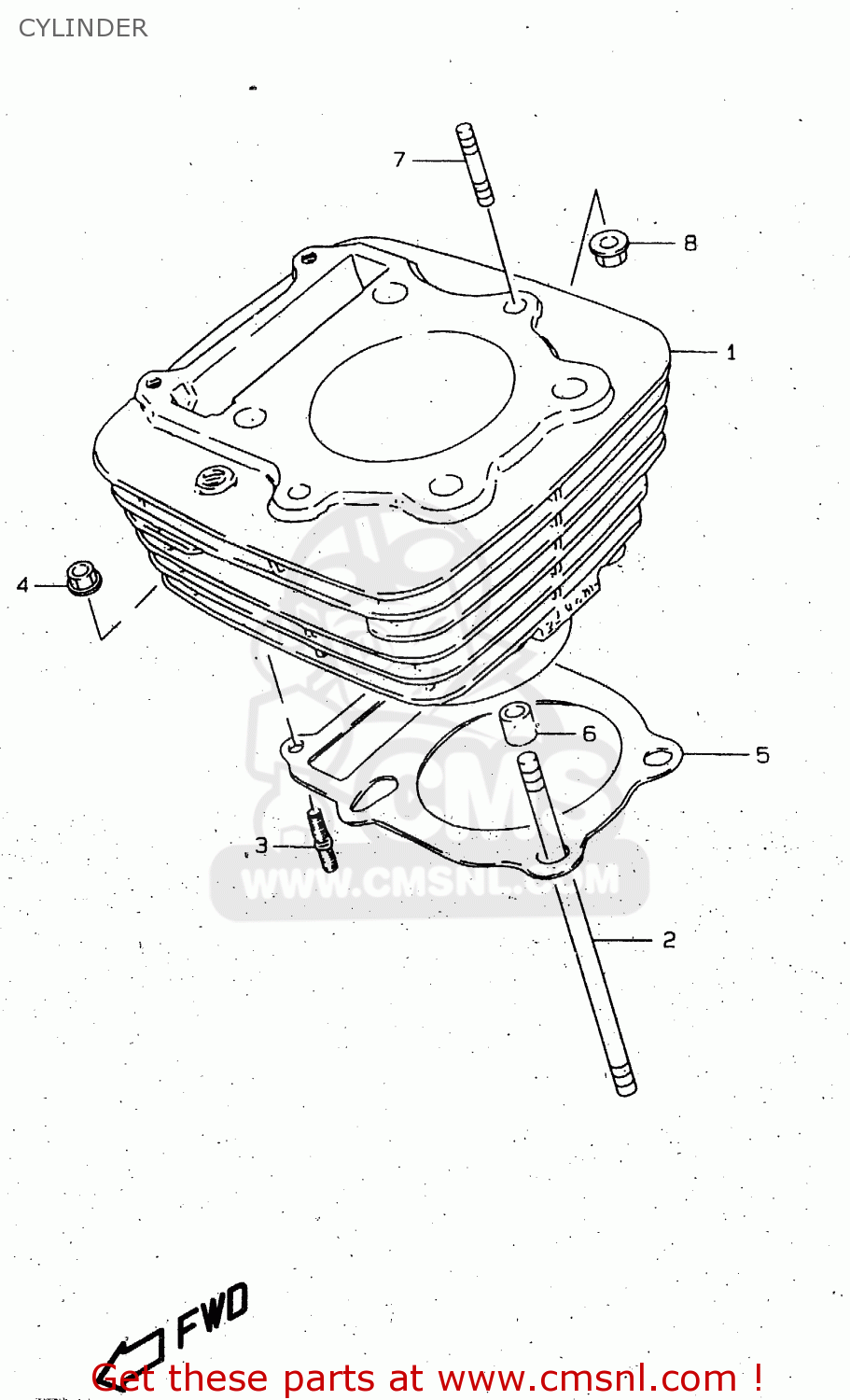

Cylinder diagram GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37

CYLINDER GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37
CYLINDER GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37
CYLINDER GN250 1999 (X) (E02 E04 E22 E24 E25 E34 E39 E71) / P37
prices are in EUR
ref
part #
description
quantity
1
1121038203
ref: 1
CYLINDER
1121038203
€ 1,003.50
2
0910810030
ref: 2
BOLT,STUD
0910810030
€ 7.50
3
0142106208
ref: 3
STUD 6X20
0142106208
€ 2.50
4
0831610067
ref: 4
NUT
0831610067
€ 2.00
5
1124138301
ref: 5
GASKET,CYLINDER (NAS)
1124138301
€ 9.50
6
0421113189
ref: 6
PIN
0421113189
€ 2.50
7
0142106307
ref: 7
BOLT,STUD
0142106307
€ 2.50
8
0831610067
ref: 8
NUT
0831610067
€ 2.00
