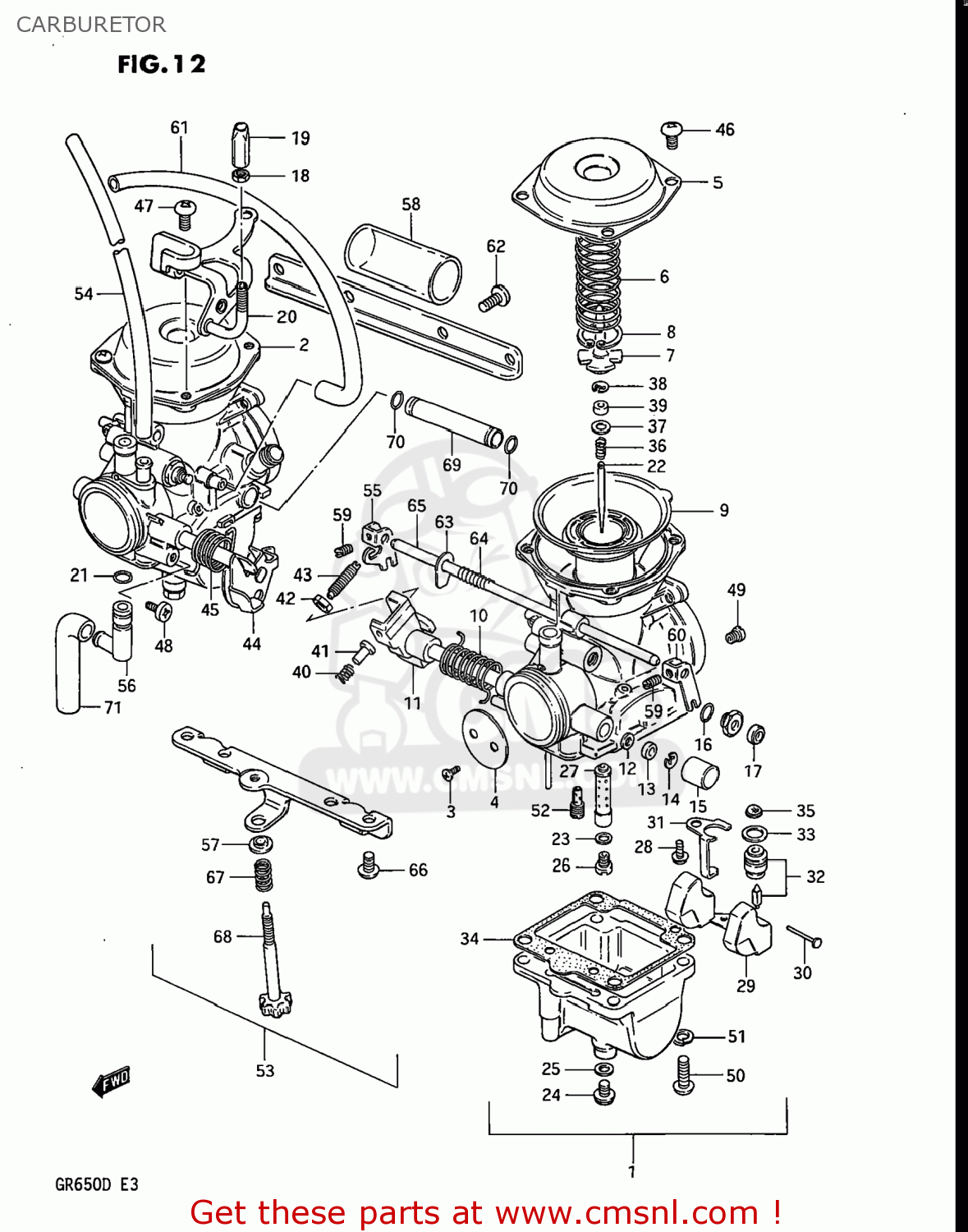

CARBURETOR

ref

part #

description

quantity

1

1320115510
ref: 1

CARBURETOR ASSEMBLY

€ 252.00

2

1320215510
ref: 2

CARBURETOR ASSEMBLY

€ 252.00

3

1360444080
ref: 3

SCREW

€ 3.50

4

1355115510
ref: 4

VALVE,THROTTLE (90)

€ 0.00

5

1350215510
ref: 5

COVER,DIAPHRAGM

€ 0.00

6

1350315510
ref: 6

SPRING,DIAPHRAGM

€ 7.50

7

1338944030
ref: 7

HOLDER,GUIDE

€ 10.50

8

1358144030
ref: 8

E RING

€ 6.50

9

1350015510
ref: 9

DIAPHRAGM,CARBURETOR

€ 140.00

10

1357315510
ref: 10

SPRING

€ 0.00

11

1355015510
ref: 11

SHAFT ASSEMBLY

€ 0.00

12

1365151010
ref: 12

SEAL

€ 4.00

13

1355747070
ref: 13

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

14

1361744080
ref: 14

E RING

€ 3.50

15

1357847070
ref: 15

CAP

€ 5.50

16

1327847090
ref: 16

O RING

€ 2.00

17

1368231210
ref: 17

CAP,STARTER VALVE

€ 5.00

18

1366103010
ref: 18

NUT

€ 3.50

19

1357798011
ref: 19

ADJUSTER

€ 0.00

20

1362115510
ref: 20

BRACKET

€ 0.00

21

1327815510
ref: 21
09280-05004

O-RING

€ 2.00

22

1338315510
ref: 22

NEEDLE JET

€ 9.00

23

1333244080
ref: 23
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

24

1324744080
ref: 24

PLUG,DRAIN

€ 9.50

25

1324644080
ref: 25

GASKET (NAS)

€ 3.50

26

0949126012
ref: 26

JET,MAIN(132.5)

€ 11.50

27

0949400410
ref: 27

JET,NEEDLE

€ 9.00

28

0211204068
ref: 28
02112-0406B

SCREW 4X6

€ 2.00

29

1325044080
ref: 29

FLOAT

€ 31.00

30

1325492311
ref: 30

PIN,FLOAT

€ 2.00

31

1337311400
ref: 31

PLATE,NEEDLE VALVE FITING

€ 7.00

32

1337011400
ref: 32
13370-44500

VALVE ASSEMBLY,NEEDLE

€ 40.50

33

1337444080
ref: 33
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

34

1325144080
ref: 34
13251-44080-H17

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

35

1337665010
ref: 35
13376-19F00

FILTER

€ 6.50

36

1338832400
ref: 36

SPRING

€ 0.00

37

1338244030
ref: 37

WASHER

€ 3.50

38

1339431210
ref: 38

CLIP,NEEDLE

€ 3.50

39

1338744030
ref: 39

RING

€ 5.00

40

1326844110
ref: 40

SPRING,THROTTLE SCREW

€ 0.00

41

1356344110
ref: 41

PIN,THROTTLE LEVER

€ 0.00

42

1360747070
ref: 42

NUT

€ 4.00

43

1360547080
ref: 43

SCREW

€ 7.00

44

1355015500
ref: 44

SHAFT ASSEMBLY

€ 0.00

45

1357315500
ref: 45

SPRING

€ 0.00

46

0211205088
ref: 46
02112-05087

SCREW

€ 2.00

47

0211205108
ref: 47
02112-05107

SCREW

€ 2.00

48

1360545410
ref: 48
13605-73000

SCREW

€ 8.00

49

0949326005
ref: 49

JET

€ 11.50

50

0211205168
ref: 50
02112-05167

SCREW

€ 2.50

51

0832121058
ref: 51
08321-0105A

LOCK WASHER

€ 2.00

52

0949242010
ref: 52

JET,PILOT(42.5)

€ 8.50

53

1321015510
ref: 53

CARBURETOR ASSEMBLY

€ 0.00

54

1368702340
ref: 54
09355-45855-600

HOSE

€ 14.00

55

1342244500
ref: 55

LEVER,STARTER

€ 16.00

56

1368515510
ref: 56

PIPE

€ 0.00

57

1345215510
ref: 57

RING,ADJUSTER

€ 0.00

58

1368415510
ref: 58
13684-43440

HOSE

€ 6.50

59

1360509300
ref: 59

SCREW,THROTTLE ADJUST

€ 3.50

60

1342244080
ref: 60

LEVER

€ 10.00

61

1368311400
ref: 61
44420-44AR0

HOSE

€ 13.00

62

0211205128
ref: 62
02112-05127

SCREW

€ 2.50

63

1342744460
ref: 63

WASHER,STARTER PLUNGER

€ 0.00

64

1343744500
ref: 64

SPRING,STARTER

€ 0.00

65

1341044500
ref: 65

SHAFT,STARTER

€ 0.00

66

0211206128
ref: 66
02112-06127

SCREW 6X12

€ 2.00

67

1326851010
ref: 67
13444-61A00

THROTTLE SCREW

€ 1.50

68

1326701400
ref: 68

SCREW,THROTTLE STOP

€ 10.00

69

1368515500
ref: 69

PIPE,CARBURETOR

€ 0.00

70

1344294350
ref: 70
13521-78100

O RING

€ 1.50

71

1368315510
ref: 71

HOSE,CARBURETOR

€ 21.00
