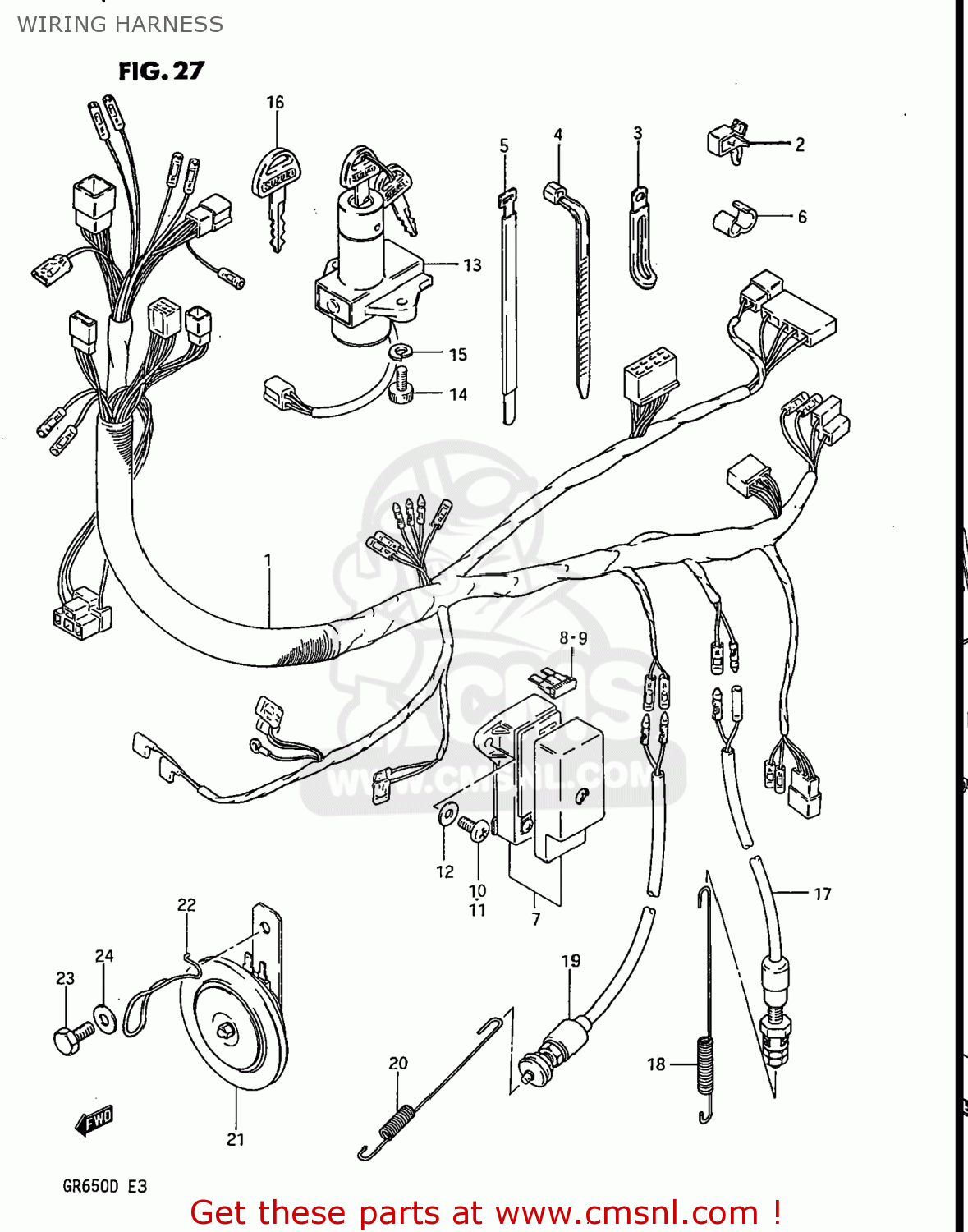

WIRING HARNESS

ref

part #

description

quantity

1

3661015500
ref: 1

HARNESS,WIRING

€ 172.50

2

0940305305
ref: 2

CLIP

€ 3.00

3-1

0940406412
ref: 3-1
09404-06432

CLAMP

€ 2.50

3-2

0940406415
ref: 3-2
09404-06433

CLAMP

€ 3.00

4-1

0940714403
ref: 4-1

CLAMP(L:125)

€ 2.50

4-2

0940718402
ref: 4-2

CLAMP(L:165)

€ 2.50

4-3

0940725401
ref: 4-3

CLAMP(L:235)

€ 4.00

5

0940735301
ref: 5
09407-38401

CLAMP

€ 6.50

6

0940800002
ref: 6

CLIP

€ 2.00

7

3674049400
ref: 7
36740-45D00

BOX ASSEMBLY,FUSE

€ 69.50

8

0948110101
ref: 8

FUSE(10A)

€ 2.50

9

0948115101
ref: 9

FUSE(15A)

€ 1.50

10

0211206128
ref: 10
02112-06127

SCREW 6X12

€ 2.00

11

0211206168
ref: 11
02112-06167

SCREW

€ 2.50

12

0832221068
ref: 12
08322-01067

WASHER

€ 2.00

13

3710049201
ref: 13

SWITCH ASSY,IGNITION

€ 141.00

14

3715247010
ref: 14
07130-0616B

BOLT

€ 3.00

15

0832121068
ref: 15
08321-01067

LOCK WASHER

€ 2.50

16

3714647010
ref: 16

KEY,BLANK

€ 15.00

17

3774004572
ref: 17
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

18

0944306027
ref: 18

SPRING

€ 4.50

19

3784015500
ref: 19
37840-15501

SWITCH ASSEMBLY,SIDE STAND

€ 25.00

20

0944306048
ref: 20

SPRING

€ 5.00

21

3850015500
ref: 21
38502-49001

HORN ASSEMBLY

€ 77.00

22

3859515500
ref: 22

PROTECTOR, HORN

€ 0.00

23

0110708168
ref: 23
01500-0816B

BOLT

€ 2.00

24

0832211088
ref: 24
08322-01087

WASHER

€ 2.00
