REAR WHEEL (GR650D)
GR650 TEMPTER 1983 (D) USA (E03)

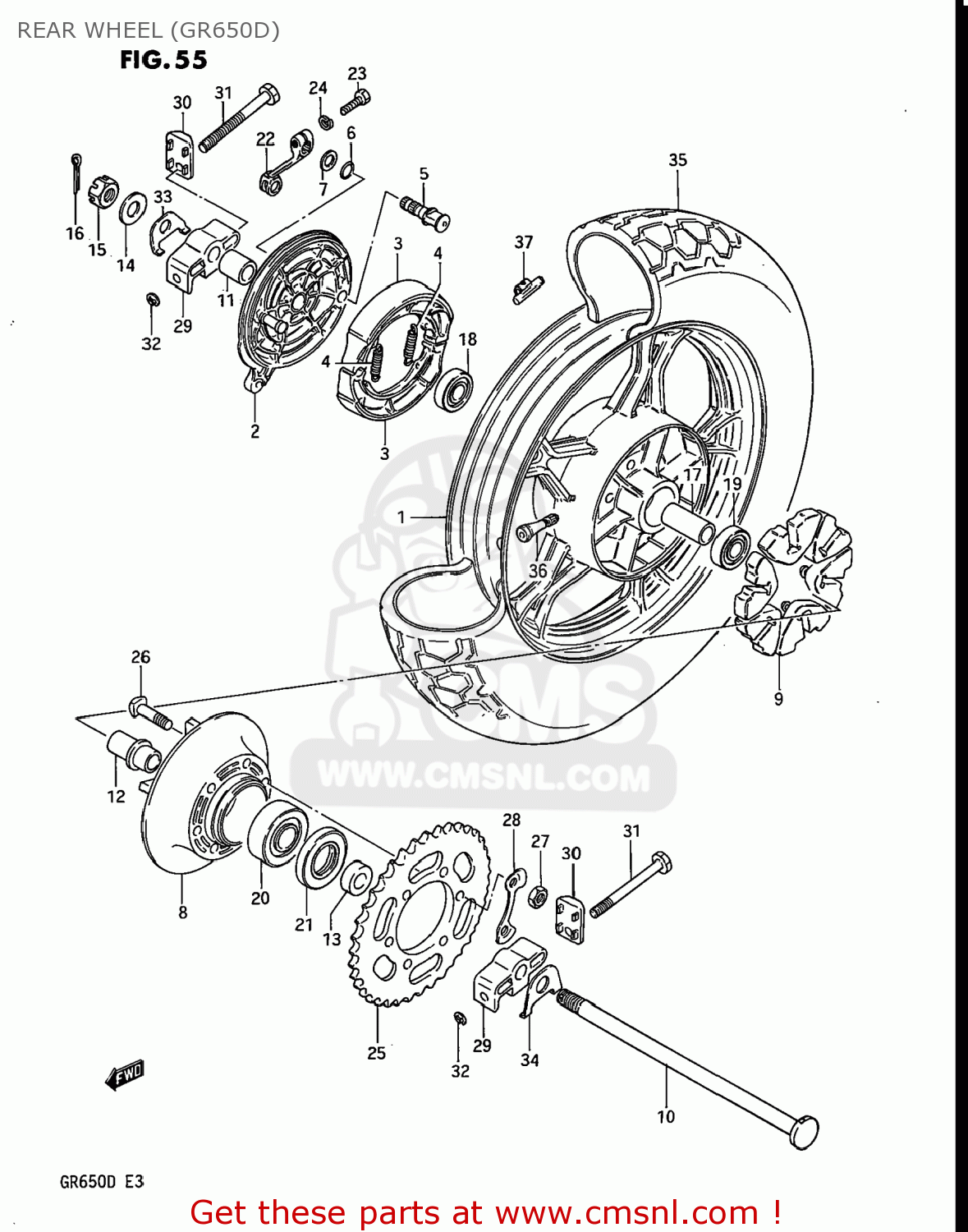

Rear wheel (gr650d) diagram GR650 TEMPTER 1983 (D) USA (E03)
REAR WHEEL (GR650D) GR650 TEMPTER 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6415015500291
ref: 1
WHEEL,REAR
€ 528.00
2
6421015500
ref: 2
PANEL,REAR HUB
€ 126.00
3
6441011301
ref: 3
64400-11860
SHOE,BRAKE
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
€ 3.50
5
5444008003
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
6461131001
ref: 8
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
9
6465131000
ref: 9
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
10
6471115501
ref: 10
64711-15502
AXLE,REAR
€ 51.50
11
0918017070
ref: 11
SPACER (17.5X28X35)
€ 13.00
12
6473331300
ref: 12
RETAINER,RR SPROCKET DRUM
€ 16.50
13
0918017068
ref: 13
SPACER (17X33X12.5)
€ 0.00
14
0916017013
ref: 14
09160-17050
WASHER (17X30X3.2)
€ 2.00
15
0914116001
ref: 15
NUT
€ 6.50
16
0411140308
ref: 16
04111-4030A
PIN,COTTER
€ 1.50
17
0918017069
ref: 17
SPACER(17.5X25X70)
€ 15.00
18
0813363037
ref: 18
BEARING
€ 28.50
19
0815363037
ref: 19
BEARING
€ 19.50
20
0811363050
ref: 20
09262-25073
BEARING
€ 21.50
21
0928533001
ref: 21
SEAL,OIL(33X62X7)
€ 20.00
22
6445115500
ref: 22
LEVER,REAR BRAKE CAM
€ 23.00
23
0110706258
ref: 23
01500-06257
BOLT
€ 2.00
24
0832121068
ref: 24
08321-01067
LOCK WASHER
€ 2.50
25
6451131760
ref: 25
64511-15510
SPROCKET,REAR
€ 56.50
26
0911910002
ref: 26
09105-10001
BOLT
€ 3.50
27
0914010026
ref: 27
09140-10026-XC0
NUT
€ 2.00
28
0916910007
ref: 28
WASHER
€ 7.50
28
0916910007
ref: 28
WASHER
€ 7.50
29
6141115500
ref: 29
BODY,CHAIN ADJUSTER
€ 23.50
30
6142115500
ref: 30
61421-15501
PLATE,CHAIN ADJUSTER
€ 107.00
31
6143116700
ref: 31
BOLT,CHAIN ADJUSTER
€ 4.50
32
0833211046
ref: 32
08332-1104A
E RING
€ 2.00
33
6471315500
ref: 33
64713-43400
WASHER,CHAIN ADJUSTER
€ 3.50
34
6471215501
ref: 34
64712-43401
WASHER,CHAIN ADJUSTER
€ 3.00
35-1
6510015515
ref: 35-1
TIRE
€ 128.50
35-2
6510015535
ref: 35-2
65100-15515
TIRE
€ 128.50
36
4313075150
ref: 36
43130-78030
VALVE,TIRE
€ 14.50
37-1
5541145100
ref: 37-1
55412-17G00
BALANCER,WHEEL
€ 7.00
37-2
5541245100
ref: 37-2
BALANCER,WHEEL
€ 4.00
37-3
5541345100
ref: 37-3
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
37-3
5541345100
ref: 37-3
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
