CRANKSHAFT
GR650 TEMPTER 1983 (D) USA (E03)

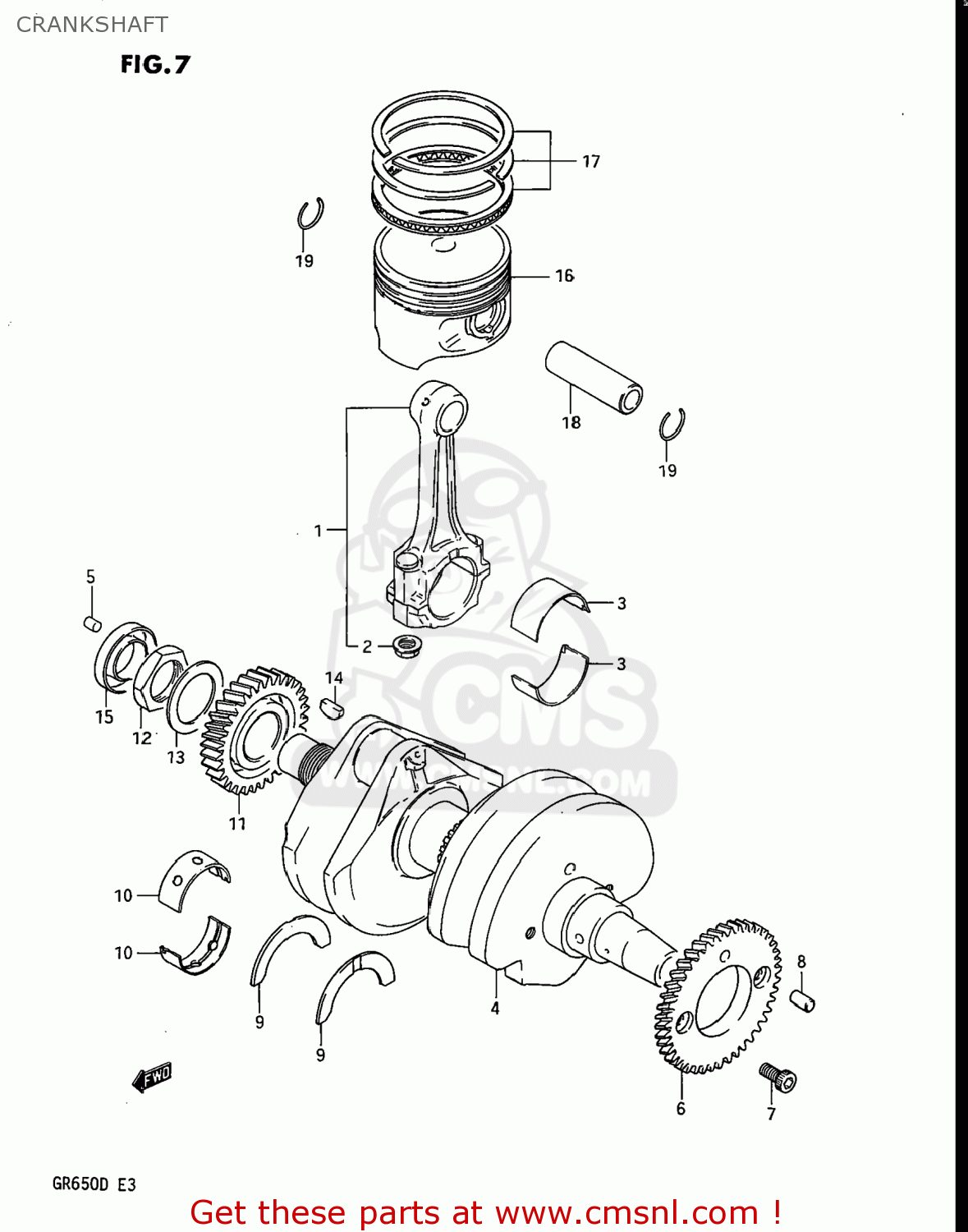

Crankshaft diagram GR650 TEMPTER 1983 (D) USA (E03)
CRANKSHAFT GR650 TEMPTER 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216015502
ref: 1
12160-15503
CONNECTING ROD ASSEMBLY
€ 105.00
2
0915909001
ref: 2
NUT
€ 4.50
3-1
1216415510010
ref: 3-1
BEARING,CRANK PIN(GREEN)
€ 10.00
3-2
1216415510020
ref: 3-2
METAL CRANK PIN (BROWN)
€ 8.00
3-3
1216415510030
ref: 3-3
METAL CRANK PIN (BLACK)
€ 8.00
3-4
1216415510040
ref: 3-4
METAL CRANK PIN (GREEN)
€ 10.00
4
1222015502
ref: 4
12220-15503
CRANKSHAFT
€ 831.00
5
0920203016
ref: 5
PIN
€ 1.50
6
1266115502
ref: 6
12661-15503
GEAR,CRANK BALANCER DRIVE
€ 96.00
7
0910606030
ref: 7
07130-0616B
BOLT
€ 2.50
8
0422106129
ref: 8
PIN
€ 1.50
9-1
1222831301
ref: 9-1
PLATE,CRANK THRUST
€ 6.00
9-2
1222831302
ref: 9-2
PLATE,CRANK THRUST
€ 8.00
9-3
1222831303
ref: 9-3
PLATE,CRANK THRUST
€ 8.50
9-4
1222831304
ref: 9-4
PLATE,CRANK THRUST
€ 9.00
9-5
1222831305
ref: 9-5
PLATE,CRANK THRUST
€ 7.00
9-6
1222831306
ref: 9-6
PLATE,CRANK THRUST
€ 8.00
9-7
1222831307
ref: 9-7
PLATE,CRANK THRUST
€ 7.00
9-8
1222831308
ref: 9-8
PLATE,CRANK THRUST
€ 7.50
10-1
1222915510010
ref: 10-1
METAL,CRANKSHAFT (GREEN)
€ 10.50
10-2
1222915510020
ref: 10-2
BEARING,CRANKSHAFT(BLACK)
€ 10.00
10-3
1222915510030
ref: 10-3
METAL CRANKSHAFT (BROWN)
€ 9.00
10-4
1222915510040
ref: 10-4
METAL,CRANKSHAFT (YELLOW)
€ 10.50
11
2111115501
ref: 11
GEAR,PRIMARY DRIVE
€ 0.00
12
0914024007
ref: 12
NUT
€ 4.50
13
0916425001
ref: 13
WASHER
€ 4.50
14
0834131059
ref: 14
KEY
€ 3.00
15
0928322015
ref: 15
SEAL,OIL(22X40X8)
€ 10.50
16-1
1211115504
ref: 16-1
PISTON (77.00MM)
€ 118.00
16-2
1211115504050
ref: 16-2
12103-15830-050
PISTON (77.50MM)
€ 118.00
16-3
1211115504100
ref: 16-3
PISTON (78.00MM)
€ 84.00
17-1
1214015510
ref: 17-1
12140-15511
RING SET,PISTON
€ 73.50
17-2
1214015510050
ref: 17-2
12140-15511-050
RING SET,PISTON (OS:0.5)
€ 38.50
17-3
1214015520100
ref: 17-3
RING SET,PISTON (OS:1.0)
€ 62.00
18
1215115500
ref: 18
12151-15501
PIN,PISTON
€ 15.00
19
0938118002
ref: 19
CIRCLIP
€ 1.50
