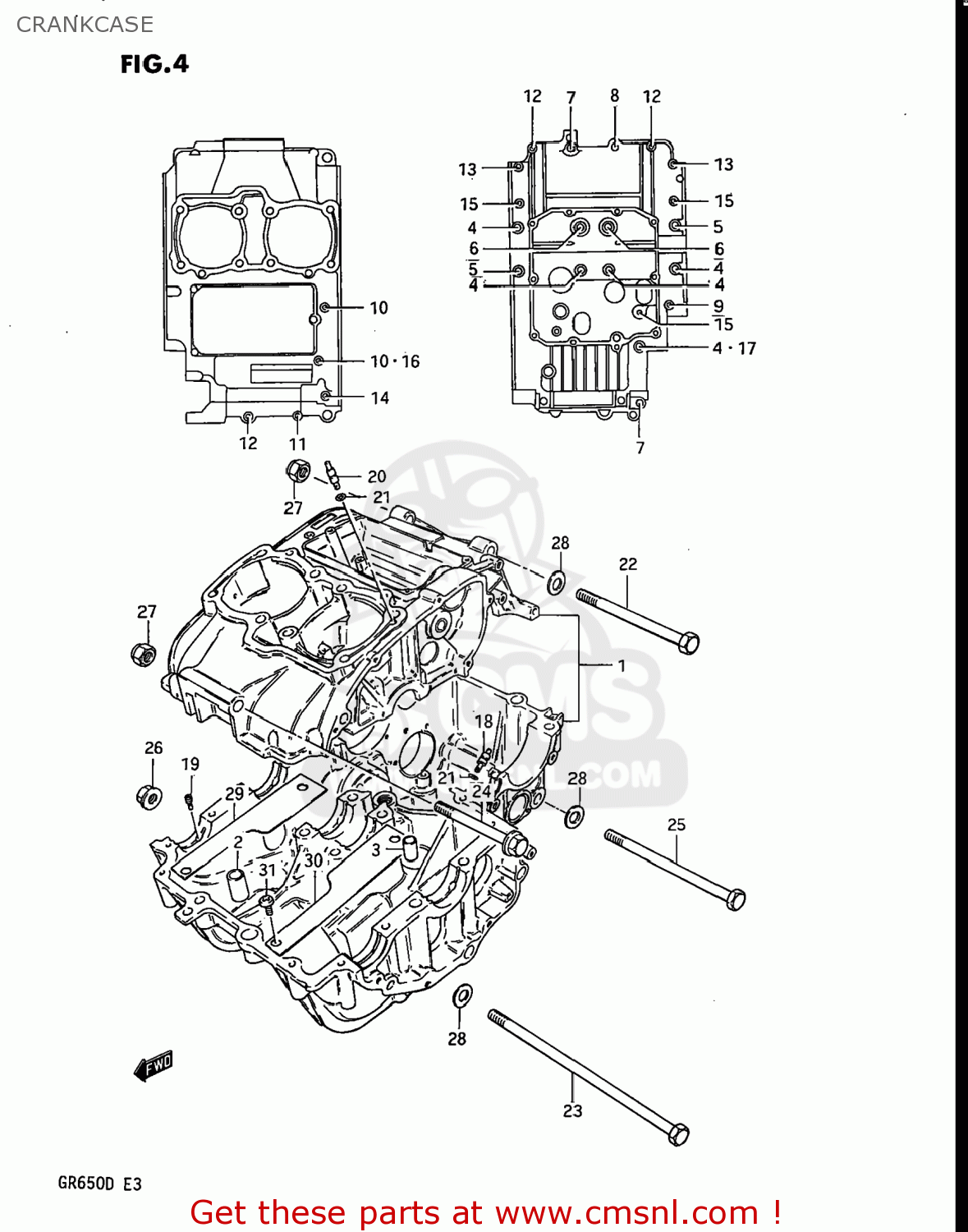

CRANKCASE

ref

part #

description

quantity

1

1130015870
ref: 1
11300-15872

CRANKCASE SET

€ 533.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3
09206-11017

PIN (11X20)(SUS)

€ 6.50

4

0910308091
ref: 4
09103-08109

BOLT

€ 3.50

5

0910308094
ref: 5
09103-08182

BOLT

€ 4.50

6

0910608015
ref: 6
07130-0860B

BOLT

€ 4.50

7

0151708505
ref: 7
01550-0850B

BOLT (8X50)

€ 2.50

8

0151708605
ref: 8
01550-0860A

BOLT 8X60

€ 3.50

9

0910306060
ref: 9

BOLT(6X100)

€ 2.50

10

0910306061
ref: 10

BOLT

€ 0.00

11

0151706405
ref: 11
01550-0640A

BOLT (6X40)

€ 2.00

12

0151706505
ref: 12
01550-0650A

BOLT 6X50

€ 2.00

13

0151706605
ref: 13
01550-0660A

BOLT ,6X60

€ 2.50

14

0151706705
ref: 14
01550-0670B

BOLT

€ 2.50

15

0151706905
ref: 15
01550-0690B

BOLT (6X90)

€ 3.50

16

0916806018
ref: 16

GASKET(6.2X13X1.2) (NAS)

€ 2.00

17

0916808008
ref: 17
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

18

0949320014
ref: 18

JET,OIL GALLERY

€ 8.00

19

0949328011
ref: 19

JET,AIR

€ 12.50

20

0949328010
ref: 20

JET,AIR(14)

€ 10.50

21

0928004004
ref: 21

O RING(D:1.2,ID:4)

€ 2.00

22

0910010137
ref: 22
09100-10078

BOLT

€ 10.50

23

0910010138
ref: 23
09103-10138

BOLT

€ 11.50

24

0910310073
ref: 24

BOLT

€ 0.00

25

0910010193
ref: 25

BOLT 10X150

€ 0.00

26

0831931105
ref: 26
08319-3110A

NUT 10MM

€ 3.00

27

0915910039
ref: 27
09159-10064

NUT

€ 8.50

28

0832211105
ref: 28
08322-0110A

WASHER

€ 2.50

29

1152115500
ref: 29

PLATE,OIL SEPARATOR

€ 0.00

30

1152215500
ref: 30

PLATE,OIL SEPARATOR,LEFT

€ 2.00

31

0211206108
ref: 31
02112-06107

SCREW

€ 1.50
