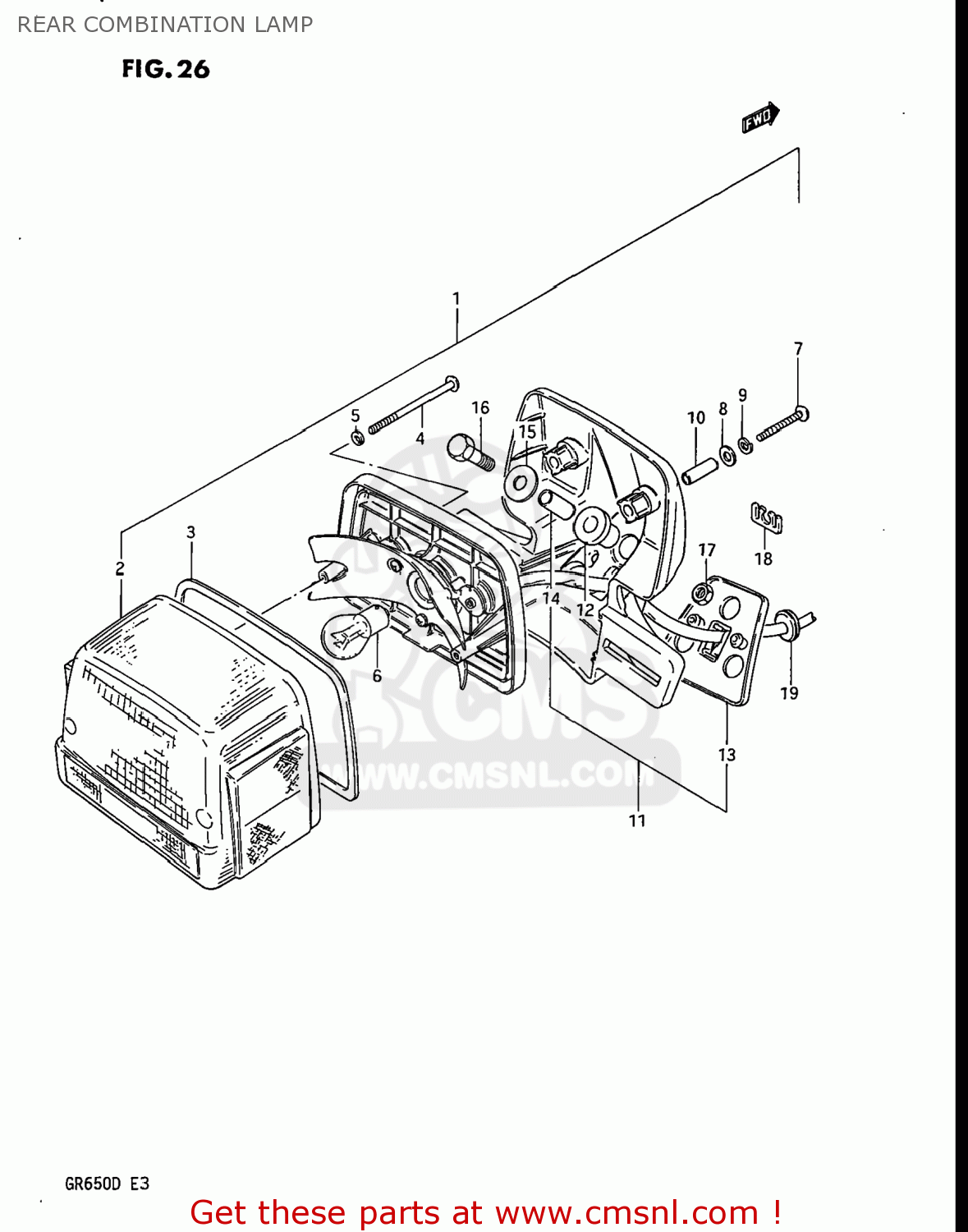

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3572015530
ref: 1
35720-38330-999

LAMP UNIT,REAR COMBINATION

€ 88.00

2

3571249130
ref: 2

LENS

€ 49.00

3

3571349130
ref: 3

GASKET (NAS)

€ 5.50

4

3572344130
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112035
ref: 6

BULB(12V23W)

€ 5.50

7

0211205358
ref: 7
02112-05357

SCREW

€ 1.50

8

0832221058
ref: 8
08322-01057

WASHER

€ 2.50

9

0832121058
ref: 9
08321-0105A

LOCK WASHER

€ 2.00

10

3576615530
ref: 10

SPACER,REAR COMBINATION LAMP

€ 1.50

11

3573015530
ref: 11

BRACKET UNIT,TAIL LAMP

€ 67.50

12

3576415530
ref: 12

CUSHION,REAR COMBINATION LAMP

€ 2.50

13

3576515530
ref: 13

CUSHION,REAR COMBINATION LAMP

€ 7.00

14

3576638210
ref: 14

SPACER

€ 3.00

15

0916006027
ref: 15
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

16

0110706258
ref: 16
01500-06257

BOLT

€ 2.00

17

0831626068
ref: 17
08316-2006A

NUT 6MM

€ 2.00

18

3661915500
ref: 18

GUIDE,WIRING HARNESS

€ 0.00

19

0930809001
ref: 19

GROMMET

€ 0.00
