TURN SIGNAL LAMP
GR650 TEMPTER 1983 (D) USA (E03)

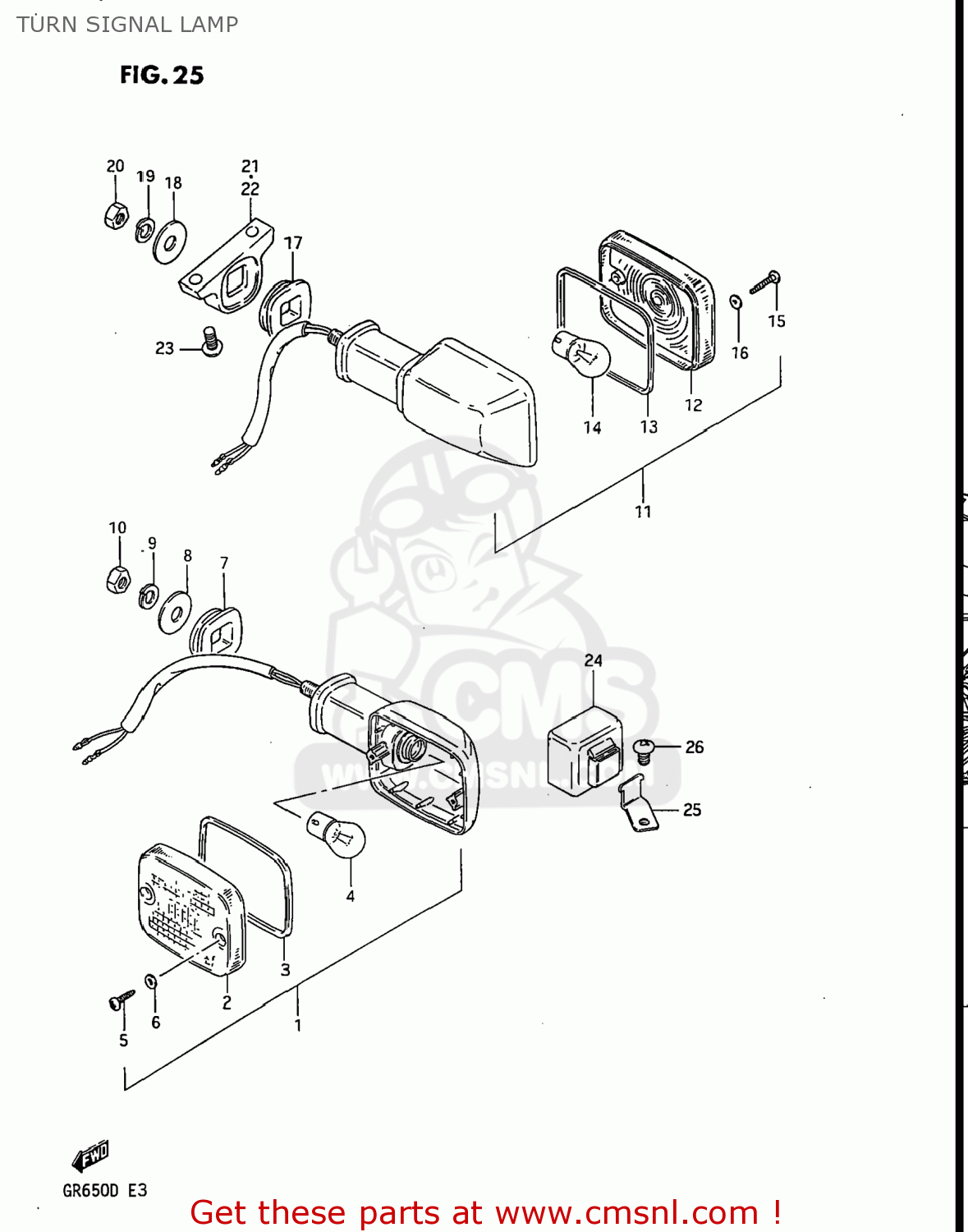

Turn signal lamp diagram GR650 TEMPTER 1983 (D) USA (E03)
TURN SIGNAL LAMP GR650 TEMPTER 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560145130
ref: 1
35603-45131
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 100.50
2
3561249231
ref: 2
LENS
€ 13.00
3
3561349230
ref: 3
GASKET (NAS)
€ 5.00
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
€ 4.00
5
0321104208
ref: 5
03211-04207
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0932015005
ref: 7
CUSHION
€ 5.00
8
0916010006
ref: 8
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
9
0832121108
ref: 9
08321-01107
LOCK WASHER
€ 2.00
10
0831012108
ref: 10
08310-00107
NUT
€ 2.50
11
3560345130
ref: 11
35603-45131
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 100.50
12
3561249231
ref: 12
LENS
€ 13.00
13
3561349230
ref: 13
GASKET (NAS)
€ 5.00
14
0947112006
ref: 14
BULB(12V23W,STANLEY,A4577A)
€ 4.00
15
0321104208
ref: 15
03211-04207
SCREW
€ 1.50
16
3562743010
ref: 16
GASKET (NAS)
€ 2.00
17
0932015005
ref: 17
CUSHION
€ 5.00
18
0916010006
ref: 18
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
19
0832121108
ref: 19
08321-01107
LOCK WASHER
€ 2.00
20
0831012108
ref: 20
08310-00107
NUT
€ 2.50
21
3562115500
ref: 21
BRACKET,REAR TURN SIGNAL
€ 49.00
22
3564115500
ref: 22
BRACKET,REAR TURN SIGNAL
€ 31.50
23
0211206168
ref: 23
02112-06167
SCREW
€ 2.50
24
3861045031
ref: 24
38610-31X50
RELAY,TURN SIGNAL
€ 54.50
25
3862115500
ref: 25
BRACKET,TURN SIGNAL RELAY
€ 0.00
26
0214206105
ref: 26
02142-0610A
SCREW
€ 2.00
