GENERATOR

GR650 TEMPTER 1983 (D) USA (E03)

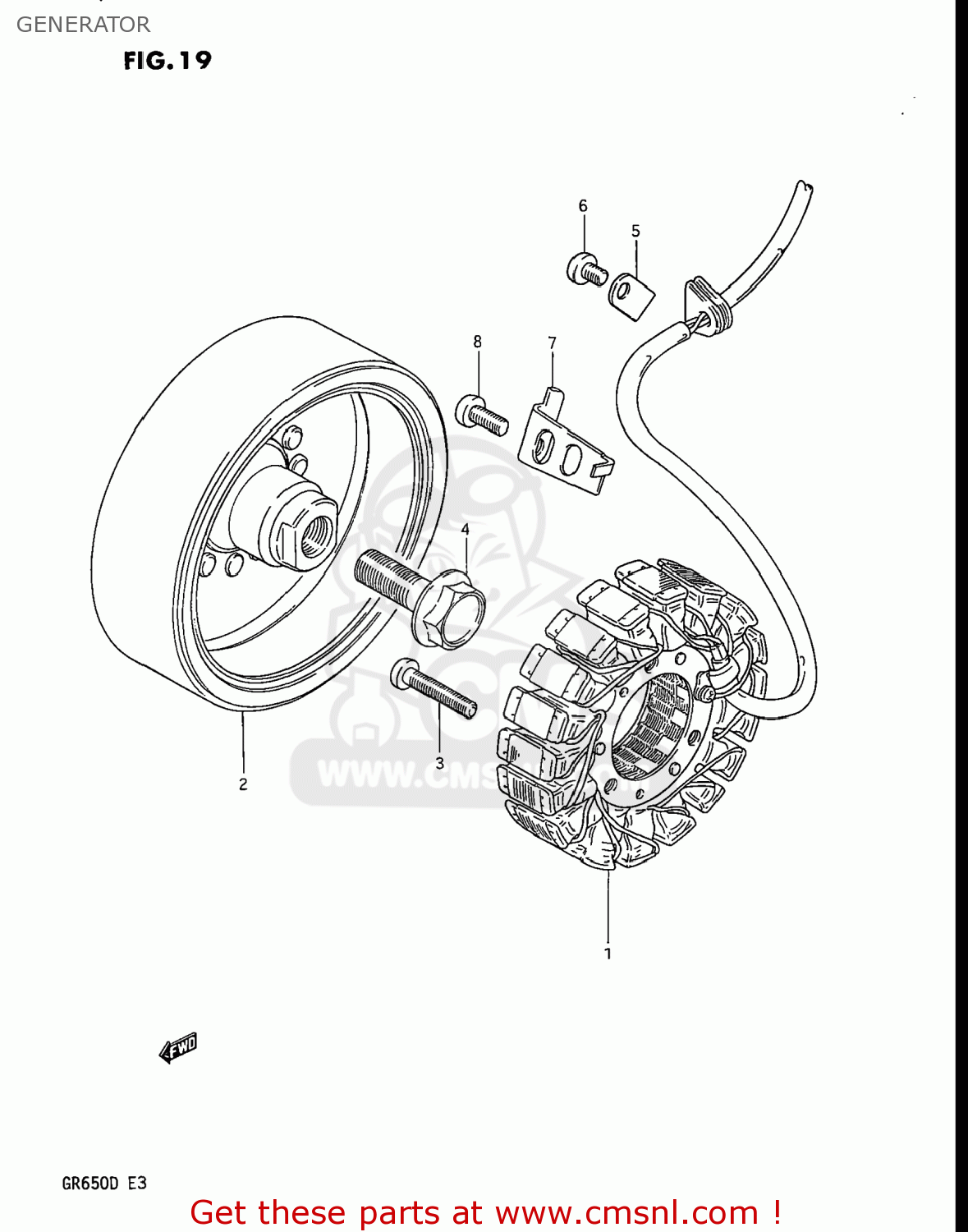

Generator diagram GR650 TEMPTER 1983 (D) USA (E03)

GENERATOR GR650 TEMPTER 1983 (D) USA (E03)

GENERATOR GR650 TEMPTER 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140115500
ref: 1

STARTER ASSY

€ 372.50

2

3140215500
ref: 2

ROTOR ASSEMBLY

€ 0.00

3

0211205308
ref: 3
02112-0530A

SCREW

€ 1.50

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

3149715500
ref: 5
31497-15510

CLAMP,GENERATOR LEAD WIRE

€ 12.50

6

0211205108
ref: 6
02112-05107

SCREW

€ 2.00

7

3149815500
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 0.00

8

0211206108
ref: 8
02112-06107

SCREW

€ 1.50
