FRAME
GR650 TEMPTER 1983 (D) USA (E03)

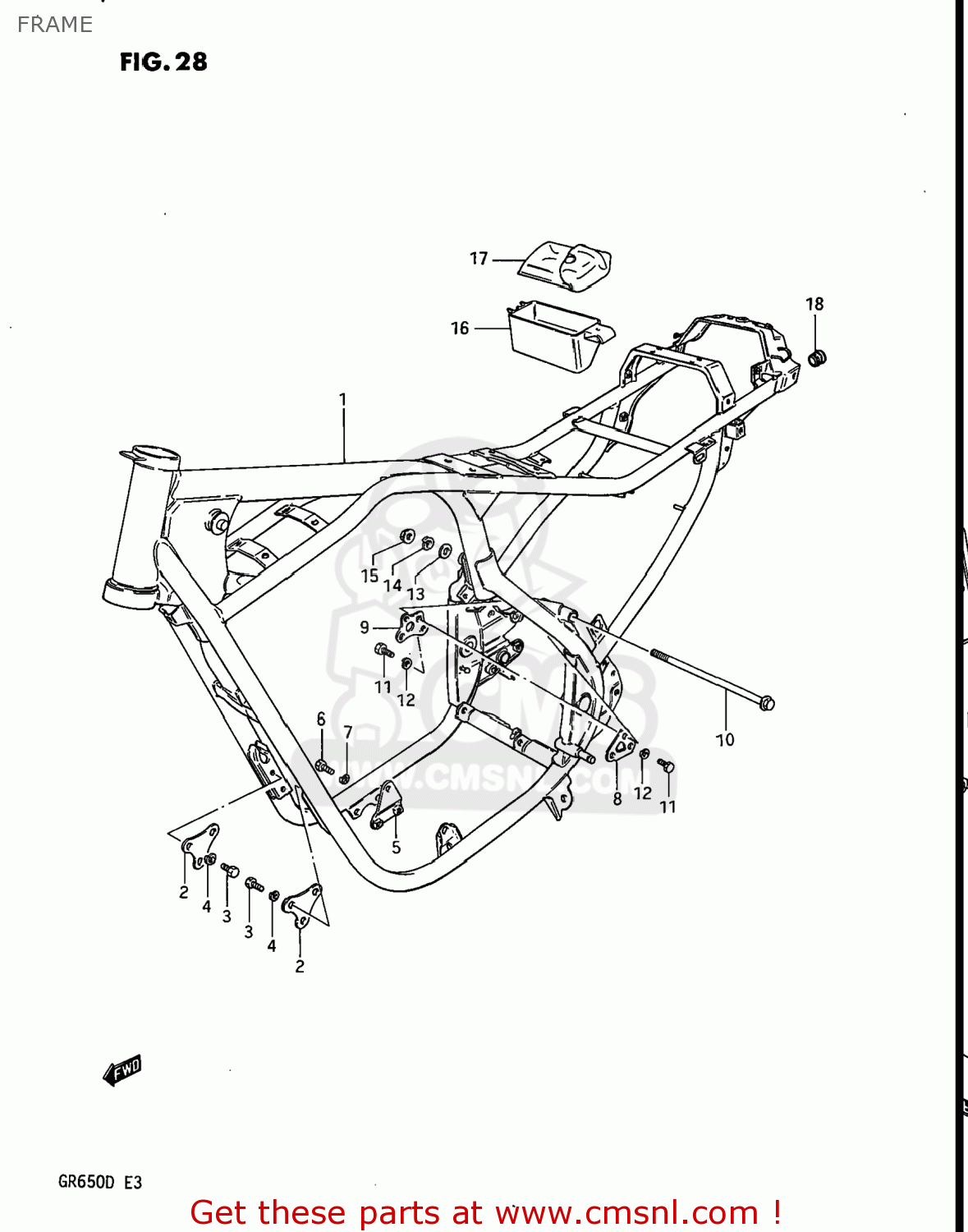

Frame diagram GR650 TEMPTER 1983 (D) USA (E03)
FRAME GR650 TEMPTER 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110015500019
ref: 1
FRAME
€ 1,016.50
2
4191115500019
ref: 2
PLATE,ENGINE MOUNTING NO
€ 4.50
3
0110708168
ref: 3
01500-0816B
BOLT
€ 2.00
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
4193015500019
ref: 5
PLATE,ENGINE MOUNTING NO
€ 0.00
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
4197115500019
ref: 8
PLATE,ENGINE MOUNTING NO
€ 0.00
9
4198115500019
ref: 9
PLATE,ENGINE MOUNTING NO
€ 0.00
10
0910308095
ref: 10
BOLT
€ 0.00
11
0110708168
ref: 11
01500-0816B
BOLT
€ 2.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0832211085
ref: 13
08322-0108A
WASHER,8.5X16X
€ 1.50
14
0832131088
ref: 14
08321-01087
WASHER,LOCK,8.
€ 2.00
15
0831921085
ref: 15
08319-2108A
NUT
€ 1.50
16
4743115500
ref: 16
HOLDER,TOOL
€ 0.00
17
0980006800
ref: 17
09800-06801
TOOL SET
€ 52.00
18
0925022002
ref: 18
CAP(OD:26)
€ 2.00
