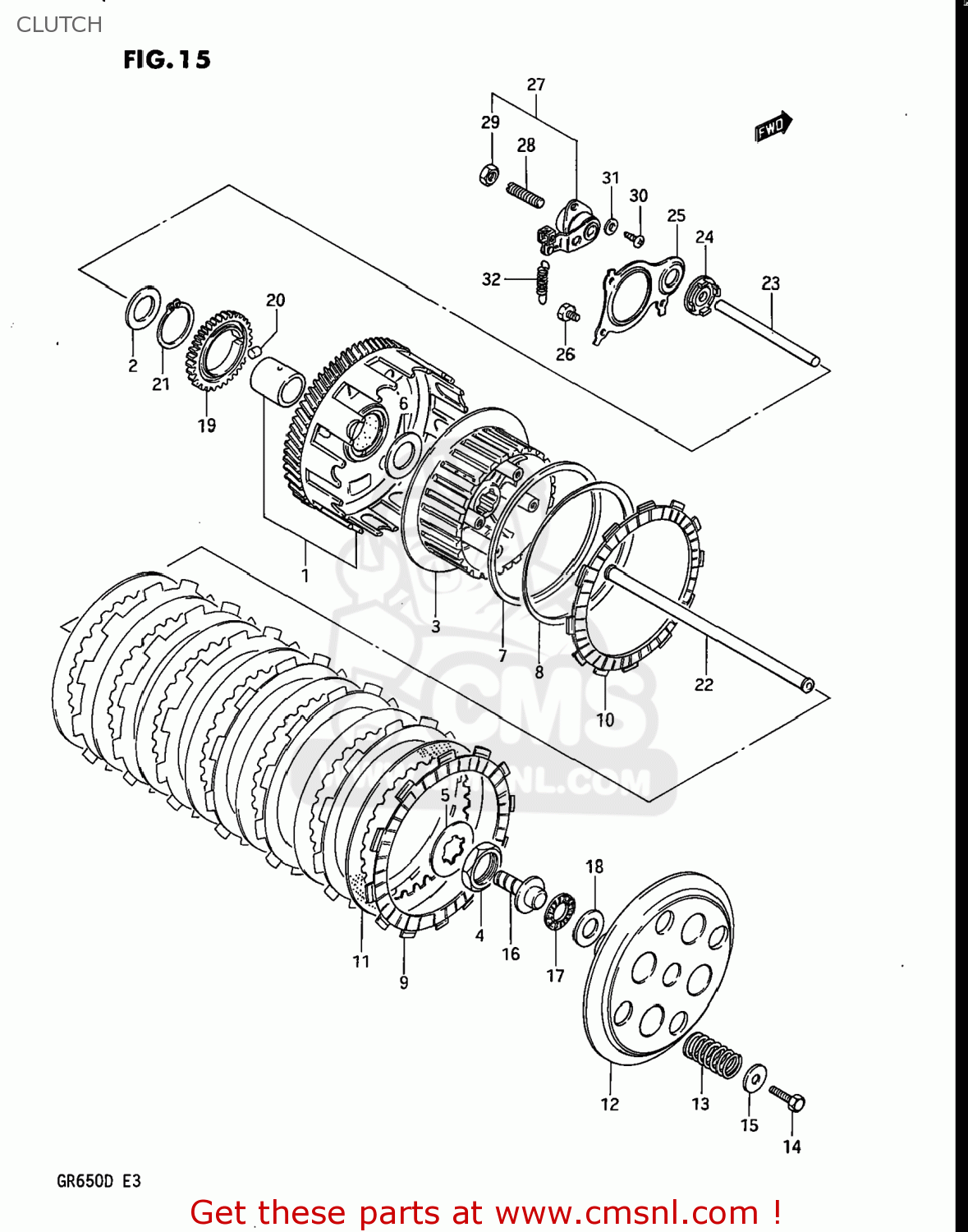

CLUTCH

ref

part #

description

quantity

1

2120015830
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 0.00

2

0916025045
ref: 2

WASHER

€ 1.50

3

2141015501
ref: 3

HUB,CLUTCH SLEEVE

€ 83.00

4

0914022006
ref: 4

NUT

€ 6.00

5

0916722005
ref: 5

WASHER,LOCK

€ 2.50

6

0916022028
ref: 6

WASHER (22X40X1.5)

€ 4.00

7

2147137400
ref: 7

SEAT,WAVE WASHER(T:1.4)

€ 8.00

8

0916400004
ref: 8

WASHER

€ 9.00

9

2144137400
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

10

2144237400
ref: 10
21442-37401

PLATE,CLUTCH DRIVE

€ 11.50

11

2145115500
ref: 11
21451-14A00

PLATE,CLUTCH DRIVEN

€ 6.50

12

2146238200
ref: 12
21462-27A00

DISC,CLUTCH PRESSURE

€ 37.00

13

0944020010
ref: 13
09440-20013

SPRING

€ 5.00

14

0110706168
ref: 14
01500-06167

BOLT, UPPER

€ 3.00

15

0916006020
ref: 15
09160-06066

WASHER

€ 2.00

16

2312144100
ref: 16

PIECE,CLUTCH PUSH

€ 21.50

17

0926315003
ref: 17

BEARING(15X28X2)

€ 7.00

18

0916015015
ref: 18
09160-15045

WASHER

€ 4.00

19

1632115500
ref: 19

GEAR,OIL PUMP DRIVE

€ 0.00

20

0926106002
ref: 20

PIN(6X6)

€ 1.50

21

0833131459
ref: 21

CIRCLIP

€ 2.00

22

2311031300
ref: 22
23110-32C50

ROD,CLUTCH PUSH

€ 25.00

23

2311115501
ref: 23

ROD,CLUTCH PUSH,L

€ 11.50

24

0928506011
ref: 24

SEAL,OIL(6X34X10)

€ 9.50

25

2311715501
ref: 25

PLATE,CLUTCH PUSH ROD

€ 4.50

26

0110706128
ref: 26
01500-06127

BOLT

€ 2.00

27

2320033400
ref: 27

SCREW ASSEMBLY,RELEASE

€ 46.50

28

0913406001
ref: 28
09134-06010

SCREW

€ 3.00

29

0831022068
ref: 29
08310-00067

NUT 6MM

€ 2.50

30

0311106168
ref: 30
03111-06163

SCREW

€ 1.50

31

0832221068
ref: 31
08322-01067

WASHER

€ 2.00

32

0944308001
ref: 32

SPRING

€ 3.00

all assemblies
