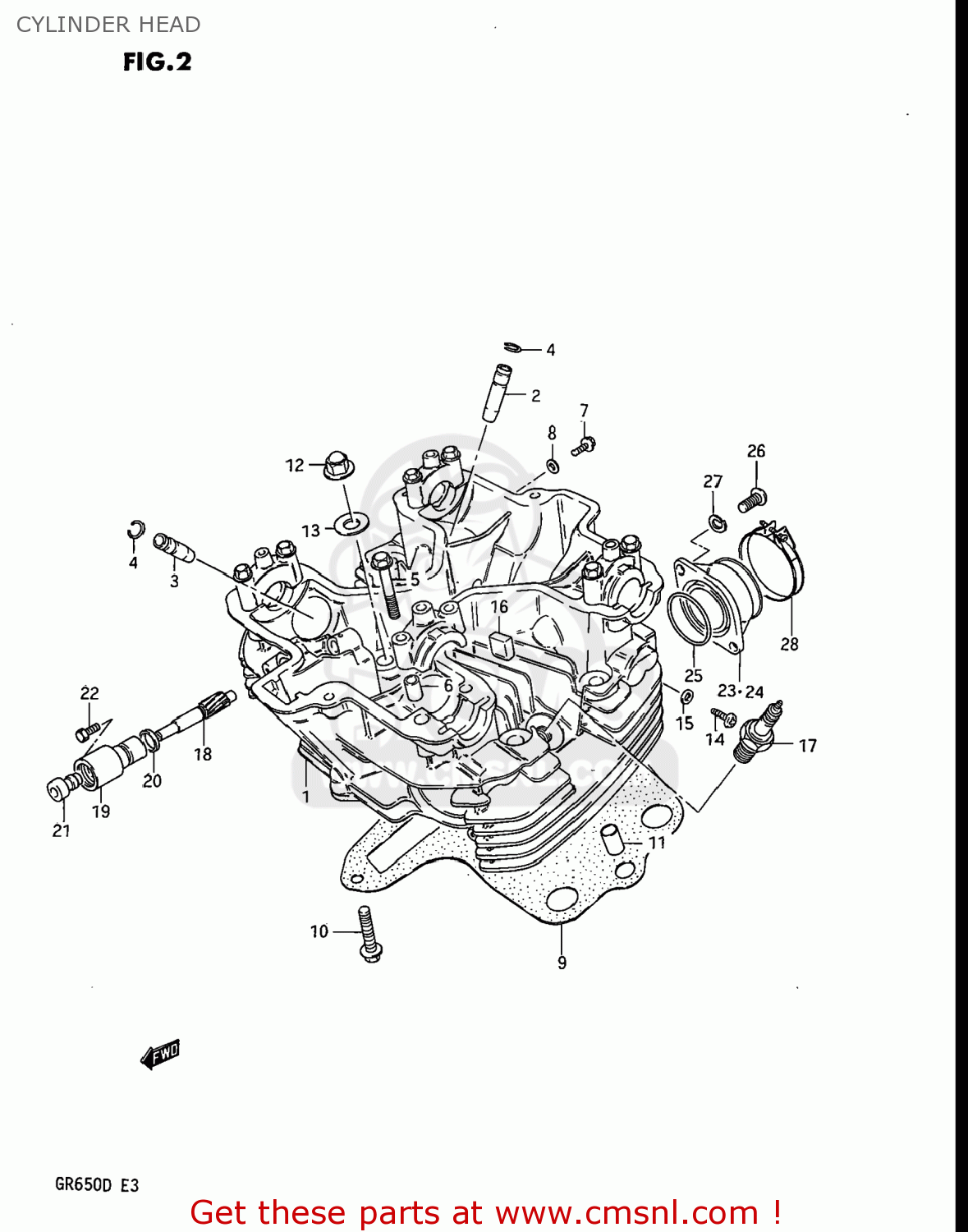

CYLINDER HEAD

ref

part #

description

quantity

1

1110015501
ref: 1

HEAD,CYLINDER

€ 1,000.00

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306071
ref: 5

BOLT(6X39)

€ 2.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

0151706125
ref: 7
01550-0612A

BOLT 6X12

€ 2.50

8

0916806009
ref: 8
09168-06023

GASKET (NAS)

€ 2.00

9

1114115501
ref: 9
11141-15502

GASKET,CYLINDER HEAD

€ 43.50

10

0151706255
ref: 10
01550-0625A

BOLT

€ 2.50

11

0421111189
ref: 11

PIN

€ 2.00

12

0915910026
ref: 12

NUT

€ 6.00

13

0916810029
ref: 13
09168-10030

GASKET (NAS)

€ 1.50

14

0211205085
ref: 14
02112-0508A

SCREW

€ 2.00

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16

1115139300
ref: 16

PAD,CYLINDER HEAD

€ 0.00

17-1

0948200144
ref: 17-1

SPARK PLUG D8EA

€ 3.50

17-2

0948200145
ref: 17-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

18

2643145001
ref: 18
26431-45002

GEAR,TACHOMETER DRIVEN

€ 43.00

19

2644115500
ref: 19
26441-49000

SLEEVE

€ 18.00

20

2645145000A
ref: 20

SEAL,TACHOMETER DRIVEN

€ 4.50

21

0928905002
ref: 21

SEAL,OIL(5X12X8)

€ 11.00

22

0912805101
ref: 22

SCREW(5X12)

€ 1.50

23

1311015500
ref: 23

PIPE,INTAKE,R

€ 43.00

24

1312015500
ref: 24

PIPE,INTAKE,L

€ 33.00

25

0928040003
ref: 25
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50

26

0211206208
ref: 26
02112-06207

SCREW

€ 2.00

27

0832121068
ref: 27
08321-01067

LOCK WASHER

€ 2.50

28

0940252306
ref: 28

CLAMP

€ 6.00

all assemblies
